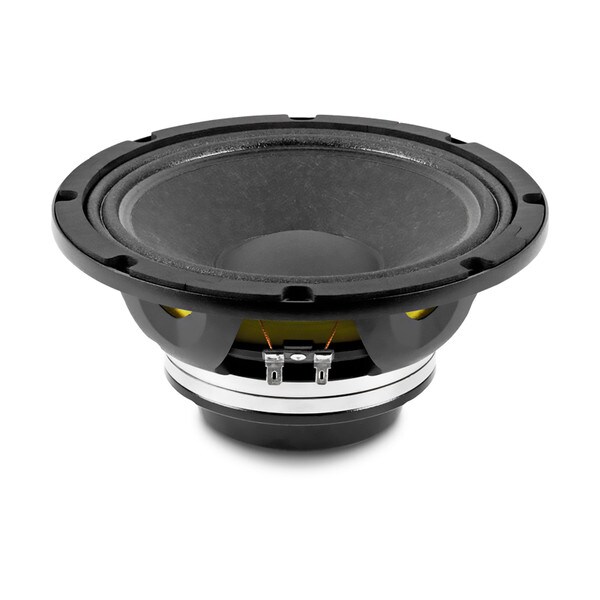

NEW Beyma 8MC500Nd MC Series 8" Neo Woofer 8 Ohm

BeymaPart # 253-011
Model: 8MC500Nd

The Beyma 8MC500Nd is an 8" mid-bass driver engineered for professional audio systems that demand high power handling and efficiency in a compact design. Its neodymium magnet and advanced Maltcross cooling technologies make it ideal for applications such as line arrays and portable PA systems where performance and portability are critical.

Key Features

  • Exclusive Maltcross cooling system reduces power compression​
  • Aluminum demodulating ring minimizes distortion​
  • ±5 mm Xmax allows for extended linear excursion​
  • Weatherproof cone with dual-side treatment for increased durability​
  • 42 mm peak-to-peak excursion before damage ensures mechanical reliability​
  • Optimized for bass or mid-bass high-performance audio systems​
Similar items that may interest you:
B&C 8NDL64 8" Neodymium Woofer
Price: $176.58Part # 294-6012
Eminence Deltalite II 2510 Neo 10" Speaker Driver
Price: $179.99Part # 290-591
See all items in Woofers
NEW $243.75
+ FREE SHIPPING
MSRP: $325.00
Save $81.25 (25%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when Beyma 8MC500Nd MC Series 8" Neo Woofer 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Beyma 8MC500Nd MC Series 8" Neo Woofer 8 Ohm

8MC500Nd MC Series 8" Neo Woofer 8 ohm

The 8MC500Nd's 500 W AES power handling and 98 dB sensitivity make it suitable for demanding applications, delivering clear and dynamic sound output. Its 2.5" DUO double-layer in/out copper voice coil enhances thermal stability, contributing to consistent performance over time. The exclusive Maltcross cooling system effectively dissipates heat, reducing power compression and maintaining consistent output during prolonged use. An aluminum demodulating ring is incorporated to minimize distortion, resulting in cleaner sound reproduction. The driver features an Xmax of ±5 mm, allowing for extended linear cone movement and deeper bass response without distortion. Its weatherproof cone, treated on both sides, enhances durability and resistance to environmental factors, making it suitable for both indoor and outdoor applications. With a peak-to-peak excursion before damage of 42 mm, the 8MC500Nd can withstand significant mechanical stress, ensuring longevity even under high-demand conditions. Optimized for use in bass or mid-bass high-performance audio systems, this transducer offers versatility and high performance for professional audio setups.​

Solid Line: On Axis
Dotted Line: Off Axis

At Beyma, the challenge of heat dissipation is met with a clear objective: ensuring our speakers consistently deliver optimal performance within the system, maximizing total sound pressure level (SPL) and maintaining stability.​

It's widely recognized that a system's overall SPL decreases over time due to power compression effects in the speakers. Typically, larger voice coil diameters correlate with higher power capacity; however, this also necessitates bigger motor structures to achieve high total output from the transducer.​

Beyma's Maltcross cooling technology presents multiple solutions to achieve this goal. It enables the woofer to handle higher power levels with a given coil diameter, allowing for designs with smaller coils and motor structures. This reduction in size decreases weight, increases sensitivity, and maintains adequate power handling for specific applications, resulting in a total SPL comparable to that of drivers with larger motor structures.

Maltcross technology incorporates a forced convection circuit within the driver's core, effectively lowering the coil's operating temperature. Additionally, it functions as a demodulation ring, linearizing the transducer's inductance.

Product Details

BrandBeyma
Model8MC500Nd
Part Number253-011
UPC8435469042025
Unit of MeasureEach
Weight6.8

Product Specifications

Nominal Diameter8"
Bolt Circle Diameter7.7
Power Handling (RMS)500 Watts
Power Handling (MAX)1000 Watts
Impedance8Ω
Frequency Response80 to 6,000Hz
Sensitivity98dB 2.83V/1m
Voice Coil Diameter2.5"

Thiele-Small Parameters

Resonant Frequency (Fs)69Hz
DC Resistance (Re)5.3Ω
Voice Coil Inductance (Le)0.5mH
Mechanical Q (Qms)2.6
Electromagnetic Q (Qes)0.19
Total Q (Qts)0.18
Compliance Equivalent Volume (Vas)0.56ft³
Mechanical Compliance of Suspension (Cms)231mm/N
BL Product (BL)16.7T·m
Diaphragm Mass Inc. Airload (Mms)0.023g
Maximum Linear Excursion (Xmax)5mm
Surface Area of Cone (Sd)0.022cm²

Materials of Construction

Cone MaterialPaper-Treated Paper
Voice Coil Wire MaterialCopper
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter8.3"
Baffle Cutout Diameter7.2"
Depth3.9"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.0234ft³
Sealed F3331.4Hz
Vented Volume0.047ft³
Vented F3216.9Hz
