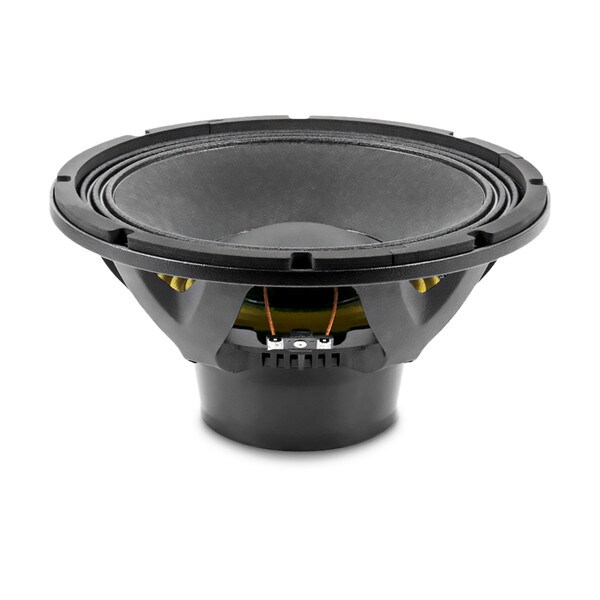

NEW Beyma 10MC700Nd MC Series 10" Neo Woofer 8 Ohm

Name: Beyma 10MC700Nd MC Series 10" Neo Woofer 8 Ohm
Brand: Beyma
SKU: 253-013
Price: 334.5 USD
Availability: InStock

Beyma

Part #253-013

NEW Beyma 10MC700Nd MC Series 10" Neo Woofer 8 Ohm

Beyma

Part #253-013

Model: 10MC700Nd

8 in. Neo. 300W 8 in. Neo. 500W 10 in. Ferrite 10 in. Neodymium 12 in. Ferrite 12 in. Neodymium 15 in. Ferrite 15 in. Neodymium

The Beyma 10MC700Nd is a 10" mid-bass driver designed for professional audio systems that require high power handling and efficiency in a lightweight package. Its neodymium magnet and advanced Maltcross cooling technology make it ideal for high-performance applications such as line arrays and compact PA systems.

Key Features

3" DUO double-layer in/out copper voice coil enhances thermal stability
Exclusive Maltcross cooling system reduces power compression
Aluminum demodulating ring minimizes distortion
±7 mm Xmax allows for extended linear excursion
Weatherproof cone with dual-side treatment for increased durability
48 mm peak-to-peak excursion before damage ensures mechanical reliability
Optimized for bass or mid-bass high-performance audio systems

Frequently Bought Together

This Product: Beyma 10MC700Nd MC Series 10" Neo Woofer 8 Ohm	$334.50
Beyma CP-21/F Compression Tweeter 8 Ohm	$114.00
Parts Express 8" Waffle Style Black Steel Speaker Grille with Rubber Edge	$3.29
Parts Express #8 x 1" Deep Thread Pan Head Screws Black 100 Pcs.	$7.69

Total Price: $459.48

This Product:Beyma 10MC700Nd MC Series 10" Neo Woofer 8 Ohm$334.50

Beyma CP-21/F Compression Tweeter 8 Ohm$114.00

Parts Express 8" Waffle Style Black Steel Speaker Grille with Rubber Edge$3.29

Parts Express #8 x 1" Deep Thread Pan Head Screws Black 100 Pcs.$7.69

4 ItemsTotal Price: $459.48

Overview

Beyma 10MC700Nd MC Series 10" Neo Woofer 8 Ohm

10MC700Nd MC Series 10" Neo Woofer 8 Ohm

The 10MC700Nd's 700 W AES power handling and 97 dB sensitivity make it suitable for demanding audio applications, delivering clear and dynamic sound output. Its 3" DUO double-layer in/out copper voice coil enhances thermal stability, contributing to consistent performance over time. The exclusive Maltcross cooling system effectively dissipates heat, reducing power compression and maintaining consistent output during prolonged use. An aluminum demodulating ring is incorporated to minimize distortion, resulting in cleaner sound reproduction. The driver features an Xmax of ±7 mm, allowing for extended linear cone movement and deeper bass response without distortion. Its weatherproof cone, treated on both sides, enhances durability and resistance to environmental factors, making it suitable for both indoor and outdoor applications. With a peak-to-peak excursion before damage of 48 mm, the 10MC700Nd can withstand significant mechanical stress, ensuring longevity even under high-demand conditions. Optimized for use in bass or mid-bass high-performance audio systems, this transducer offers versatility and high performance for professional audio setups.

Solid Line: On Axis
Dotted Line: Off Axis

At Beyma, the challenge of heat dissipation is met with a clear objective: ensuring our speakers consistently deliver optimal performance within the system, maximizing total sound pressure level (SPL) and maintaining stability.

It's widely recognized that a system's overall SPL decreases over time due to power compression effects in the speakers. Typically, larger voice coil diameters correlate with higher power capacity; however, this also necessitates bigger motor structures to achieve high total output from the transducer.

Beyma's Maltcross cooling technology presents multiple solutions to achieve this goal. It enables the woofer to handle higher power levels with a given coil diameter, allowing for designs with smaller coils and motor structures. This reduction in size decreases weight, increases sensitivity, and maintains adequate power handling for specific applications, resulting in a total SPL comparable to that of drivers with larger motor structures.

Maltcross technology incorporates a forced convection circuit within the driver's core, effectively lowering the coil's operating temperature. Additionally, it functions as a demodulation ring, linearizing the transducer's inductance.

Product Details
Brand	Beyma
Model	10MC700Nd
Part Number	253-013
UPC	8435469042506
Unit of Measure	Each
Weight	9

Product Specifications
Nominal Diameter	10"
Bolt Circle Diameter	9.6
Power Handling (RMS)	700 Watts
Power Handling (MAX)	1400 Watts
Impedance	8Ω
Frequency Response	65 to 4,000Hz
Sensitivity	97dB 2.83V/1m
Voice Coil Diameter	3"

Thiele-Small Parameters
Resonant Frequency (Fs)	63Hz
DC Resistance (Re)	5.2Ω
Voice Coil Inductance (Le)	1mH
Mechanical Q (Qms)	3.8
Electromagnetic Q (Qes)	0.24
Total Q (Qts)	0.22
Compliance Equivalent Volume (Vas)	0.71ft³
Mechanical Compliance of Suspension (Cms)	115mm/N
BL Product (BL)	21.8T·m
Diaphragm Mass Inc. Airload (Mms)	0.054g
Maximum Linear Excursion (Xmax)	7mm
Surface Area of Cone (Sd)	0.035cm²

Materials of Construction
Cone Material	Paper-Treated Paper
Voice Coil Wire Material	Copper
Basket / Frame Material	Cast Aluminum
Magnet Material	Neodymium

Mounting Information
Overall Outside Diameter	10.3"
Baffle Cutout Diameter	9"
Depth	5"
# Mounting Holes	8

Parts Express Staff Recommended Enclosure Volume
Sealed Volume	0.0492ft³
Sealed F3	237.3Hz
Vented Volume	0.107ft³
Vented F3	149.8Hz
