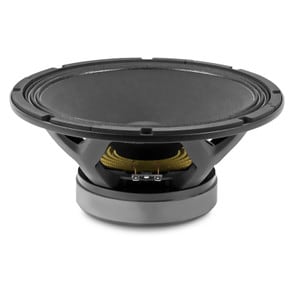

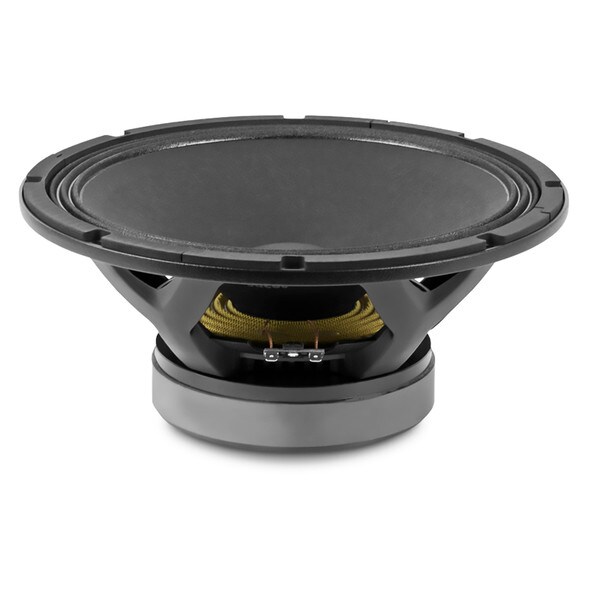

NEW Beyma 12MC500 MC Series 12" Subwoofer 8 Ohm

Beyma
Part #253-014

NEW Beyma 12MC500 MC Series 12" Subwoofer 8 Ohm

Beyma
Part #253-014
Model: 12MC500

The Beyma 12MC500 is a 12" mid-bass driver designed for professional audio systems that require high power handling and efficiency. Its robust construction and advanced Maltcross cooling technology make it ideal for 2- or 3-way PA systems and line arrays.

Key Features
  • Maltcross cooling system reduces power compression​
  • Aluminum demodulating ring minimizes distortion​
  • ±8 mm Xmax allows for extended linear excursion​
  • Weatherproof cone treatment on both sides for increased durability​
  • 40 mm peak-to-peak excursion before damage ensures mechanical reliability​
  • Optimized for 2- or 3-way PA systems and line arrays​
  • 2.5" copper wire voice coil enhances thermal stability​
Similar items that may interest you:
See all items in Subwoofer Drivers
NEW $191.25
+ FREE SHIPPING
MSRP: $255.00
Save $63.75 (25%)
Bulk Pricing
Order in the next 0 hr 27 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Beyma 12MC500 MC Series 12" Subwoofer 8 Ohm

12MC500 MC Series 12" Subwoofer 8 Ohm

The 12MC500's 500 W AES power handling and 98 dB sensitivity make it suitable for demanding audio applications, delivering clear and dynamic sound output. Its 2.5" copper wire voice coil enhances thermal stability, contributing to consistent performance over time. The Maltcross cooling system effectively dissipates heat, reducing power compression and maintaining consistent output during prolonged use. An aluminum demodulating ring is incorporated to minimize distortion, resulting in cleaner sound reproduction. The driver features an Xmax of ±8 mm, allowing for extended linear cone movement and deeper bass response without distortion. Its weatherproof cone, treated on both sides, enhances durability and resistance to environmental factors, making it suitable for both indoor and outdoor applications. With a peak-to-peak excursion before damage of 40 mm, the 12MC500 can withstand significant mechanical stress, ensuring longevity even under high-demand conditions. Optimized for use in 2-way or 3-way PA systems and line arrays, this transducer offers versatility and high performance for professional audio setups.

At Beyma, the challenge of heat dissipation is met with a clear objective: ensuring our speakers consistently deliver optimal performance within the system, maximizing total sound pressure level (SPL) and maintaining stability.​

It's widely recognized that a system's overall SPL decreases over time due to power compression effects in the speakers. Typically, larger voice coil diameters correlate with higher power capacity; however, this also necessitates bigger motor structures to achieve high total output from the transducer.​

Beyma's Maltcross cooling technology presents multiple solutions to achieve this goal. It enables the woofer to handle higher power levels with a given coil diameter, allowing for designs with smaller coils and motor structures. This reduction in size decreases weight, increases sensitivity, and maintains adequate power handling for specific applications, resulting in a total SPL comparable to that of drivers with larger motor structures.

Maltcross technology incorporates a forced convection circuit within the driver's core, effectively lowering the coil's operating temperature. Additionally, it functions as a demodulation ring, linearizing the transducer's inductance.

Product Details

BrandBeyma
Model12MC500
Part Number253-014
UPC8435469043046
Unit of MeasureEach
Weight14.3

Product Specifications

Nominal Diameter12"
Bolt Circle Diameter11.6
Power Handling (RMS)500 Watts
Power Handling (MAX)1000 Watts
Impedance8Ω
Frequency Response65 to 5,000Hz
Sensitivity98dB 2.83V/1m
Voice Coil Diameter2.5"

Thiele-Small Parameters

Resonant Frequency (Fs)57Hz
DC Resistance (Re)5.6Ω
Voice Coil Inductance (Le)0.7mH
Mechanical Q (Qms)7.8
Electromagnetic Q (Qes)0.35
Total Q (Qts)0.34
Compliance Equivalent Volume (Vas)2.01ft³
Mechanical Compliance of Suspension (Cms)132mm/N
BL Product (BL)18.3T·m
Diaphragm Mass Inc. Airload (Mms)0.059g
Maximum Linear Excursion (Xmax)8mm
Surface Area of Cone (Sd)0.055cm²

Materials of Construction

Cone MaterialPaper-Treated Paper
Voice Coil Wire MaterialCopper
Basket / Frame MaterialCast Aluminum

Mounting Information

Overall Outside Diameter12.3"
Baffle Cutout Diameter10.9"
Depth5.5"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.339ft³
Sealed F3144.8Hz
Vented Volume0.847ft³
Vented F384.28Hz
