• Home
  • B&C 12FW76 12" Professional Woofer 8 Ohm

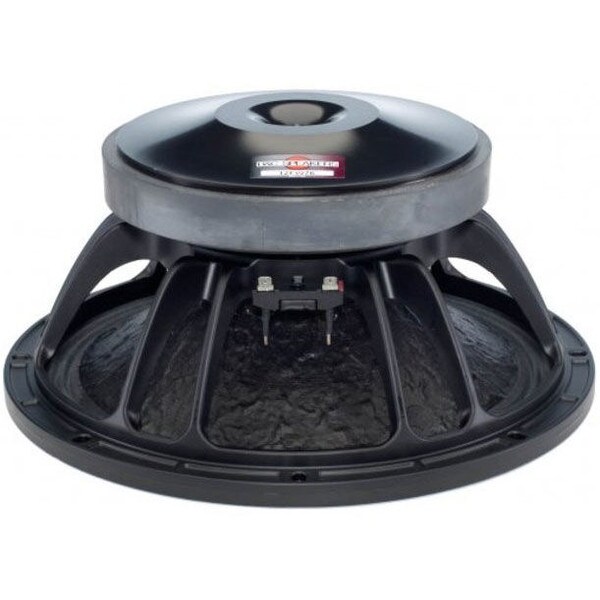

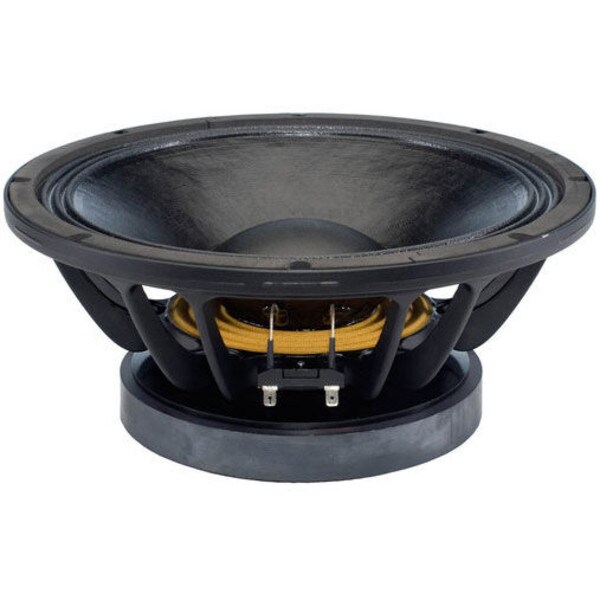

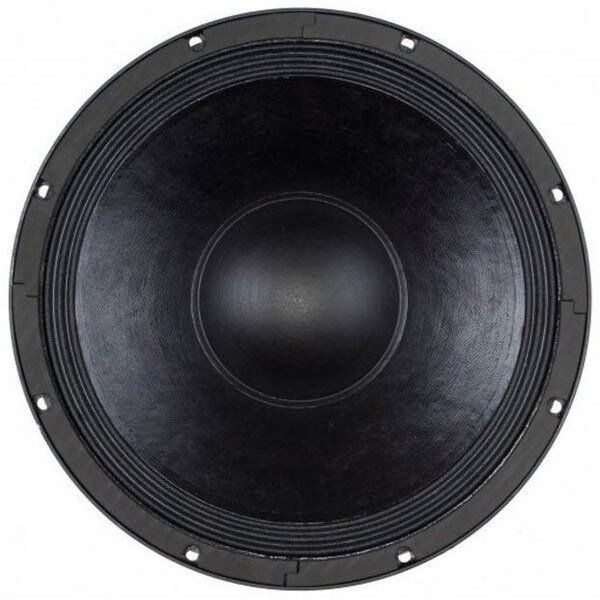

B&C 12FW76 12" Professional Woofer 8 Ohm

B&C Speakers
Part #294-5951

B&C 12FW76 12" Professional Woofer 8 Ohm

B&C Speakers
Part #294-5951
Model: 12FW76
The B&C Speakers 12FW76 12" pro audio speaker features a die cast frame, powerful ceramic ferrite magnet, and 3.0" copper voice coil.
Key Features
  • Waterproof cone treatment and double half-roll cone surround
  • Aluminum demodulating ring reduces distortion
  • 3" copper voice coil wound on fiberglass former for hi-temp performance
  • 100 dB 1W/1m sensitivity
  • 1,000 watts continuous program power rating makes high acoustical output
  • Excellent performance in 2-way or 3-way systems
Similar items that may interest you:
Your Price: $220.92
+ FREE SHIPPING
MSRP: $368.20
Save $147.28 (40%)
Bulk Pricing
Ships next business day. Details

8In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

B&C 12FW76 12" Professional Woofer 8 Ohm

Great power handling and very smooth response to 3 kHz make the B&C 12FW76 12" speaker ideal for 2-way PA stage systems, or in combination with a sub for a high performance 3-way rig. The 12FW76 provides great performance when installed in sealed, vented, or horn-loaded speaker enclosures.

Product Details

BrandB&C Speakers
Model12FW76
Part Number294-5951
UPC848864009520
Unit of MeasureEach
Weight20.9

Product Specifications

Nominal Diameter12"
Bolt Circle Diameter11.7
Power Handling (RMS)1000 Watts
Impedance
Frequency Response55 to 3,000Hz
Sensitivity100dB 2.83V/1m
Voice Coil Diameter3"

Thiele-Small Parameters

Resonant Frequency (Fs)54Hz
DC Resistance (Re)
Voice Coil Inductance (Le)1.4mH
Mechanical Q (Qms)3.8
Electromagnetic Q (Qes)0.18
Total Q (Qts)0.18
Compliance Equivalent Volume (Vas)1.6ft³
BL Product (BL)26.4T·m
Diaphragm Mass Inc. Airload (Mms)75g
Maximum Linear Excursion (Xmax)7mm
Surface Area of Cone (Sd)522cm²

Materials of Construction

Cone MaterialCoated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter12.4"
Baffle Cutout Diameter11.1"
Depth5.7"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Vented Volume1.25ft³
Vented F356.2Hz
