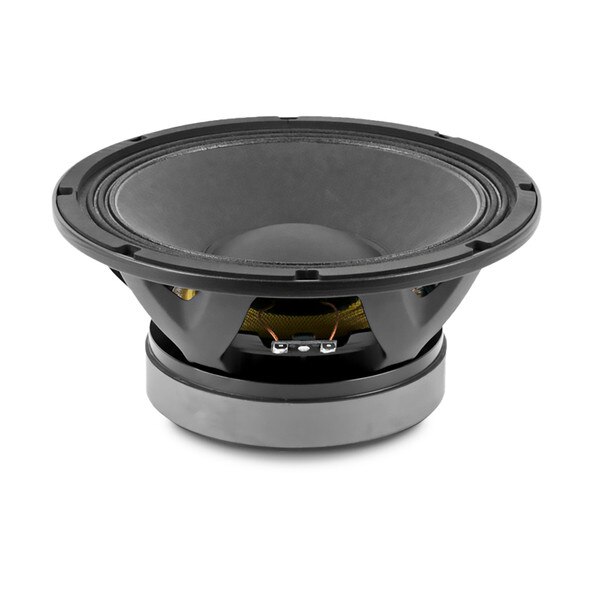

NEW Beyma 10MC500 MC Series 10" Woofer 8 Ohm

BeymaPart # 253-012
Model: 10MC500

The Beyma 10MC500 is a 10" mid-bass driver engineered for professional audio systems requiring high power handling and efficiency in a compact form factor. Its robust construction and advanced Maltcross cooling technology make it an excellent choice for 2-way or 3-way PA systems and line arrays.

Key Features

  • Maltcross cooling system reduces power compression​
  • Aluminum demodulating ring minimizes distortion​
  • ±8 mm Xmax allows for extended linear excursion​
  • Weatherproof cone with dual-side treatment for increased durability​
  • 40 mm peak-to-peak excursion before damage ensures mechanical reliability​
  • Optimized for 2-way or 3-way PA systems and line arrays​
  • 2.5" copper voice coil enhances thermal stability​
Similar items that may interest you:
B&C 10PLB76 10" Woofer
Price: $246.36Part # 294-659
See all items in Woofers
NEW $181.50
+ FREE SHIPPING
MSRP: $242.00
Save $60.50 (25%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when Beyma 10MC500 MC Series 10" Woofer 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Beyma 10MC500 MC Series 10" Woofer 8 Ohm

10MC500 MC Series 10" Woofer 8 Ohm

The 10MC500's 500 W AES power handling and 97 dB sensitivity make it suitable for demanding audio applications, delivering clear and dynamic sound output. Its 2.5" copper voice coil enhances thermal stability, contributing to consistent performance over time. The Maltcross cooling system effectively dissipates heat, reducing power compression and maintaining consistent output during prolonged use. An aluminum demodulating ring is incorporated to minimize distortion, resulting in cleaner sound reproduction. The driver features an Xmax of ±8 mm, allowing for extended linear cone movement and deeper bass response without distortion. Its weatherproof cone, treated on both sides, enhances durability and resistance to environmental factors, making it suitable for both indoor and outdoor applications. With a peak-to-peak excursion before damage of 40 mm, the 10MC500 can withstand significant mechanical stress, ensuring longevity even under high-demand conditions. Optimized for use in 2-way or 3-way PA systems and line arrays, this transducer offers versatility and high performance for professional setups.​

At Beyma, the challenge of heat dissipation is met with a clear objective: ensuring our speakers consistently deliver optimal performance within the system, maximizing total sound pressure level (SPL) and maintaining stability.​

It's widely recognized that a system's overall SPL decreases over time due to power compression effects in the speakers. Typically, larger voice coil diameters correlate with higher power capacity; however, this also necessitates bigger motor structures to achieve high total output from the transducer.​

Beyma's Maltcross cooling technology presents multiple solutions to achieve this goal. It enables the woofer to handle higher power levels with a given coil diameter, allowing for designs with smaller coils and motor structures. This reduction in size decreases weight, increases sensitivity, and maintains adequate power handling for specific applications, resulting in a total SPL comparable to that of drivers with larger motor structures.

Maltcross technology incorporates a forced convection circuit within the driver's core, effectively lowering the coil's operating temperature. Additionally, it functions as a demodulation ring, linearizing the transducer's inductance.

Product Details

BrandBeyma
Model10MC500
Part Number253-012
UPC8435469042445
Unit of MeasureEach
Weight13.4

Product Specifications

Nominal Diameter10"
Bolt Circle Diameter9.6
Power Handling (RMS)500 Watts
Power Handling (MAX)1000 Watts
Impedance8Ω
Frequency Response70 to 5,000Hz
Sensitivity97dB 2.83V/1m
Voice Coil Diameter2.5"

Thiele-Small Parameters

Resonant Frequency (Fs)65Hz
DC Resistance (Re)5.6Ω
Voice Coil Inductance (Le)1mH
Mechanical Q (Qms)7.5
Electromagnetic Q (Qes)0.3
Total Q (Qts)0.29
Compliance Equivalent Volume (Vas)0.85ft³
Mechanical Compliance of Suspension (Cms)136mm/N
BL Product (BL)18.3T·m
Diaphragm Mass Inc. Airload (Mms)0.044g
Maximum Linear Excursion (Xmax)8mm
Surface Area of Cone (Sd)0.035cm²

Materials of Construction

Cone MaterialPaper-Treated Paper
Voice Coil Wire MaterialCopper
Basket / Frame MaterialCast Aluminum

Mounting Information

Overall Outside Diameter10.3"
Baffle Cutout Diameter9"
Depth4.9"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.101ft³
Sealed F3191.7Hz
Vented Volume0.233ft³
Vented F3117Hz
