B&C 10PLB76 10" Woofer

B&C SpeakersPart # 294-659
Model: 10PLB76
Offering high power handling with excellent efficiency and solid bass output, the B&C 10PL76 10" speaker is a serious pro audio transducer.

Key Features

  • 800 watt continuous program power
  • 3" aluminum voice coil
  • High Xmax for more bass punch
  • 98 dB 1w/1m sensitivity
  • Aluminum demodulation ring reduces distortion
Similar items that may interest you:
Eminence Kappa Pro-10A 10" Cast Frame Driver
Price: $164.99Part # 290-426
Beyma 10G40 G40 Series 10" Subwoofer 8 Ohm
Price: $175.50Part # 253-004
See all items in Pro Woofers, Subwoofers & Midrange Speakers
Your Price: $246.36
+ FREE SHIPPING
MSRP: $410.60
Save $164.24 (40%)
Bulk Pricing
Only 1 In Stock More due on 7/8/2025
Get Notified When Available

We'll send you an email when B&C 10PLB76 10" Woofer is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

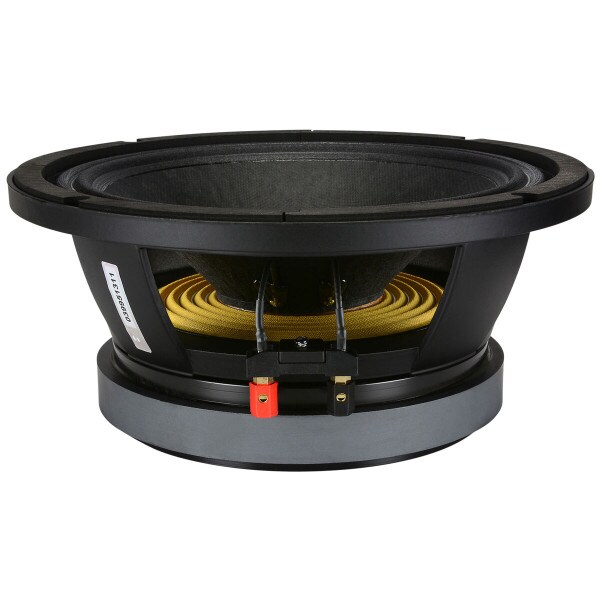

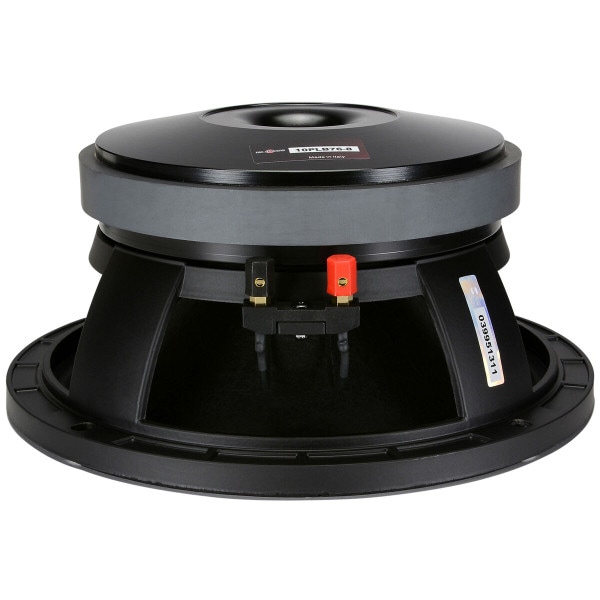

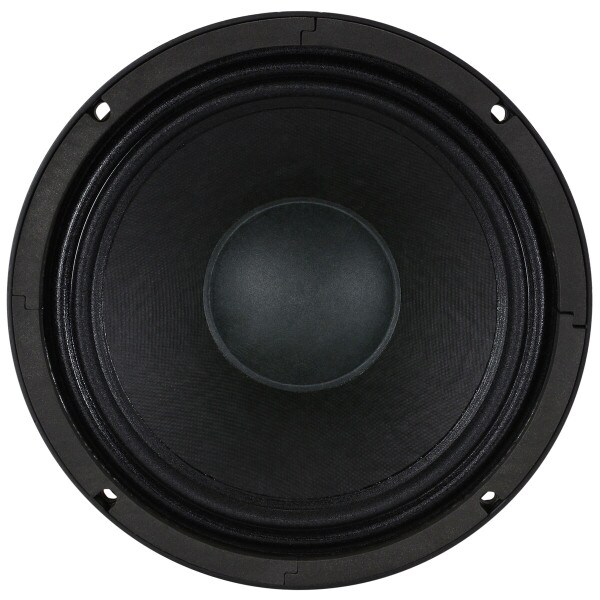

B&C 10PLB76 10" Woofer

The B&C Speakers 10PLB76 is a rugged 10" woofer that combines high power handling and prodigious SPL output with low distortion and an extended bass response. The driver's aluminum voice coil on a fiberglass former contributes to the driver's efficiency, and an aluminum shorting ring in the magnetic gap reduces distortion. The 10PLB76 is great for horn loaded and direct radiator applications.

Product Details

BrandB&C Speakers
Model10PLB76
Part Number294-659
UPC844632002076
Unit of MeasureEach
Weight16.1

Product Specifications

Nominal Diameter10"
Power Handling (RMS)800 Watts
Impedance
Frequency Response50 to 2,500Hz
Sensitivity98dB 2.83V/1m
Voice Coil Diameter3"

Thiele-Small Parameters

Resonant Frequency (Fs)52Hz
DC Resistance (Re)4.8Ω
Voice Coil Inductance (Le)0.32mH
Mechanical Q (Qms)3.4
Electromagnetic Q (Qes)0.2
Total Q (Qts)0.19
Compliance Equivalent Volume (Vas)1.1ft³
BL Product (BL)18.4T·m
Diaphragm Mass Inc. Airload (Mms)43g
Maximum Linear Excursion (Xmax)6mm
Surface Area of Cone (Sd)320cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialAluminum
Voice Coil FormerFiberglass

Mounting Information

Overall Outside Diameter10.3"
Baffle Cutout Diameter8.8"
Depth4.9"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Vented Volume0.63ft³
Vented F359.6Hz
