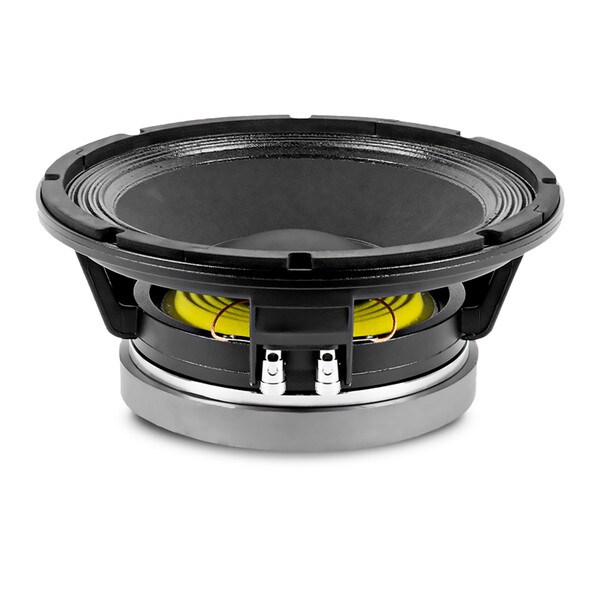

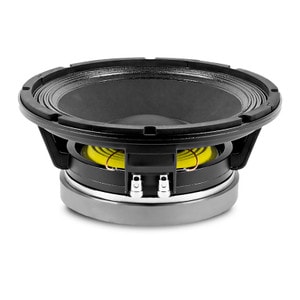

NEW Beyma 10G40 G40 Series 10" Subwoofer 8 Ohm

Beyma
Part #253-004

NEW Beyma 10G40 G40 Series 10" Subwoofer 8 Ohm

Beyma
Part #253-004
Model: 10G40

The Beyma 10G40 is a 10" low-frequency transducer built for high-efficiency applications. With a strong motor structure and extended excursion capability, it offers powerful bass response optimized for bass-reflex cabinets.

Key Features
  • Rated to handle 400 W AES for high-output sound systems
  • Delivers 95 dB sensitivity
  • 3" copper voice coil on polyimide fiberglass former for thermal durability
  • Long linear travel with ±7 mm Xmax for distortion-free low end
  • Supports 28 mm peak excursion before mechanical failure
  • Engineered for use in compact bass-reflex enclosures
Similar items that may interest you:
See all items in Subwoofer Drivers
NEW $175.50
+ FREE SHIPPING
MSRP: $234.00
Save $58.50 (25%)
Bulk Pricing
Order in the next 2 hr 18 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Beyma 10G40 G40 Series 10" Subwoofer 8 Ohm

10G40 G40 Series 10" Subwoofer 8 Ohm

The 10G40's 400 W AES power handling ensures it can manage substantial input levels, providing reliable performance in demanding audio environments. Its sensitivity of 95 dB (1W/1m) allows for efficient conversion of electrical signals into clear and dynamic sound output. The 3" copper voice coil, constructed with a polyimide fiberglass former, enhances thermal stability and durability, contributing to consistent performance over time. The transducer's extended controlled displacement, with an Xmax of ±7 mm, allows for greater cone movement, enabling the driver to produce deeper bass frequencies without distortion. With a peak-to-peak excursion before damage of 28 mm, the 10G40 can handle significant mechanical stress, ensuring longevity even under high-demand conditions. Specifically designed for woofer applications, this transducer excels in delivering low-frequency sound reproduction with clarity and depth. Its optimization for small bass-reflex cabinets makes it an ideal choice for compact audio systems where space is limited but high-quality bass performance is still demanded. ​

Product Details

BrandBeyma
Model10G40
Part Number253-004
UPC8435469042353
Unit of MeasureEach
Weight13.4

Product Specifications

Nominal Diameter10"
Bolt Circle Diameter9.6
Power Handling (RMS)400 Watts
Power Handling (MAX)800 Watts
Impedance8Ω
Frequency Response45 to 4,000Hz
Sensitivity95dB 2.83V/1m
Voice Coil Diameter3"

Thiele-Small Parameters

Resonant Frequency (Fs)45Hz
DC Resistance (Re)6.2Ω
Voice Coil Inductance (Le)0.6mH
Mechanical Q (Qms)7.1
Electromagnetic Q (Qes)0.32
Total Q (Qts)0.3
Compliance Equivalent Volume (Vas)1.73ft³
Mechanical Compliance of Suspension (Cms)241mm/N
BL Product (BL)17T·m
Diaphragm Mass Inc. Airload (Mms)0.052g
Maximum Linear Excursion (Xmax)7mm
Surface Area of Cone (Sd)0.038cm²

Materials of Construction

Voice Coil Wire MaterialCopper
Voice Coil FormerKapton® / Polyimide

Mounting Information

Overall Outside Diameter10.3"
Baffle Cutout Diameter9.0"
Depth4.6"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.237ft³
Sealed F3125Hz
Vented Volume0.549ft³
Vented F375.66Hz
