NEW Beyma 8MC300Nd MC Series 8" Neo Woofer 8 Ohm

Beyma
Part #253-010

NEW Beyma 8MC300Nd MC Series 8" Neo Woofer 8 Ohm

Beyma
Part #253-010
Model: 8MC300Nd

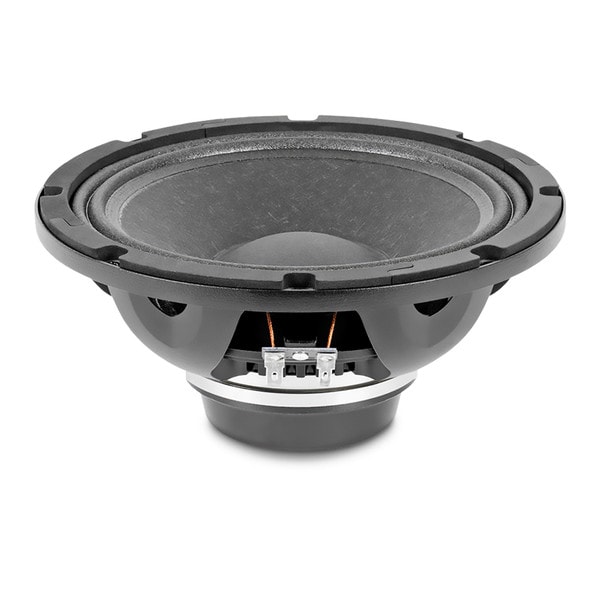

The Beyma 8MC300Nd is an 8" mid-bass driver crafted for professional audio systems that demand high output and efficiency in a compact form. Its lightweight neodymium motor and advanced Maltcross cooling technology make it an excellent choice for portable PA setups and line arrays where space and weight are critical.

Key Features
  • Exclusive Maltcross cooling system reduces power compression​
  • Aluminum demodulating ring minimizes distortion​
  • ±6 mm Xmax allows for extended linear excursion​
  • Weatherproof cone with dual-side treatment for durability​
  • 35 mm peak-to-peak excursion before damage for mechanical reliability​
  • Optimized for 2- or 3-way PA systems and line arrays​
  • 2" copper voice coil for reliable power handling​
Similar items that may interest you:
See all items in Woofers
NEW $243.75
+ FREE SHIPPING
MSRP: $289.00
Save $45.25 (16%)
Bulk Pricing
Order in the next 0 hr 28 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Beyma 8MC300Nd MC Series 8" Neo Woofer 8 Ohm

8MC300Nd MC Series 8" Neo Woofer 8 Ohm

The 8MC300Nd delivers substantial power handling with 300 W AES and 600 W program power, making it suitable for demanding audio applications. Its 96 dB sensitivity ensures that it efficiently converts amplifier power into acoustic output, providing clear and dynamic sound. The 2" copper voice coil offers reliable performance, while the exclusive Maltcross cooling system effectively dissipates heat, reducing power compression and maintaining consistent output during prolonged use. An aluminum demodulating ring is incorporated to minimize distortion, resulting in cleaner sound reproduction. The driver features an Xmax of ±6 mm, allowing for extended linear cone movement and deeper bass response without distortion. Its weatherproof cone, treated on both sides, enhances durability and resistance to environmental factors, making it suitable for both indoor and outdoor applications. With a peak-to-peak excursion before damage of 35 mm, the 8MC300Nd can withstand significant mechanical stress, ensuring longevity even under high-demand conditions. Optimized for use in 2- or 3-way PA systems and line arrays, this transducer offers versatility and high performance for professional audio setups.

Solid Line: On Axis
Dotted Line: Off Axis

At Beyma, the challenge of heat dissipation is met with a clear objective: ensuring our speakers consistently deliver optimal performance within the system, maximizing total sound pressure level (SPL) and maintaining stability.​

It's widely recognized that a system's overall SPL decreases over time due to power compression effects in the speakers. Typically, larger voice coil diameters correlate with higher power capacity; however, this also necessitates bigger motor structures to achieve high total output from the transducer.​

Beyma's Maltcross cooling technology presents multiple solutions to achieve this goal. It enables the woofer to handle higher power levels with a given coil diameter, allowing for designs with smaller coils and motor structures. This reduction in size decreases weight, increases sensitivity, and maintains adequate power handling for specific applications, resulting in a total SPL comparable to that of drivers with larger motor structures.

Maltcross technology incorporates a forced convection circuit within the driver's core, effectively lowering the coil's operating temperature. Additionally, it functions as a demodulation ring, linearizing the transducer's inductance.

Product Details

BrandBeyma
Model8MC300Nd
Part Number253-010
UPC8435469041998
Unit of MeasureEach
Weight4.9

Product Specifications

Nominal Diameter8"
Bolt Circle Diameter7.68
Power Handling (RMS)300 Watts
Power Handling (MAX)600 Watts
Impedance8Ω
Frequency Response80 to 4,000Hz
Sensitivity96dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)62Hz
DC Resistance (Re)6.1Ω
Voice Coil Inductance (Le)0.6mH
Mechanical Q (Qms)3.8
Electromagnetic Q (Qes)0.24
Total Q (Qts)0.22
Compliance Equivalent Volume (Vas)0.064ft³
Mechanical Compliance of Suspension (Cms)262mm/N
BL Product (BL)16T·m
Diaphragm Mass Inc. Airload (Mms)0.025g
Maximum Linear Excursion (Xmax)6mm
Surface Area of Cone (Sd)0.022cm²

Materials of Construction

Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter8.34"
Baffle Cutout Diameter7.16"
Depth3.8"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.0443ft³
Sealed F3233.6Hz
Vented Volume0.0961ft³
Vented F3147.4Hz
