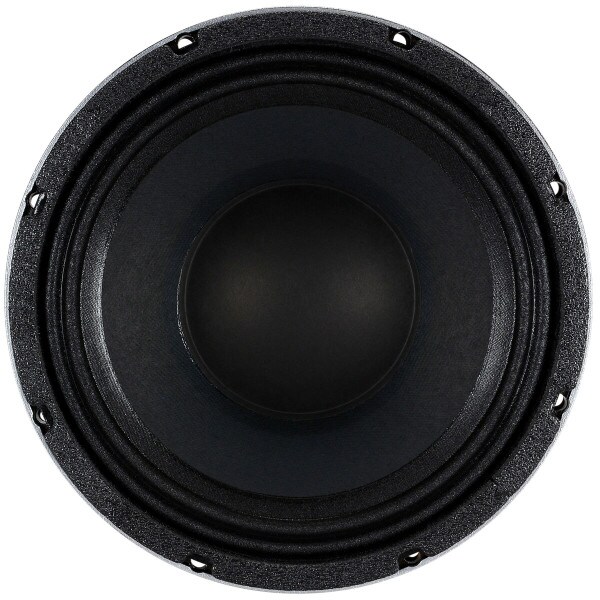

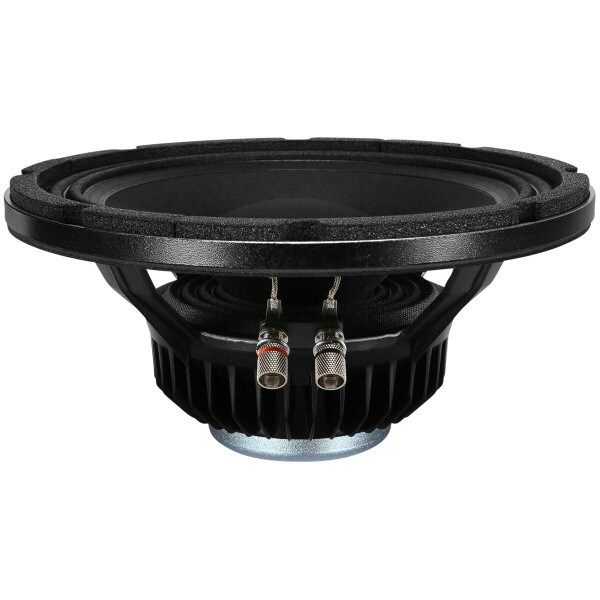

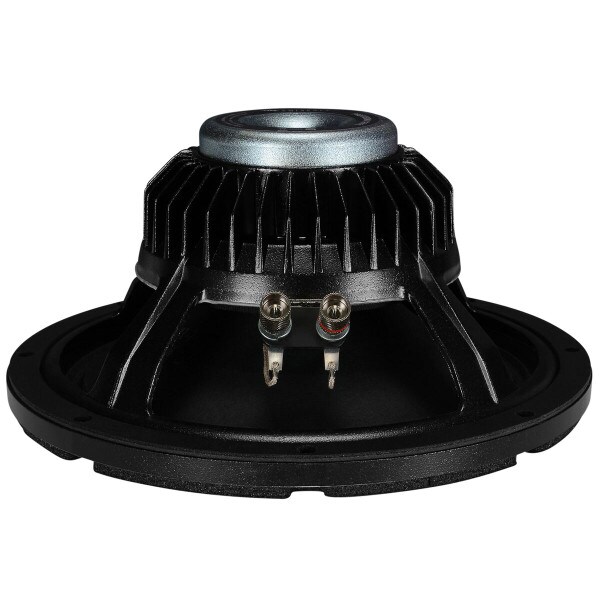

Eminence Deltalite II 2510 Neo 10" Speaker Driver

Eminence SpeakerPart # 290-591
Model: Deltalite II 2510
Lightweight and efficient, the neodymium-powered Eminence Deltalite II 2510 10" speaker is an excellent choice for pro PA and bass guitar applications.

Key Features

  • Neodymium magnet structure delivers all the performance without the weight
  • Die-cast aluminum basket/heatsink with vented core
  • Aluminum voice coil with polyimide former
  • Paper cone with solid composition paper dust cap and cloth cone edge
Similar items that may interest you:
B&C 10NW64 10" Neodymium Woofer
Price: $192.96Part # 294-679
See all items in Pro Woofers, Subwoofers & Midrange Speakers
Your Price: $179.99
+ FREE SHIPPING
MSRP: $229.99
Save $50.00 (22%)
Bulk Pricing
Only 1 In Stock More due any day
Get Notified When Available

We'll send you an email when Eminence Deltalite II 2510 Neo 10" Speaker Driver is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Eminence Deltalite II 2510 Neo 10" Speaker Driver

The Eminence Deltalite II 2510 cast frame 10" speaker is recommended for professional audio loudspeaker systems. It will provide great results as a mid/hi or full range component, or as a stage monitor woofer; also in bass guitar cabinets. The Deltalite II 2510 performs superbly when installed in sealed or vented speaker enclosures.

Product Details

BrandEminence Speaker
ModelDeltalite II 2510
Part Number290-591
UPC876358000609
Unit of MeasureEach
Weight5.7

Product Specifications

Nominal Diameter10"
Power Handling (RMS)250 Watts
Power Handling (MAX)500 Watts
Impedance8Ω
Frequency Response60 to 4,000Hz
Sensitivity97.3dB 2.83V/1m
Voice Coil Diameter2.5"

Thiele-Small Parameters

Resonant Frequency (Fs)53Hz
DC Resistance (Re)5.06Ω
Voice Coil Inductance (Le)0.4mH
Mechanical Q (Qms)5.76
Electromagnetic Q (Qes)0.45
Total Q (Qts)0.42
Compliance Equivalent Volume (Vas)1.85ft³
Mechanical Compliance of Suspension (Cms)0.3mm/N
BL Product (BL)10.6T·m
Diaphragm Mass Inc. Airload (Mms)31g
Maximum Linear Excursion (Xmax)4.2mm
Surface Area of Cone (Sd)350.1cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialAluminum
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter10.25"
Baffle Cutout Diameter9.15"
Depth4.9"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.75ft³
Sealed F3115Hz
Vented Volume1.8ft³
Vented F353Hz
