Eminence Deltalite II 2512 Neo 12" Speaker Driver

Name: Eminence Deltalite II 2512 Neo 12" Speaker Driver
Brand: Eminence Speaker
SKU: 290-593
Price: 194.99 USD
Availability: InStock
Rating: 4.5 (16 reviews)

Eminence SpeakerPart # 290-593

Model: Deltalite II 2512

Read 16 Reviews | 18 Questions, 48 Answers or

10 in.12 in.

Recommended for professional audio as a mid/high or full range and monitor driver, the Eminence Deltalite II 2512 12" speaker also delivers great performance in bass guitar rigs. Works well in sealed or vented enclosures.

Key Features

Neodymium magnet structure delivers all the performance without the weight

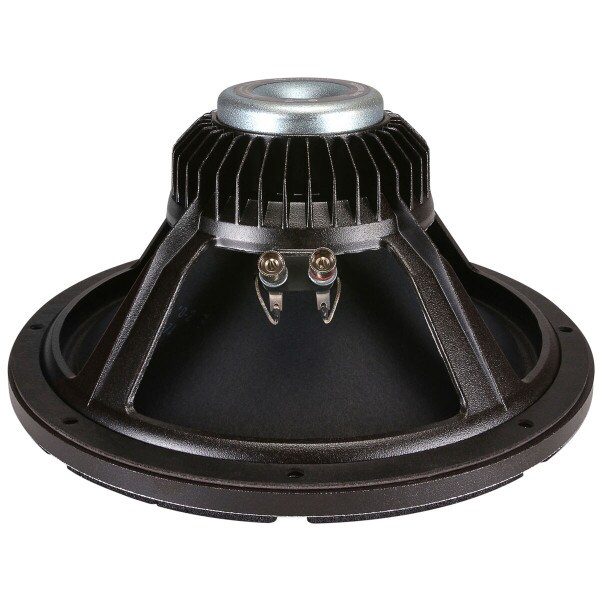

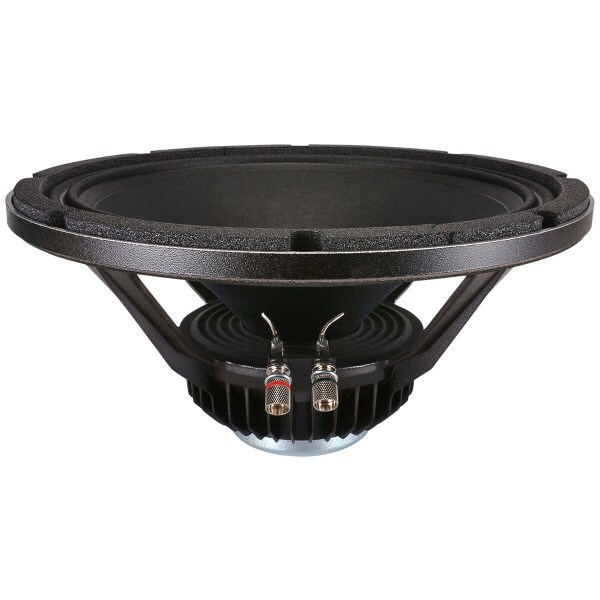

Die-cast aluminum basket/heatsink with vented core
Aluminum voice coil with polyimide former

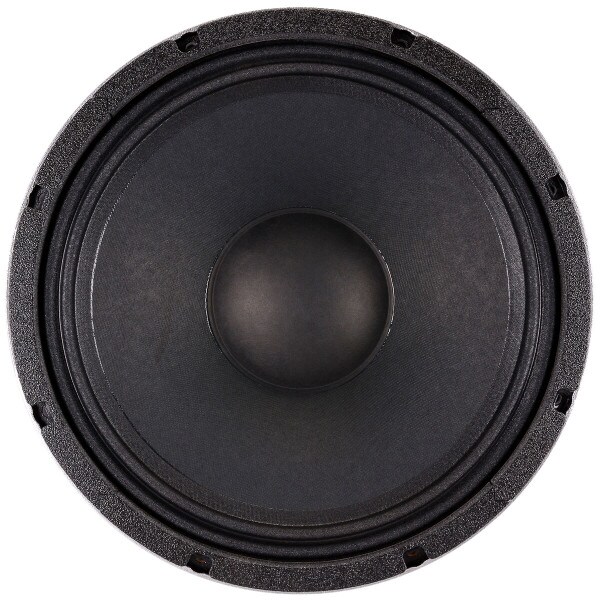

Paper cone with solid composition paper dust cap and cloth cone edge

Product Details

Brand

Eminence Speaker

Model

Deltalite II 2512

Part Number

290-593

UPC

876358000593

Unit of Measure

Each

Weight

6.8

Product Specifications

Nominal Diameter

12"

Power Handling (RMS)

250 Watts

Power Handling (MAX)

500 Watts

Impedance

8Ω

Frequency Response

58 to 4,300Hz

Sensitivity

99.9dB 2.83V/1m

Voice Coil Diameter

2.5"

Thiele-Small Parameters

Resonant Frequency (Fs)

44Hz

DC Resistance (Re)

5.17Ω

Voice Coil Inductance (Le)

0.43mH

Mechanical Q (Qms)

3.13

Electromagnetic Q (Qes)

0.45

Total Q (Qts)

0.41

Compliance Equivalent Volume (Vas)

4.76ft³

Mechanical Compliance of Suspension (Cms)

0.36mm/N

BL Product (BL)

11.3T·m

Diaphragm Mass Inc. Airload (Mms)

37g

Maximum Linear Excursion (Xmax)

4.9mm

Surface Area of Cone (Sd)

519.5cm²

Materials of Construction

Cone Material

Paper

Surround Material

Cloth

Voice Coil Wire Material

Aluminum

Voice Coil Former

Kapton® / Polyimide

Basket / Frame Material

Cast Aluminum

Magnet Material

Neodymium

Mounting Information

Overall Outside Diameter

12.38"

Baffle Cutout Diameter

11.06"

Depth

6.06"

# Mounting Holes

Parts Express Staff Recommended Enclosure Volume

Sealed Volume

1.5ft³

Sealed F3

95Hz

Vented Volume

3.8ft³

Vented F3

49Hz
