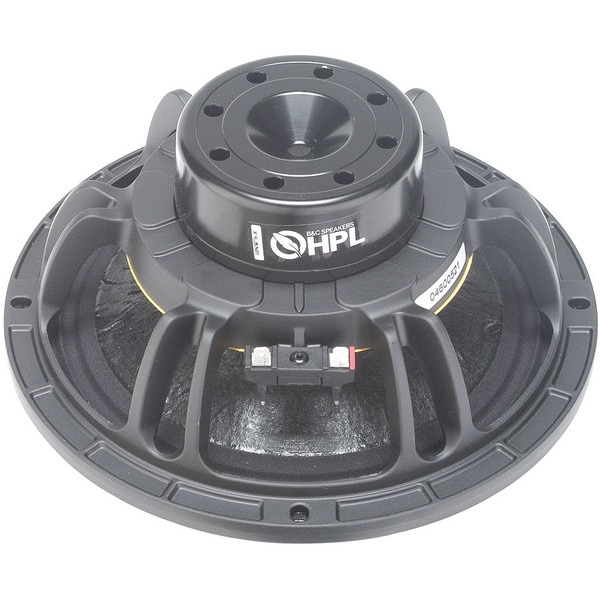

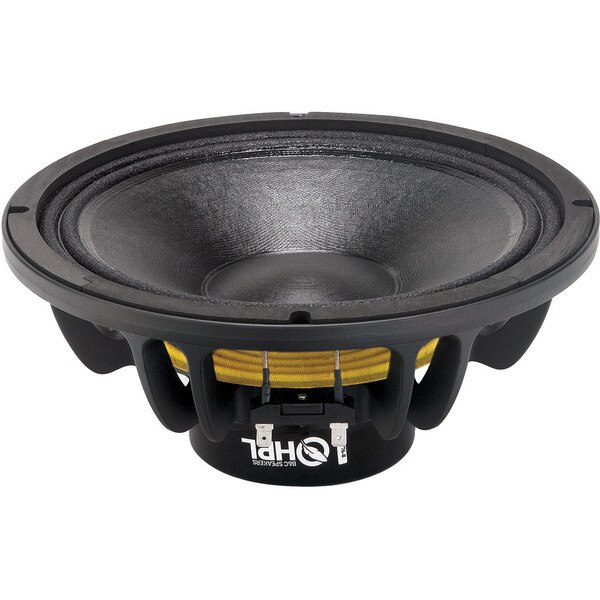

B&C 10NW64 10" Neodymium Woofer

B&C SpeakersPart # 294-679
Model: 10NW64
The lightweight (6.4 lb.) and efficient B&C 10NW64 10" neodymium woofer also excels in pro audio midbass applications.

Key Features

  • Stunning hi-fi clarity and detail, even at explosive pro concert levels
  • Neodymium magnet is light but powerful
  • Ventilated voice coil gap reduces power compression
  • Copper shorting cap on polepiece for extended HF response
  • 2.5" copper voice coil
  • 600 watt continuous program power
  • 96 dB 1w/1m sensitivity
Your Price: $207.60
+ FREE SHIPPING
MSRP: $346.00
Save $138.40 (40%)
Bulk Pricing
Only 2 In Stock
Get Notified When Available

We'll send you an email when B&C 10NW64 10" Neodymium Woofer is back in stock or available for preorder.

Order in the next 10 hr 5 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

B&C 10NW64 10" Neodymium Woofer

The B&C Speakers 10NW64 10" speaker is lightweight, powerful, and versatile. Its midrange efficiency and clarity make it a great choice for professional midbass or midrange applications, but its bass capabilities mark it as a dynamic, punchy woofer in compact 2-way speaker systems. The 10NW64 will deliver great performance in sealed, bass reflex, or horn loaded enclosures.

Product Details

BrandB&C Speakers
Model10NW64
Part Number294-679
UPC844632002250
Unit of MeasureEach
Weight7.7

Product Specifications

Nominal Diameter10"
Power Handling (RMS)600 Watts
Impedance
Frequency Response60 to 2,500Hz
Sensitivity96dB 2.83V/1m
Voice Coil Diameter2.5"

Thiele-Small Parameters

Resonant Frequency (Fs)59Hz
DC Resistance (Re)5.2Ω
Voice Coil Inductance (Le)0.65mH
Mechanical Q (Qms)4.3
Electromagnetic Q (Qes)0.27
Total Q (Qts)0.26
Compliance Equivalent Volume (Vas)0.78ft³
BL Product (BL)18.3T·m
Diaphragm Mass Inc. Airload (Mms)47g
Maximum Linear Excursion (Xmax)6mm
Surface Area of Cone (Sd)320cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter10.3"
Baffle Cutout Diameter8.8"
Depth4.4"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.45ft³
Sealed F3170.3Hz
Vented Volume0.63ft³
Vented F352.3Hz
