PRV Audio 8MB700FT Forte Series 8" Midbass Speaker 8 Ohm

PRV Audio
Part #294-3540

PRV Audio 8MB700FT Forte Series 8" Midbass Speaker 8 Ohm

PRV Audio
Part #294-3540
Model: 8MB700FT

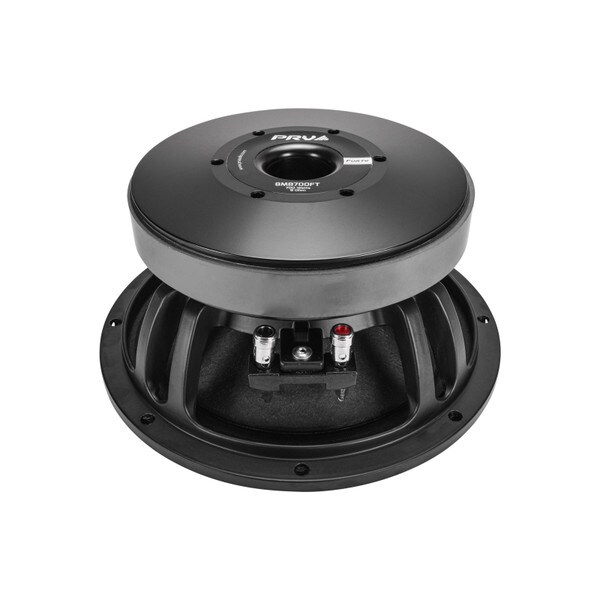

The PRV Audio 8MB700FT is an 8" midbass loudspeaker built for strong, detailed output in demanding audio systems. Its efficient design and rugged construction make it well-suited for professional sound reinforcement. Compact and powerful, it's ideal for high-performance midbass applications.

Key Features
  • 2.5" CCAW voice coil on Kapton former allows high power handling
  • Non-pressed paper cone with smooth frequency response offers durability and clarity
  • Die-cast aluminum frame provides structural integrity and reduces resonance
  • Frequency response of 80–5,600 Hz covers critical low to midrange frequencies
  • Suitable for vented and sealed enclosures
Your Price: $109.91
+ FREE SHIPPING
MSRP: $137.39
Save $27.48 (20%)
Bulk Pricing
Order in the next 0 hr 57 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio 8MB700FT Forte Series 8" Midbass Speaker 8 Ohm

PRV Audio 8MB700FT Forte Series 8" Midbass Speaker 8 Ohm

PRV AudiPRV Audio’s 8MB700FT Forte Series is specifically engineered for increased power handling and reduced distortion. Its larger voice coil provides excellent heat dissipation and strong Bl force to maintain high sensitivity even at high power levels with minimal distortion.

The low Qts enables tighter, more accurate midbass response. Superior fidelity comes from the ideal pairing of a non-pressed cone for smooth frequency response and a well-ventilated magnet motor designed to support high displacement while keeping distortion low.

  • 2.5″ voice coil provides increased power handling and reduced distortion in mid to low midbass ranges
  • Ventilated voice coil gap helps minimize power compression
  • 8″ PRO audio midbass speaker built for low frequencies at high power – 8 Ohm
  • 700 watts RMS program power enables high acoustic output
  • Compact, high-strength neodymium version also available: 8MB700FT-NDY

To achieve superior fidelity, a special composite cone made from non-pressed paper is used to reduce break-up, resulting in smooth frequency response and low moving mass, which boosts the speaker’s efficiency.

This 8″ driver is an excellent midbass choice for professional audio systems or high SPL car audio setups where extremely high output is needed.

This midbass is built to endure years of demanding professional use! Its specially composed spider minimizes distortion during high excursion, while the double roll surround ensures linear cone travel even at high output.

With a wide frequency range and 97 dB sensitivity, it's an ideal match for compression drivers in 3-way systems when paired with the recommended HPF settings on a PRV Digital Signal Processor (DSP):

  • 95 Hz at 12 dB per octave filter Crossover / BT12
  • 85 Hz at 18 dB per octave filter Crossover / BT18

The large 2.5″ voice coil enables high 700-watt power handling and supports the advanced cooling system built into the motor.

Designed with 11 mm of winding depth, this inside/outside coil construction offers superior thermal and mechanical durability.

Specifications

  • Nominal Diameter: 8″ (203 mm)
  • Nominal impedance: 8 Ohm
  • Nominal Power Handling:* 350 Watts
  • Continuous Program Power (RMS):** 700 Watts
  • Max Peak Power:*** 1400 Watts
  • Sensitivity 2.83V at 1m: 97 dB
  • Recommended Hi Pass Crossover: 95 Hz
    For Full Power Handling — 12db Per Octave Crossover
  • Frequency Response: 80 – 5,600 Hz
  • Voice Coil Diameter: 2.5″ (51 mm)
  • Voice Coil Wire: CCAW
  • Voice Coil Winding Depth: 11.0 mm
  • Former Material: Glass Giber
  • Magnetic Gap Depth: 8.0 mm
  • Frame Material: Die Cast Aluminum

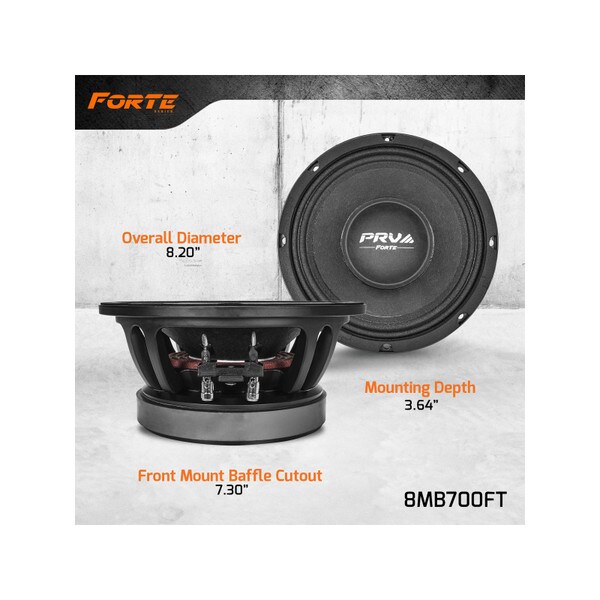

  • Overall Diameter: 8.20” (208.5 mm)
  • Front Mount Baffle Cutout: 7.30” (185.5 mm)
  • Mounting Depth: 3.64” (92.5 mm)
  • Overall Depth: 4.00” (101.5 mm)
  • Net Weight: 9.38 Lbs (4.06 kg)

*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.
**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.
***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

Explore the Forte Series

6MB550FT 6.5" Midbass Speaker 8 Ohm

6MB550FT-4 6.5" Midbass Speaker 4 Ohm

8MB700FT 8" Midbass Speaker 8 Ohm

8MB700FT-NDY 8" Neodymium Midbass Speaker 8 Ohm

8MB700FT-NDY-4 8" Neodymium Midbass Speaker 4 Ohm

10MB800FT 10" Midbass Speaker 8 Ohm

10MB1000FT 10" Midbass Speaker 8 Ohm

12MB1000FT 12" Midbass Speaker 8 Ohm

12MB1000FT-4 12" Midbass Speaker 4 Ohm

12MB1500FT 12" Midbass Speaker 8 Ohm

Product Details

BrandPRV Audio
Model8MB700FT
Part Number294-3540
UPC810075523621
Unit of MeasureEach
Weight42.7

Product Specifications

Nominal Diameter8"
Power Handling (RMS)700 Watts
Power Handling (MAX)1400 Watts
Impedance8Ω
Frequency Response80 to 5,600Hz
Sensitivity97dB 2.83V/1m
Voice Coil Diameter2.5"

Thiele-Small Parameters

Resonant Frequency (Fs)72.3Hz
DC Resistance (Re)5.2Ω
Voice Coil Inductance (Le)0.46mH
Mechanical Q (Qms)6.01
Electromagnetic Q (Qes)0.33
Total Q (Qts)0.31
Compliance Equivalent Volume (Vas)0.706ft³
Mechanical Compliance of Suspension (Cms)0.231mm/N
BL Product (BL)12.25T·m
Diaphragm Mass Inc. Airload (Mms)20.94g
Maximum Linear Excursion (Xmax)3.5mm
Surface Area of Cone (Sd)249cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCCA
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter8.20"
Baffle Cutout Diameter7.3"
Depth3.64"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.101ft³
Sealed F3196.6Hz
Vented Volume0.236ft³
Vented F3118.6Hz
