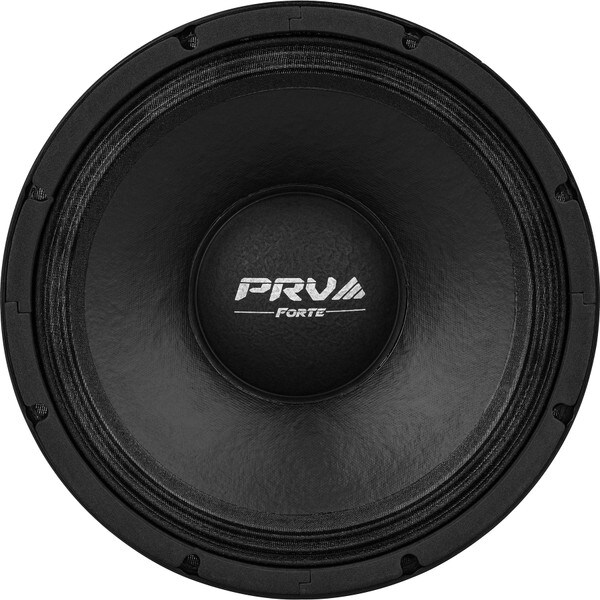

PRV Audio 12MB1000FT Forte Series 12" Midbass Speaker 8 Ohm

1 Question, 1 Answer or
PRV Audio
Part #294-2957

PRV Audio 12MB1000FT Forte Series 12" Midbass Speaker 8 Ohm

PRV Audio
Part #294-2957
Model: 12MB1000FT
1 Question, 1 Answer or

The PRV Audio 12MB1000FT is a 12" midbass loudspeaker built for smooth, high-output performance in demanding audio systems. Its powerful, responsive character makes it well-suited for professional sound reinforcement. A rugged design ensures reliable results in heavy-use environments.

Key Features
  • 3" Inside/outside aluminum voice coil wound on fiberglass former for hi-temp performance
  • Ventilated voice coil gap reduces power compression
  • High xmax for more midbass output and impact
  • 1,000 watts continuous program power rating makes high acoustical output
  • Excellent performance in 2-way or 3-way systems
  • Weather-resistant paper cone and dust cap
Your Price: $159.91
+ FREE SHIPPING
MSRP: $199.89
Save $39.98 (20%)
Bulk Pricing

Back-Ordered

Estimated back in stock 6/18/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio 12MB1000FT Forte Series 12" Midbass Speaker 8 Ohm

PRV Audio 12MB1000FT Forte Series 12" Midbass Speaker 8 Ohm

For high output speaker systems, PRV Audio’s 12MB1000FT midbass is a top-tier choice capable of delivering outstanding performance. It’s a strong new addition to the Forte Series, designed for increased power handling and reduced distortion in the mid to low midbass frequency range.

The detailed engineering behind the 12MB1000FT makes it a standout driver. With 97.5 dB efficiency and 1000 watts of continuous program power (RMS), this midbass is perfect for use in stage monitors, auditoriums, touring rigs, and outdoor systems. Its smooth frequency response from 70 to 3,200 Hz also makes it ideal for both 2-way and 3-way system configurations.

  • 3″ inside/out aluminum voice coil wound on fiberglass former for high temperature performance, 8 ohms
  • Ventilated voice coil gap helps reduce power compression
  • High Xmax delivers increased midbass output
  • 1,000 watts continuous program power rating enables strong acoustic performance
  • Excellent performance in both 2-way and 3-way systems
  • Weather-resistant paper cone and dust cap for added durability

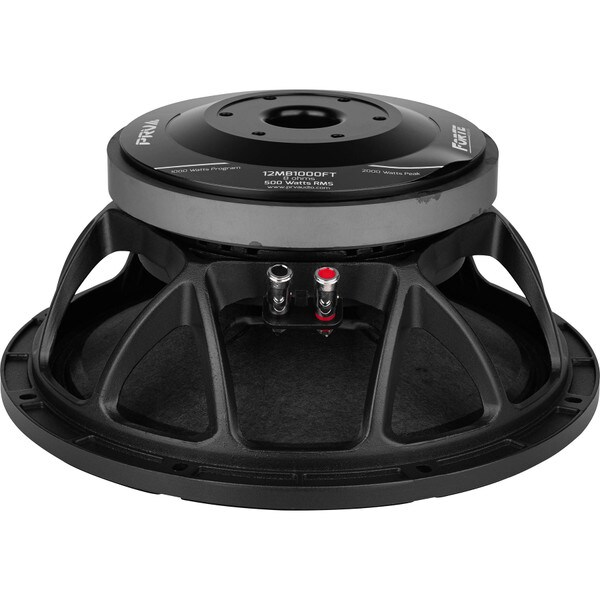

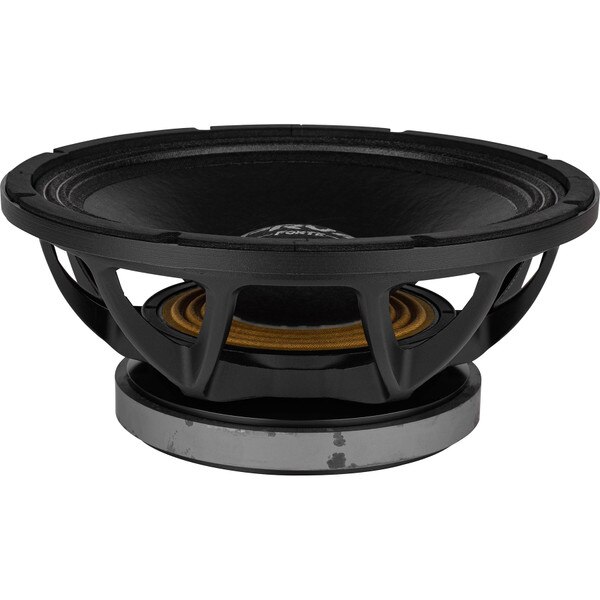

A rigid cast aluminum frame with narrow spokes helps reduce reflections back into the cone. The frame also features forced cooling system openings that allow airflow to effectively cool the voice coil.

A large ferrite magnet paired with precisely machined top and bottom plates drives the voice coil with accuracy. Dual forced vents in the back plate further enhance cooling, enabling the driver to handle up to 1000 watts RMS reliably.

Equipped with a specially formulated high-strength pulp paper cone, this driver is built for optimal linearity in the mid frequency range. A protective cone treatment enhances the damping characteristics of the moving assembly, significantly improving the smoothness of its frequency response.

The voice coil is wound on a 3″ glass fiber former with aluminum wire, minimizing weight for exceptionally fast transient response. With 19 mm of winding depth, this inside/outside coil design offers outstanding thermal and mechanical durability.

Specifications

  • Nominal Diameter: 12″ (310 mm)
  • Nominal impedance: 8 Ohm
  • Nominal Power Handling:* 500 Watts
  • Continuous Program Power (RMS):** 1000 Watts
  • Max Peak Power:*** 2000 Watts
  • Sensitivity 2.83V at 1m: 97.5 dB
  • Recommended Hi Pass Crossover: 110 Hz
    For Full Power Handling — 12db Per Octave Crossover
  • Frequency Response: 70 – 3,200 Hz
  • Voice Coil Diameter: 3″ (76 mm)
  • Voice Coil Wire: Aluminum
  • Voice Coil Winding Depth: 19 mm
  • Former Material: Fiberglass
  • Magnetic Gap Depth: 10.5 mm
  • Frame Material: Die Cast Aluminum
  • Overall Diameter: 12.40” (315 mm)
  • Front Mount Baffle Cutout: 11.10” (282 mm)
  • Mounting Depth: 5.20”(132 mm)
  • Overall Depth: 5.76”(146.5 mm)
  • Net Weight: 16.8 Lbs (7.62 kg)

*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.
**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.
***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

Explore the Forte Series

6MB550FT 6.5" Midbass Speaker 8 Ohm

6MB550FT-4 6.5" Midbass Speaker 4 Ohm

8MB700FT 8" Midbass Speaker 8 Ohm

8MB700FT-NDY 8" Neodymium Midbass Speaker 8 Ohm

8MB700FT-NDY-4 8" Neodymium Midbass Speaker 4 Ohm

10MB800FT 10" Midbass Speaker 8 Ohm

10MB1000FT 10" Midbass Speaker 8 Ohm

12MB1000FT 12" Midbass Speaker 8 Ohm

12MB1000FT-4 12" Midbass Speaker 4 Ohm

12MB1500FT 12" Midbass Speaker 8 Ohm

Product Details

BrandPRV Audio
Model12MB1000FT
Part Number294-2957
UPC602938022361
Unit of MeasureEach
Weight18.5

Product Specifications

Nominal Diameter12"
Power Handling (RMS)500 Watts
Power Handling (MAX)1000 Watts
Impedance8Ω
Frequency Response70 to 3,200Hz
Sensitivity97.5dB 2.83V/1m
Voice Coil Diameter3"

Thiele-Small Parameters

Resonant Frequency (Fs)52.72Hz
DC Resistance (Re)5.7Ω
Voice Coil Inductance (Le)1mH
Mechanical Q (Qms)13.35
Electromagnetic Q (Qes)0.38
Total Q (Qts)0.37
Compliance Equivalent Volume (Vas)2.63ft³
Mechanical Compliance of Suspension (Cms)0.162mm/N
BL Product (BL)16.54T·m
Diaphragm Mass Inc. Airload (Mms)55.94g
Maximum Linear Excursion (Xmax)6.87mm
Surface Area of Cone (Sd)573cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialAluminum
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter12.48"
Baffle Cutout Diameter11.16"
Depth5.2"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1ft³
Sealed F3113Hz
Vented Volume2ft³
Vented F360Hz
