NEW Klipsch R-605FA Reference Series 6.5" Dolby Atmos Floorstanding Speaker

KlipschPart # 247-2040
Model: R-605FA
1 Question, 1 Answer or

The Klipsch R-605FA Dolby Atmos® floorstanding speaker delivers immersive, overhead sound by integrating an up-firing height channel into the main tower design. Built on the acoustic performance of the Reference Series, it offers dynamic clarity and power for both movies and music.

Key Features

  • Built-in Dolby Atmos up-firing Elevation speaker
  • Dual 6.5" spun-copper thermoformed crystalline polymer woofers
  • 1" aluminum LTS tweeter with 90° x 90° Tractrix® horn
  • Linear Travel Suspension to reduce distortion and enhance overall performance
  • Rear-firing Tractrix® port for enhanced low-frequency efficiency
  • MDF cabinet with scratch-resistant textured wood grain vinyl finish
  • Hidden fasteners, an edge-to-edge horn design, and low-profile magnetic grilles for a sleek, modern look
Similar items that may interest you:
Polk Audio ES55 Signature Elite Floor Standing Tower Speaker
Price: $359.00Part # 243-603
See all items in Floor-Standing & Tower Speakers
NEW $849.99
+ FREE SHIPPING
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when Klipsch R-605FA Reference Series 6.5" Dolby Atmos Floorstanding Speaker is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Klipsch R-605FA Reference Series 6.5" Dolby Atmos Floorstanding Speaker

Klipsch R-605FA Reference Series 6.5" Dolby Atmos Floorstanding Speaker


Seek New Heights

These Dolby Atmos® enabled speakers deliver immersive sound from all directions, including overhead. They can be paired with any monitor or tower speaker, or used as surround speakers to create a hemisphere of rich, detailed audio.

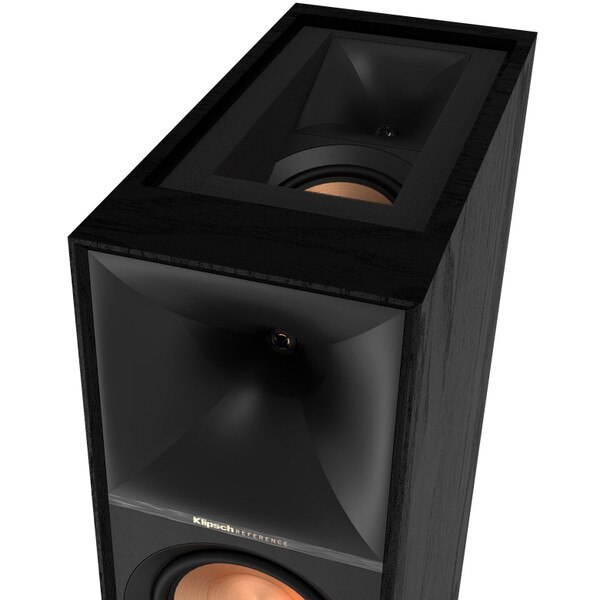

Elevation Built-In

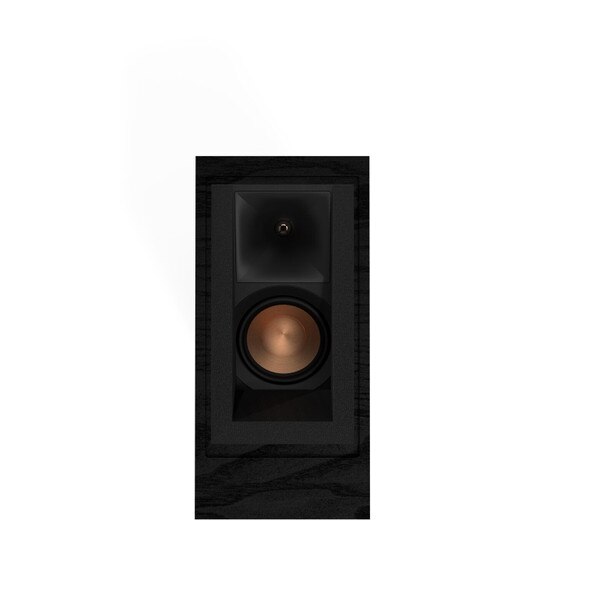

The R-605FA is more than just a standard full-range tower speaker, featuring a high-performance, up-firing Dolby Atmos speaker built into the top for a truly enveloping soundstage. This integrated design creates a perfectly matched system that blends seamlessly into your listening space.


All New 90° x 90° Tractrix® Horn

The updated horn design, featuring larger outer dimensions, delivers greater power and emotional impact for both music and movies. The increased size allows for directivity control across a wider range of frequencies, creating a more precise and immersive soundstage.


Linear Travel Suspension (LTS) Aluminum Tweeter

A signature feature of Klipsch speakers, the exclusive 1" LTS tweeter with Kapton Suspension reduces distortion for more detailed sound. The tweeter’s aluminum construction is both lightweight and rigid, delivering high efficiency and precise performance.

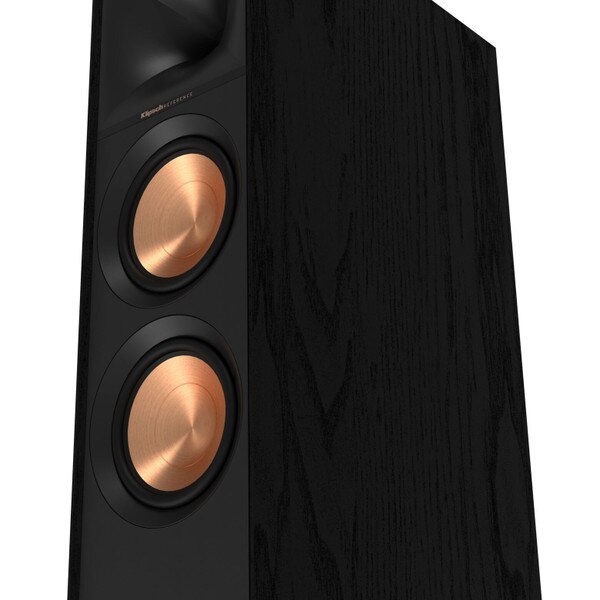

Spun-Copper Thermoformed Crystalline Polymer Woofers

Drawing on technology from Klipsch’s acclaimed Reference Premiere series, the 6.5" TCP woofers feature steeper cone angles for smoother response. This refined design enhances accuracy and transparency, delivering clearer, more precise sound reproduction.


Rear Tractrix Port

The rear Tractrix port is precisely tuned to the cabinet and woofers, allowing for optimal airflow while minimizing distortion and turbulence, even at the lowest frequencies.


High-Quality Cabinet Design & Appearance

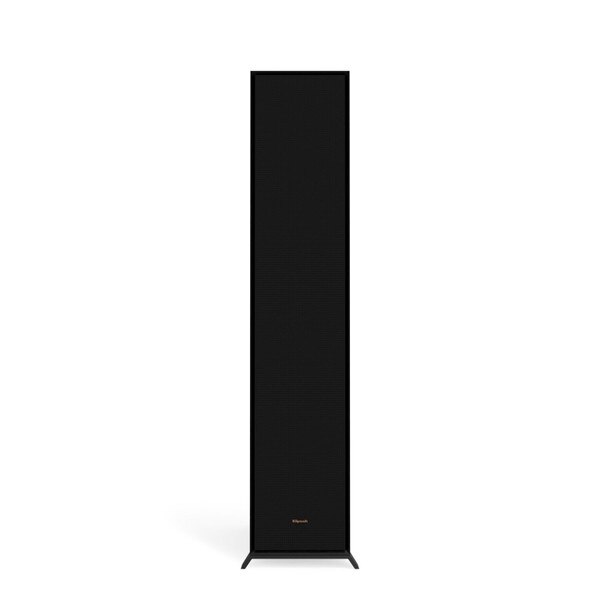

Hidden fasteners, an edge-to-edge horn, and low-profile magnetic grilles create a sleek, modern look. The MDF cabinets feature a scratch-resistant, textured wood grain finish that blends seamlessly with your home décor.


Reference Redefined

Explore the full lineup of speakers in the latest generation of the iconic Klipsch Reference series and get ready for an unforgettable listening experience.

Shop Klipsch Reference Series


Specifications

Main Channel

  • Frequency Response: 38Hz - 21kHz +/- 3dB
  • Sensitivity: 96 dB (In-Room)
  • Power Handling (Continuous/Peak): 100W/400W
  • Nominal Impedance: 8 ohms Compatible
  • Crossover Frequency: 1,440 Hz
  • High Frequency Driver: 1" Aluminum LTS tweeter mated to a 90° x 90° square Tractrix® Horn
  • Low Frequency Driver: Dual 6.5" spun-copper TCP woofers
  • Enclosure Material: MDF
  • Enclosure Type: Bass-Reflex via rear-firing Tractrix® ports
  • Inputs: Single Gold Plated Binding Posts
  • Height: 40" (1017 mm)
  • Width: 9.5" (240 mm)
  • Depth; 18.2" (463 mm)
  • Weight: 50 lbs. (22.7 kg)
  • Finish: Black Textured Wood Grain Vinyl
  • Included Accessories: Injection molded feet & screws

Height Channel

  • Frequency Response: Conforms to Dolby Atmos Specifications
  • Sensitivity: Conforms to Dolby Atmos Specifications
  • Power Handling (Continuous/Peak): 75W/150W
  • Nominal Impedance: 8 ohms Compatible
  • High Frequency Driver: 1" Aluminum LTS tweeter mated to a 90° x 90° square Tractrix® Horn
  • Low Frequency Driver: 5.25" spun-copper IMG woofer
  • Enclosure Type: Acoustic Suspension
  • Inputs: Single Gold Plated Binding Posts

Product Details

BrandKlipsch
ModelR-605FA
Part Number247-2040
UPC743878046311
Unit of MeasureEach
Weight61.5

Product Specifications

ColorBlack
Input Rating8
Woofer Diameter6.5"
