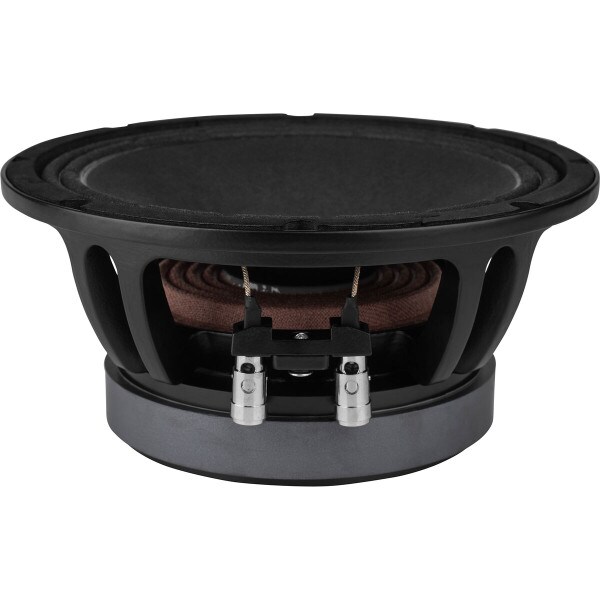

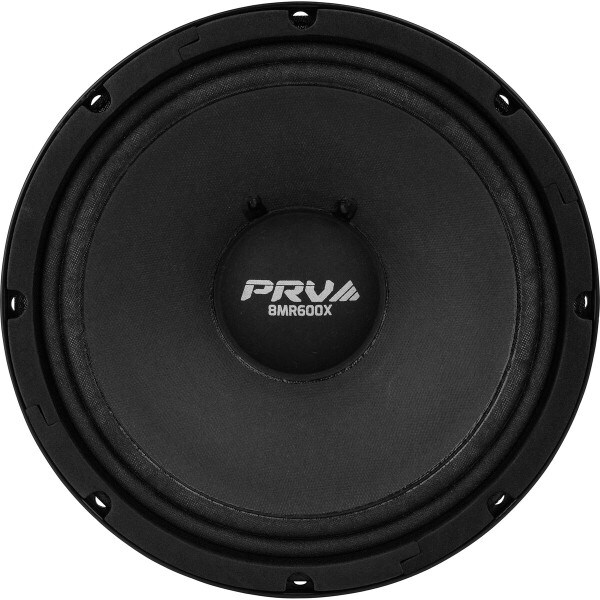

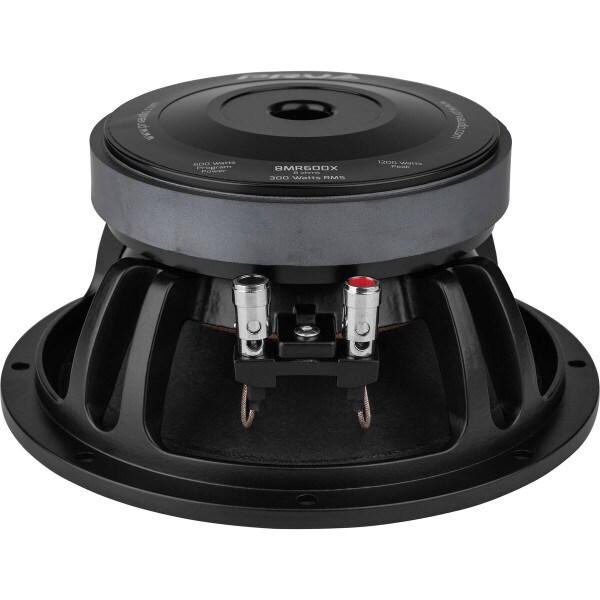

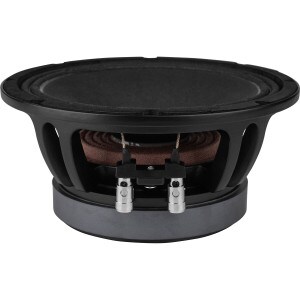

PRV Audio 8MR600X X Series 8" Midrange Speaker 8 Ohm

PRV AudioPart # 294-2997
Model: 8MR600X

PRV's X Series is committed to offering extreme midrange performance and high power capability in both the pro and competitive car audio worlds. The 8MR600X is a high-performance 8" midrange speaker engineered for exceptional audio clarity and efficiency. With a robust 300W RMS power handling, it delivers powerful sound reproduction suitable for demanding pro audio applications.

Key Features

  • 2″ dual-layer CCAW voice coil wound on a polyimide former, 8 ohm
  • Ventilated voice coil gap minimizes power compression
  • High Xmax enhances mid-bass output
  • 600 watts continuous program power rating makes high acoustical output
  • Excellent performance in compact enclosures
  • Unique double roll dimple suspension design
Your Price: $89.91
MSRP: $112.39
Save $22.48 (20%)
Bulk Pricing
32 In Stock
Get Notified When Available

We'll send you an email when PRV Audio 8MR600X X Series 8" Midrange Speaker 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio 8MR600X X Series 8" Midrange Speaker 8 Ohm

8MR600X-4 8" Midrange Speaker 4 Ohm

The PRV Audio 8MR600X is built for extreme midrange performance, setting a new standard in the pro audio world. With a sensitivity of 98 dB and a lightweight 7-pound design, it delivers powerful sound with efficiency.

Its robust magnet assembly ensures high flux concentration for maximum performance. A ventilated basket enhances thermal management by improving heat dissipation, increasing power handling, and reducing power compression.

Designed for high output with minimal distortion, this midrange driver fills the critical midrange frequencies in any high-output system. Whether for pro audio, MI speaker systems, or car audio setups, it delivers exceptional clarity and dynamic performance.

  • 2″ dual-layer CCAW voice coil wound on a polyimide former, 4 ohm
  • Ventilated voice coil gap minimizes power compression
  • High Xmax enhances mid-bass output
  • 600-watt continuous program power rating for high acoustic performance
  • Ideal for 2-way or 3-way system integration
  • Unique double roll dimple suspension design for improved control and durability

The 51 mm (2 in) copper-clad aluminum wire is wound in a double layer with high-temperature resin adhesive on a durable polyimide former. Its 14.5 mm winding length extends Xmax, reducing distortion for cleaner sound reproduction.

Designed for high-performance applications, the 2″ voice coil enhances heat dissipation and motor strength. This ensures high sensitivity and efficient power handling, even at elevated output levels. With minimal distortion and maximum reliability, it delivers precision and clarity in demanding audio setups.

With a Qts of 0.37 and a unique double roll dimple suspension, this midrange driver maintains a flat response from 200Hz to 2,500Hz, even at high excursion. Its natural paper cone remains well-controlled within its 5.25 mm Xmax for precise and stable performance.The composite cone is crafted from non-pressed paper, visible on the back side, which reduces break-up and enhances smooth sound reproduction. Designed for accuracy and clarity, this driver delivers consistent performance across a wide frequency range.

General Specifications

  • Nominal Diameter: 8″ (203 mm)
  • Nominal impedance: 4 Ohm
  • Rated AES Power Handling (RMS): 300 Watts
  • Program Power: 600 Watts
  • Sensitivity 2.83V at 1m: 98 dB
  • Recommended Hi Pass Crossover For Full Power Handling: 160 Hz 12db Per Octave Crossover
  • Frequency Response: 85 – 8,500 Hz
  • Voice Coil Diameter: 2″ (51 mm)
  • Voice Coil Wire: CCAW
  • Voice Coil Winding Depth: 14.2 mm
  • Former Material: Polymide
  • Magnetic Gap Depth: 14.2 mm
  • Frame Material: Die Cast Aluminum
  • Overall Diameter: 8.21” (208.5 mm)
  • Front Mount Baffle Cutout: 7.29” (185.3 mm)
  • Mounting Depth: 3.75” (95.5 mm)
  • Overall Depth: 4.03” (102.5 mm)
  • Net Weight: 7.04 lbs. (3.20 kg)

Explore the PRV X Series

6MR600X-NDY 6.5" Neodymium Midrange Speaker 8 Ohm

6MR600X-NDY-4 6.5" Neodymium Midrange Speaker 4 Ohm

8MR600X 8" Ferrite Midrange Speaker 8 Ohm

8MR600X-NDY 8" Neodymium Midrange Speaker 8 Ohm

8MR600X-4 8" Ferrite Midrange Speaker 4 Ohm

10MR1200X 10" Midrange Speaker 8 Ohm

12MR1200X 12" Midrange Speaker 8 Ohm

12MR2000X v2 12" Midrange Speaker 8 Ohm

12MR2000X-NDY 12" Neodymium Midrange Speaker 8 Ohm

Product Details

BrandPRV Audio
Model8MR600X
Part Number294-2997
UPC602938022071
Unit of MeasureEach
Weight7.9

Product Specifications

Nominal Diameter8"
Power Handling (RMS)300 Watts
Power Handling (MAX)600 Watts
Impedance8Ω
Frequency Response85 to 8,500Hz
Sensitivity98dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)76.9Hz
DC Resistance (Re)5.7Ω
Voice Coil Inductance (Le)0.49mH
Mechanical Q (Qms)7.07
Electromagnetic Q (Qes)0.43
Total Q (Qts)0.4
Compliance Equivalent Volume (Vas)0.71ft³
Mechanical Compliance of Suspension (Cms)0.25mm/N
BL Product (BL)10.54T·m
Diaphragm Mass Inc. Airload (Mms)17.31g
Maximum Linear Excursion (Xmax)5.25mm
Surface Area of Cone (Sd)241cm²

Materials of Construction

Voice Coil Wire MaterialCCA
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter8.21"
Baffle Cutout Diameter7.29"
Depth3.75"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.45ft³
Sealed F3154.7Hz
Vented Volume0.75ft³
Vented F373.9Hz
