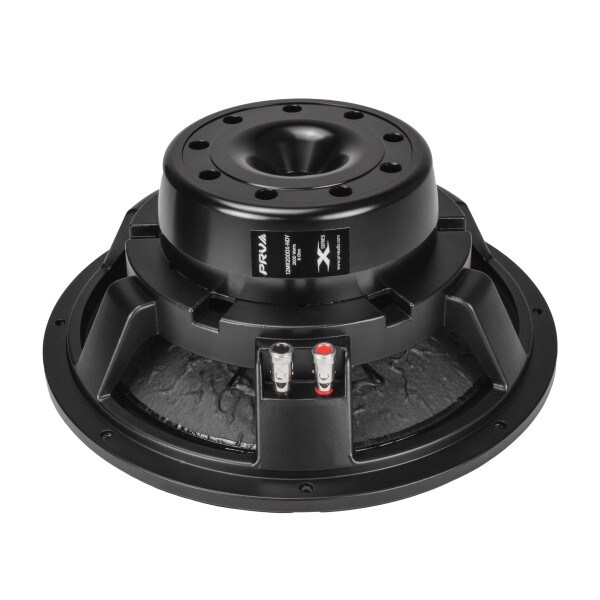

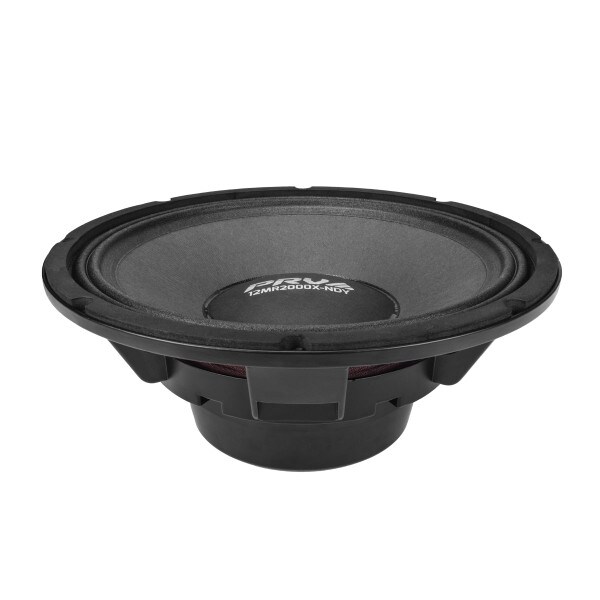

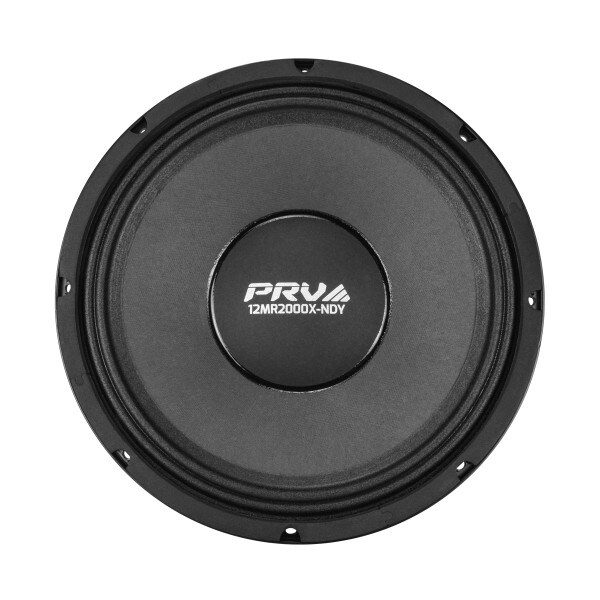

NEW PRV Audio 12MR2000X-NDY X Series 12" Neodymium Midrange Speaker 8 Ohm

PRV AudioPart # 294-3407
Model: 12MR2000X-NDY

PRV's X Series is committed to offering extreme midrange performance and high power capability in both the pro and competitive car audio worlds. The 12MR2000X-NDY is a 12″ neodymium midrange speaker designed for extreme SPL performance and vocal clarity. Engineered for high-output systems, it delivers powerful sound reproduction with incurring distortion.

Key Features

  • 2000 Watts RMS with 100 dB efficiency for exceptional output capability
  • 4″ voice coil wound on a glass fiber former ensures high-temperature performance
  • Neodymium motor assembly reduces weight while supporting high output performance
  • Lightweight design at 13.45 lbs offers an optimal power-to-weight ratio
  • Composite cone built with non-pressed paper reduces break-up for smooth sound
  • Extensive venting keeps the voice coil cool, improving reliability during intense operation
  • Excellent performance in compact enclosures and custom installations
NEW $279.91
+ FREE SHIPPING
MSRP: $349.89
Save $69.98 (20%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when PRV Audio 12MR2000X-NDY X Series 12" Neodymium Midrange Speaker 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio 12MR2000X-NDY X Series 12" Neodymium Midrange Speaker 8 Ohm

12MR2000X-NDY 12" Neodymium Midrange Speaker 8 Ohm

PRV Audio’s 12MR2000X-NDY is built for X-treme midrange performance, offering class-leading output and efficiency in a lightweight design.

With a 100 dB sensitivity and weighing just 13.45 pounds, this 12″ midrange driver is ideal for high-output pro audio systems, musical instrument enclosures, and competitive car audio builds. Its advanced neodymium motor assembly delivers concentrated magnetic flux while enhancing thermal transfer and cooling, boosting power handling and minimizing power compression.

As part of the X Series, it’s engineered for extreme midrange clarity, smooth vocal response, and powerful, consistent performance at the highest levels.

  • Delivers 2,000 watts RMS with 100 dB sensitivity for outstanding output capability
  • 6.10 mm Xmax ensures controlled excursion and impactful midbass performance
  • Provides clear vocal articulation and accurate instrument reproduction
  • Performs exceptionally well in compact enclosures, ideal for tight-space applications
  • Extensive venting system maintains low coil temperatures, enhancing reliability under extreme conditions

Engineered to deliver strong vocal presence with punchy midbass, this driver strikes an ideal balance between weight and performance.

Its high-energy neodymium motor and carefully selected components are designed to enhance sensitivity and power handling, reproducing fine audio details with precision—meeting the demands of audiophiles and custom car audio builders alike.

The 4″ voice coil is wound on a heat-resistant glass fiber former, offering high efficiency and precise detail reproduction even at concert-level volumes.

A composite cone made from non-pressed paper minimizes break-up, delivering smooth and natural sound.

With its high power handling and 100 dB sensitivity, this midrange driver produces exceptional dynamics and maintains low distortion, even under extreme output demands.

Recommended Installation Guide:

Recommended boxes for optimal upper midrange output:
4 Triangle Ported box size: 0.55 ft3 (approx: 13”x13”x6”)
Port size: 3” x 3”x 4.25” by 4” deep

1 Slot Ported box size: 0.65 ft3 (approx: 14”x12”x7”)
Port size: 12” x 1.75” x 4” deep

Recommended HPF using PRV Digital Signal Processor DSP when using up to 2000 Watts RMS musical power ( without clipping )

  • 160 Hz at 12 dB per octave filter Crossover / BT12
  • 135 Hz at 18 dB per octave filter Crossover / BT18

If you have compression drivers on your system the recommended LPF is 3,800 at 18 dB per octave filter Crossover / BT18 but you may set it lower to blend in better depending on the other components in your system, or you may not use a LPF at low power to take advantage of its high frequency response.

General Specifications

  • Nominal Diameter: 12″ (305 mm)
  • Nominal impedance: 8 Ohm
  • Nominal Power Handling*: 1000 Watts
  • Continuous Program Power (RMS)**: 2000 Watts
  • Max Peak Power***: 4000 Watts
  • Sensitivity 2.83V at 1m: 100 dB
  • Recommended Hi Pass Crossover For Full Power Handling: 160 Hz 12db Per Octave Crossover
  • Frequency Response: 100 – 5,200 Hz
  • Voice Coil Diameter: 4″ (100 mm)
  • Voice Coil Wire: CCAW
  • Voice Coil Winding Depth: 18.2 mm
  • Former Material: Glass fiber
  • Magnetic Gap Depth: 12.0 mm
  • Frame Material: Die Cast Aluminum
  • Overall Diameter: 12.28″ (312 mm)
  • Front Mount Baffle Cutout: 11.14” (283 mm)
  • Mounting Depth: 4.47″ (113.7 mm)
  • Overall Depth: 4.95″ (125.7 mm)
  • Net Weight: 13.45 Lbs (7.0 kg)

*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.
**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.
***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

Explore the PRV X Series

6MR600X-NDY 6.5" Neodymium Midrange Speaker 8 Ohm

6MR600X-NDY-4 6.5" Neodymium Midrange Speaker 4 Ohm

8MR600X 8" Ferrite Midrange Speaker 8 Ohm

8MR600X-NDY 8" Neodymium Midrange Speaker 8 Ohm

8MR600X-4 8" Ferrite Midrange Speaker 4 Ohm

10MR1200X 10" Midrange Speaker 8 Ohm

12MR1200X 12" Midrange Speaker 8 Ohm

12MR2000X v2 12" Midrange Speaker 8 Ohm

12MR2000X-NDY 12" Neodymium Midrange Speaker 8 Ohm

Product Details

BrandPRV Audio
Model12MR2000X-NDY
Part Number294-3407
UPC602938021449
Unit of MeasureEach
Weight18

Product Specifications

Nominal Diameter12"
Power Handling (RMS)1000 Watts
Power Handling (MAX)2000 Watts
Impedance8Ω
Frequency Response100 to 5,200Hz
Sensitivity100dB 2.83V/1m
Voice Coil Diameter4"

Thiele-Small Parameters

Resonant Frequency (Fs)67.2Hz
DC Resistance (Re)5.4Ω
Voice Coil Inductance (Le)0.4mH
Mechanical Q (Qms)16.7
Electromagnetic Q (Qes)0.32
Total Q (Qts)0.31
Compliance Equivalent Volume (Vas)1.27ft³
Mechanical Compliance of Suspension (Cms)0.078mm/N
BL Product (BL)22.7T·m
Diaphragm Mass Inc. Airload (Mms)71.5g
Maximum Linear Excursion (Xmax)6.1mm
Surface Area of Cone (Sd)573cm²

Materials of Construction

Voice Coil Wire MaterialCCA
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum

Mounting Information

Overall Outside Diameter12.28"
Baffle Cutout Diameter11.14"
Depth4.95"
# Mounting Holes8
