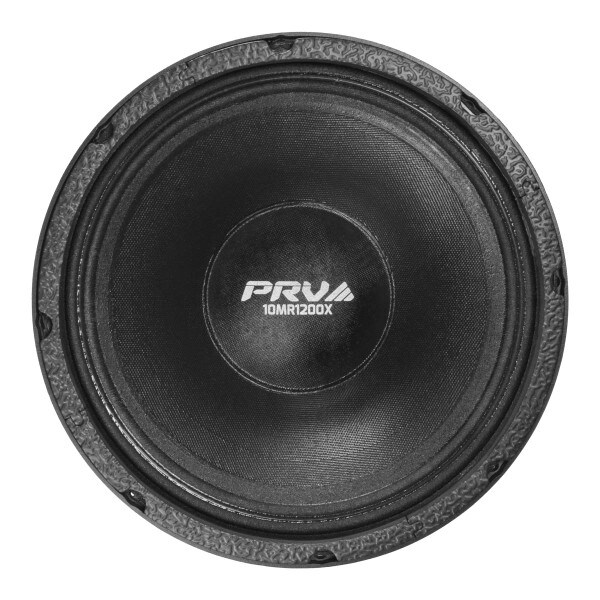

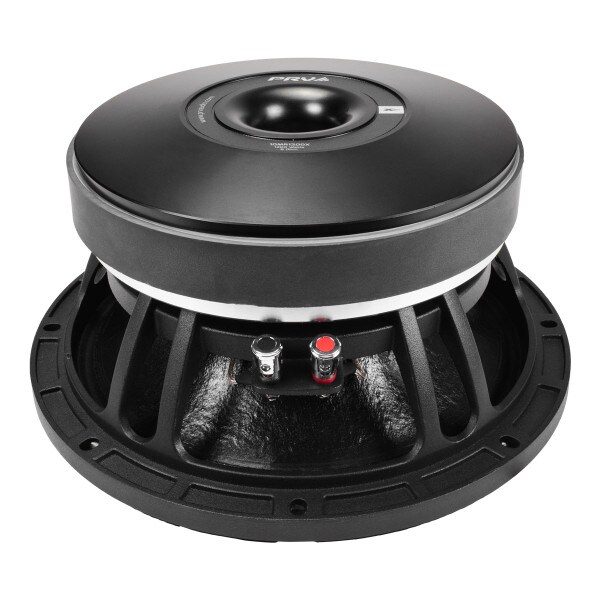

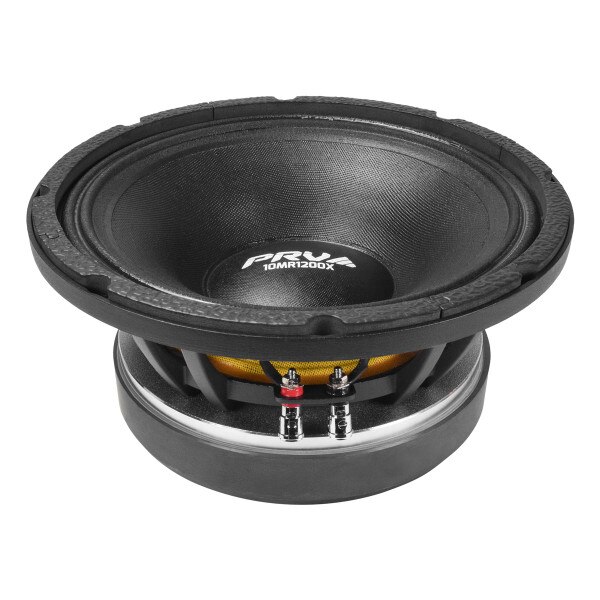

NEW PRV Audio 10MR1200X X Series 10" Midrange Speaker 8 Ohm

PRV Audio
Part #294-3401

NEW PRV Audio 10MR1200X X Series 10" Midrange Speaker 8 Ohm

PRV Audio
Part #294-3401
Model: 10MR1200X

PRV's X Series is committed to offering extreme midrange performance and high power capability in both the pro and competitive car audio worlds. The 10MR1200X is a high-performance 10″ midrange loudspeaker engineered for extreme sound pressure level (SPL) applications. It offers exceptional vocal clarity and dynamic range, making it ideal for pro audio systems and competitive car setups.

Key Features
  • Designed for extreme SPL with output levels exceeding 133 dB
  • 3" inside/outside voice coil delivers superior heat resistance and stability
  • Ventilated gap reduces power compression for consistent high-power performance
  • Lightweight cone enhances midrange clarity
  • Copper-clad aluminum wire reduces weight while maintaining conductivity
  • Aluminum die-cast frame increases strength and aids thermal dissipation
  • Precision-tuned for detailed vocal reproduction in the 260–4,200 Hz range
NEW $199.91
+ FREE SHIPPING
MSRP: $249.89
Save $49.98 (20%)
Bulk Pricing

Back-Ordered

Expected back in stock any day
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio 10MR1200X X Series 10" Midrange Speaker 8 Ohm

10MR1200X 10" Midrange Speaker 8 Ohm

PRV Audio’s 10MR1200X is built for X-treme midrange performance, making it an ideal choice for high-SPL systems that demand clarity and output. With an impressive 101 dB sensitivity, this 10″ professional midrange driver delivers powerful vocal presence in the most demanding setups.

Engineered for high output and durability, the X Series excels in midrange reproduction with smooth vocal response and robust power handling. The 10MR1200X brings that performance to the 10″ category, while the series also includes the 12″ 12MR1200X for even more options.

  • Handles 1200 watts RMS program power, delivering powerful acoustic performance
  • 3″ inside/outside voice coil on a glass fiber former with a ventilated gap minimizes power compression and supports high-temperature operation
  • Reproduces vocals with clarity and captures instruments with clean, accurate detail
  • Performs well in tight enclosures and fits easily into custom vehicle door builds
  • High 101 dB sensitivity allows for extreme SPL with minimal amplifier power

Built for serious car audio competitors, PRV Audio’s 10MR1200X loudspeaker delivers top-tier midrange performance.

Pushing the boundaries of output and clarity, this is the top of the line midrange driver in PRV’s PRO audio lineup, engineered for accuracy and power in demanding SPL environments.

Its lightweight cone offers exceptional vocal and instrument articulation, achieving over 133 dB of output between 260 and 4,200 Hz for unmatched presence and detail.

Engineered for consistent high output with minimal distortion, this speaker delivers a powerful and refined listening experience.

Every aspect of its design supports reliable performance at extreme volume levels, maintaining clarity even when pushed to the edge.

With exceptional power handling and a 101 dB sensitivity rating, it produces dynamic tones and rich vocal depth that remain clear and controlled, even under intense demands.

With a 3″ inside/outside voice coil wound on a glass fiber former and reinforced with heat-resistant adhesive, this midrange easily manages 1200 watts RMS.

Designed to set the standard in professional audio, it excels as an instrument speaker, use in large-scale competition setups, and high-output pro audio applications.

Recommended HPF using PRV Digital Signal Processor DSP when using up to 1200 Watts RMS musical power ( without clipping )

  • 150 Hz at 12 dB per octave filter Crossover / BT12
  • 140 Hz at 18 dB per octave filter Crossover / BT18

If you have compression drivers on your system the recommended LPF is 4,000 at 18 dB per octave filter Crossover / BT18 but you may set it lower to blend in better depending on the other components in your system, or you may not use a LPF at low power to take advantage of its high frequency response.

General Specifications

  • Nominal Diameter: 10″ (254 mm)
  • Nominal impedance: 8 Ohm
  • Nominal Power Handling*: 600 Watts
  • Continuous Program Power (RMS)**: 1200 Watts
  • Max Peak Power***: 2400 Watts
  • Sensitivity 2.83V at 1m: 101 dB
  • Recommended Hi Pass Crossover For Full Power Handling: 150 Hz 12db Per Octave Crossover
  • Frequency Response: 80 – 7,000 Hz
  • Voice Coil Diameter: 3″ (75 mm)
  • Voice Coil Wire: CCAW
  • Voice Coil Winding Depth: 10.0 mm
  • Former Material: Glass fiber
  • Magnetic Gap Depth: 10.0 mm
  • Frame Material: Die Cast Aluminum
  • Overall Diameter: 10.31” (262 mm)
  • Front Mount Baffle Cutout: 8.78” (223 mm)
  • Mounting Depth: 4.45” (113 mm)
  • Overall Depth: 5.04” (128 mm)
  • Net Weight: 19.18 Lbs (8.70 kg)

*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.
**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.
***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

Explore the PRV X Series

6MR600X-NDY 6.5" Neodymium Midrange Speaker 8 Ohm

6MR600X-NDY-4 6.5" Neodymium Midrange Speaker 4 Ohm

8MR600X 8" Ferrite Midrange Speaker 8 Ohm

8MR600X-NDY 8" Neodymium Midrange Speaker 8 Ohm

8MR600X-4 8" Ferrite Midrange Speaker 4 Ohm

10MR1200X 10" Midrange Speaker 8 Ohm

12MR1200X 12" Midrange Speaker 8 Ohm

12MR2000X v2 12" Midrange Speaker 8 Ohm

12MR2000X-NDY 12" Neodymium Midrange Speaker 8 Ohm

Product Details

BrandPRV Audio
Model10MR1200X
Part Number294-3401
UPC810075526653
Unit of MeasureEach
Weight20

Product Specifications

Nominal Diameter10"
Power Handling (RMS)600 Watts
Power Handling (MAX)1200 Watts
Impedance8Ω
Frequency Response80 to 7,000Hz
Sensitivity101dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)86.9Hz
DC Resistance (Re)5.1Ω
Voice Coil Inductance (Le)0.52mH
Mechanical Q (Qms)6.97
Electromagnetic Q (Qes)0.3
Total Q (Qts)0.29
Compliance Equivalent Volume (Vas)0.77ft³
Mechanical Compliance of Suspension (Cms)0.1mm/N
BL Product (BL)17.5T·m
Diaphragm Mass Inc. Airload (Mms)33.3g
Maximum Linear Excursion (Xmax)2.5mm
Surface Area of Cone (Sd)394cm²

Materials of Construction

Voice Coil Wire MaterialCCA
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum

Mounting Information

Overall Outside Diameter10.31"
Baffle Cutout Diameter8.78"
Depth4.45"
# Mounting Holes8
