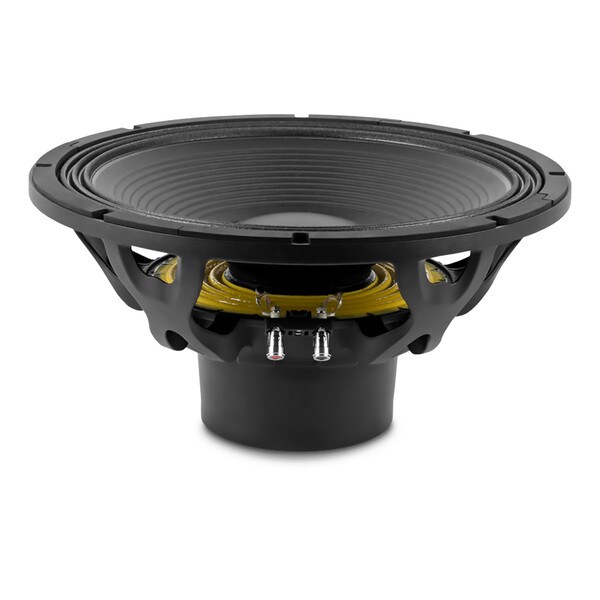

NEW Beyma 15LEX1600Nd LEX Series 15" Neo Subwoofer 8 Ohm

Beyma
Part #253-046

NEW Beyma 15LEX1600Nd LEX Series 15" Neo Subwoofer 8 Ohm

Beyma
Part #253-046
Model: 15LEX1600Nd

The Beyma 15LEX1600Nd is a 15" low-frequency transducer engineered for professional audio applications requiring high power handling, low distortion, and efficient cooling. Its advanced design and robust construction make it suitable for both direct radiation and band-pass subwoofer configurations.

Key Features
  • 4" DUO double-layer in/out copper voice coil enhances thermal performance​
  • Exclusive Maltcross cooling system reduces power compression​
  • Extended controlled displacement with ±14.5 mm Xmax​
  • 65 mm peak-to-peak excursion before damage ensures mechanical reliability​
  • Waterproof cone with treatment on both sides for increased durability​
  • FEA-optimized neodymium magnetic circuit with aluminum demodulating ring for improved performance​
  • Double silicone spider enhances mechanical stability​
Similar items that may interest you:
See all items in Subwoofer Drivers
NEW $610.50
+ FREE SHIPPING
MSRP: $814.00
Save $203.50 (25%)
Bulk Pricing
Ships next business day. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Beyma 15LEX1600Nd LEX Series 15" Neo Subwoofer 8 Ohm

15LEX1600Nd LEX Series 15" Neo Subwoofer 8 Ohm

Meet the lex1000nd series

The 15LEX1600Nd's 1,600 W AES power handling and 96 dB sensitivity enable it to deliver clear and dynamic sound output, making it suitable for demanding audio applications. Its 4" DUO double-layer in/out copper voice coil enhances thermal stability, contributing to consistent performance over time. The exclusive Maltcross cooling system effectively dissipates heat, reducing power compression and maintaining consistent output during prolonged use. The driver features an Xmax of ±14.5 mm, allowing for extended linear cone movement and deeper bass response without distortion. With a peak-to-peak excursion before damage of 65 mm, the 15LEX1600Nd can withstand significant mechanical stress, ensuring longevity even under high-demand conditions. The waterproof cone, treated on both sides, enhances durability and resistance to environmental factors, making it suitable for both indoor and outdoor applications. The FEA-optimized neodymium magnetic circuit, combined with an aluminum demodulating ring, improves overall efficiency and sound quality, while the ultra-low air noise design minimizes distortion. The double silicone spider further enhances mechanical stability, maintaining consistent performance. Optimized for direct radiation and band-pass subwoofer applications, this transducer offers versatility and high performance for professional audio systems.​

At Beyma, the challenge of heat dissipation is met with a clear objective: ensuring our speakers consistently deliver optimal performance within the system, maximizing total sound pressure level (SPL) and maintaining stability.

It's widely recognized that a system's overall SPL decreases over time due to power compression effects in the speakers. Typically, larger voice coil diameters correlate with higher power capacity; however, this also necessitates bigger motor structures to achieve high total output from the transducer.

Beyma's Maltcross cooling technology presents multiple solutions to achieve this goal. It enables the woofer to handle higher power levels with a given coil diameter, allowing for designs with smaller coils and motor structures. This reduction in size decreases weight, increases sensitivity, and maintains adequate power handling for specific applications, resulting in a total SPL comparable to that of drivers with larger motor structures.

Maltcross technology incorporates a forced convection circuit within the driver's core, effectively lowering the coil's operating temperature. Additionally, it functions as a demodulation ring, linearizing the transducer's inductance.

Product Details

BrandBeyma
Model15LEX1600Nd
Part Number253-046
UPC8435469043602
Unit of MeasureEach
Weight21.6

Product Specifications

Nominal Diameter15"
Bolt Circle Diameter14.7
Power Handling (RMS)1600 Watts
Power Handling (MAX)3200 Watts
Impedance8Ω
Frequency Response40 to 1,500Hz
Sensitivity96dB 2.83V/1m
Voice Coil Diameter4"

Thiele-Small Parameters

Resonant Frequency (Fs)41Hz
DC Resistance (Re)5.5Ω
Voice Coil Inductance (Le)1.6mH
Mechanical Q (Qms)6.6
Electromagnetic Q (Qes)0.38
Total Q (Qts)0.36
Compliance Equivalent Volume (Vas)3.21ft³
Mechanical Compliance of Suspension (Cms)84mm/N
BL Product (BL)25.7T·m
Diaphragm Mass Inc. Airload (Mms)0.175g
Maximum Linear Excursion (Xmax)14.5mm
Surface Area of Cone (Sd)0.088cm²

Materials of Construction

Cone MaterialPaper-Treated Paper
Voice Coil Wire MaterialCopper
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter15.5"
Baffle Cutout Diameter13.9"
Depth7.6"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.641ft³
Sealed F397.09Hz
Vented Volume1.713ft³
Vented F354.43Hz
