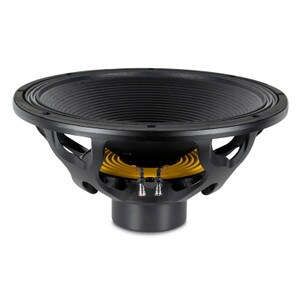

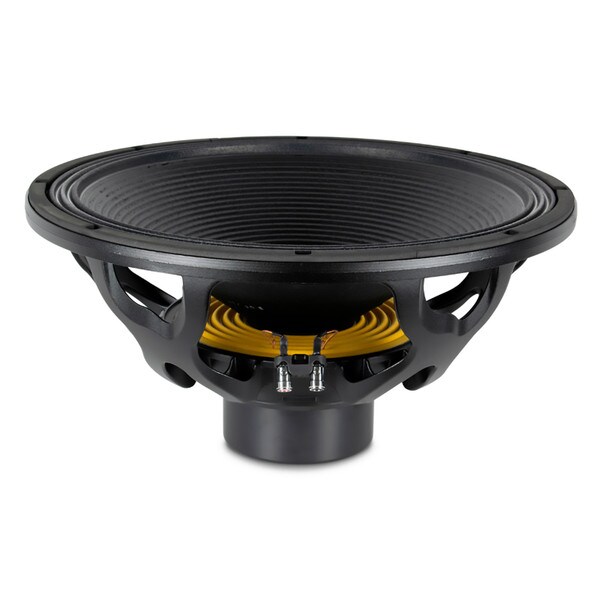

NEW Beyma 18LEX1000Nd LEX Series 18" Neo Subwoofer 8 Ohm

Beyma
Part #253-048

NEW Beyma 18LEX1000Nd LEX Series 18" Neo Subwoofer 8 Ohm

Beyma
Part #253-048
Model: 18LEX1000Nd

The Beyma 18LEX1000Nd is an 18" low-frequency transducer designed for professional audio applications requiring high power handling, low distortion, and efficient Maltcross cooling. Its advanced design and robust construction make it suitable for both direct radiation and band-pass subwoofer configurations.

Key Features
  • 3.5" DUO double-layer in/out copper voice coil enhances thermal performance​
  • Exclusive Maltcross cooling system reduces power compression​
  • Extended controlled displacement with ±11 mm Xmax​
  • 60 mm peak-to-peak excursion before damage ensures mechanical reliability​
  • Weatherproof cone with treatment on both sides for increased durability​
  • FEA-optimized neodymium magnetic circuit for improved performance​
  • Ultra-low air noise design minimizes distortion​
Similar items that may interest you:
See all items in Subwoofer Drivers
NEW $393.00
+ FREE SHIPPING
MSRP: $524.00
Save $131.00 (25%)
Bulk Pricing
Order in the next 2 hr 51 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Beyma 18LEX1000Nd LEX Series 18" Neo Subwoofer 8 Ohm

18LEX1000Nd LEX Series 18" Neo Subwoofer 8 Ohm

Meet the lex1000nd series

The 18LEX1000Nd's 1,000 W AES power handling and 98 dB sensitivity enable it to deliver clear and dynamic sound output, making it suitable for demanding audio applications. Its 3.5" DUO double-layer in/out copper voice coil enhances thermal stability, contributing to consistent performance over time. The exclusive Maltcross cooling system effectively dissipates heat, reducing power compression and maintaining consistent output during prolonged use. The driver features an Xmax of ±11 mm, allowing for extended linear cone movement and deeper bass response without distortion. With a peak-to-peak excursion before damage of 60 mm, the 18LEX1000Nd can withstand significant mechanical stress, ensuring longevity even under high-demand conditions. The weatherproof cone, treated on both sides, enhances durability and resistance to environmental factors, making it suitable for both indoor and outdoor applications. The FEA-optimized neodymium magnetic circuit improves overall efficiency and sound quality, while the ultra-low air noise design minimizes distortion. Optimized for direct radiation and band-pass subwoofer applications, this transducer offers versatility and high performance for professional audio systems.​

At Beyma, the challenge of heat dissipation is met with a clear objective: ensuring our speakers consistently deliver optimal performance within the system, maximizing total sound pressure level (SPL) and maintaining stability.

It's widely recognized that a system's overall SPL decreases over time due to power compression effects in the speakers. Typically, larger voice coil diameters correlate with higher power capacity; however, this also necessitates bigger motor structures to achieve high total output from the transducer.

Beyma's Maltcross cooling technology presents multiple solutions to achieve this goal. It enables the woofer to handle higher power levels with a given coil diameter, allowing for designs with smaller coils and motor structures. This reduction in size decreases weight, increases sensitivity, and maintains adequate power handling for specific applications, resulting in a total SPL comparable to that of drivers with larger motor structures.

Maltcross technology incorporates a forced convection circuit within the driver's core, effectively lowering the coil's operating temperature. Additionally, it functions as a demodulation ring, linearizing the transducer's inductance.

Product Details

BrandBeyma
Model18LEX1000Nd
Part Number253-048
UPC8435469044074
Unit of MeasureEach
Weight19.4

Product Specifications

Nominal Diameter18"
Bolt Circle Diameter17.3
Power Handling (RMS)1000 Watts
Power Handling (MAX)2000 Watts
Impedance8Ω
Frequency Response35 to 1,000Hz
Sensitivity98dB 2.83V/1m
Voice Coil Diameter3.5"

Thiele-Small Parameters

Resonant Frequency (Fs)34Hz
DC Resistance (Re)5.1Ω
Voice Coil Inductance (Le)1.6mH
Mechanical Q (Qms)5.6
Electromagnetic Q (Qes)0.42
Total Q (Qts)0.39
Compliance Equivalent Volume (Vas)9.18ft³
Mechanical Compliance of Suspension (Cms)117mm/N
BL Product (BL)22T·m
Diaphragm Mass Inc. Airload (Mms)0.185g
Maximum Linear Excursion (Xmax)11mm
Surface Area of Cone (Sd)0.1255cm²

Materials of Construction

Cone MaterialPaper-Treated Paper
Voice Coil Wire MaterialCopper
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter18.2"
Baffle Cutout Diameter16.3"
Depth9.2"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume2.224ft³
Sealed F374.43Hz
Vented Volume6.487ft³
Vented F339.87Hz
