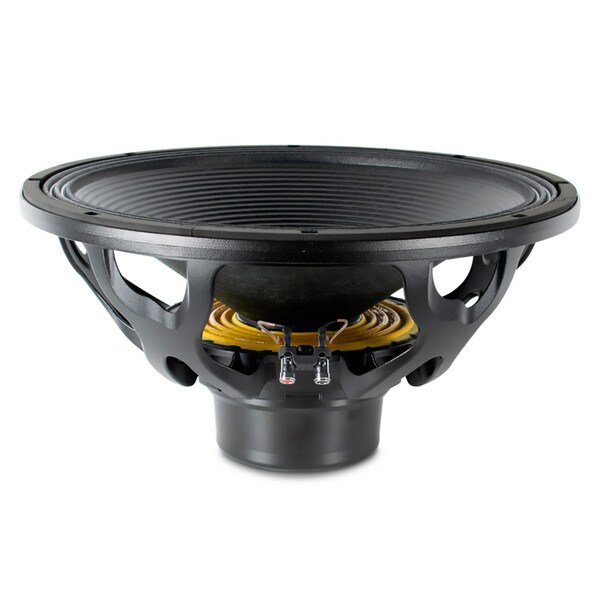

NEW Beyma 18LEX1600Nd LEX Series 18" Neo Subwoofer 8 Ohm

Name: Beyma 18LEX1600Nd LEX Series 18" Neo Subwoofer 8 Ohm
Brand: Beyma
SKU: 253-052
Price: 627 USD
Availability: OutOfStock

Beyma

Part #253-052

NEW Beyma 18LEX1600Nd LEX Series 18" Neo Subwoofer 8 Ohm

Beyma

Part #253-052

Model: 18LEX1600Nd

12 in. 1300W 15 in. 1600W 15 in. 1000W 18 in. 1200W 18 in. 1000W 18 in. 1600W 21 in. 1600W

The Beyma 18LEX1600Nd is an 18" low-frequency transducer designed for professional audio applications requiring high power handling, low distortion, and efficient Maltcross cooling. Its advanced design and robust construction make it suitable for both direct radiation and band-pass subwoofer configurations.

Key Features

4" DUO double-layer in/out copper voice coil enhances thermal performance
Exclusive Maltcross cooling system reduces power compression
Extended controlled displacement with ±14.5 mm Xmax
65 mm peak-to-peak excursion before damage ensures mechanical reliability
Weatherproof cone with treatment on both sides for increased durability
FEA-optimized neodymium magnetic circuit with aluminum demodulating ring for improved performance
Ultra-low air noise design minimizes distortion

Frequently Bought Together

This Product: Beyma 18LEX1600Nd LEX Series 18" Neo Subwoofer 8 Ohm	$627.00
Parts Express #8 x 1" Deep Thread Pan Head Screws Black 100 Pcs.	$7.69
Acry-Tech DuraTex Black 1 Quart Roller Grade Cabinet Texture Coating Kit with Textured 3" Roller	$49.98
Beyma CD-1114Fe 1.4" Compression Driver 8 Ohm 4-Bolt	$105.00

Total Price: $789.67

This Product:Beyma 18LEX1600Nd LEX Series 18" Neo Subwoofer 8 Ohm$627.00

Parts Express #8 x 1" Deep Thread Pan Head Screws Black 100 Pcs.$7.69

Acry-Tech DuraTex Black 1 Quart Roller Grade Cabinet Texture Coating Kit with Textured 3" Roller$49.98

Beyma CD-1114Fe 1.4" Compression Driver 8 Ohm 4-Bolt$105.00

4 ItemsTotal Price: $789.67

Overview

Beyma 18LEX1600Nd LEX Series 18" Neo Subwoofer 8 Ohm

18LEX1600Nd LEX Series 18" Neo Subwoofer 8 Ohm

The 18LEX1600Nd's 1,600 W AES power handling and 96 dB sensitivity enable it to deliver clear and dynamic sound output, making it suitable for demanding audio applications. Its 4" DUO double-layer in/out copper voice coil enhances thermal stability, contributing to consistent performance over time. The exclusive Maltcross cooling system effectively dissipates heat, reducing power compression and maintaining consistent output during prolonged use. The driver features an Xmax of ±14.5 mm, allowing for extended linear cone movement and deeper bass response without distortion. With a peak-to-peak excursion before damage of 65 mm, the 18LEX1600Nd can withstand significant mechanical stress, ensuring longevity even under high-demand conditions. The weatherproof cone, treated on both sides, enhances durability and resistance to environmental factors, making it suitable for both indoor and outdoor applications. The FEA-optimized neodymium magnetic circuit, combined with an aluminum demodulating ring, improves overall efficiency and sound quality, while the ultra-low air noise design minimizes distortion. Optimized for direct radiation and band-pass subwoofer applications, this transducer offers versatility and high performance for professional audio systems .

Solid Line: On Axis
Dotted Line: 45° Off Axis

At Beyma, the challenge of heat dissipation is met with a clear objective: ensuring our speakers consistently deliver optimal performance within the system, maximizing total sound pressure level (SPL) and maintaining stability.

It's widely recognized that a system's overall SPL decreases over time due to power compression effects in the speakers. Typically, larger voice coil diameters correlate with higher power capacity; however, this also necessitates bigger motor structures to achieve high total output from the transducer.

Beyma's Maltcross cooling technology presents multiple solutions to achieve this goal. It enables the woofer to handle higher power levels with a given coil diameter, allowing for designs with smaller coils and motor structures. This reduction in size decreases weight, increases sensitivity, and maintains adequate power handling for specific applications, resulting in a total SPL comparable to that of drivers with larger motor structures.

Maltcross technology incorporates a forced convection circuit within the driver's core, effectively lowering the coil's operating temperature. Additionally, it functions as a demodulation ring, linearizing the transducer's inductance.

Product Details
Brand	Beyma
Model	18LEX1600Nd
Part Number	253-052
UPC	8435469044104
Unit of Measure	Each
Weight	22.2

Product Specifications
Nominal Diameter	18"
Bolt Circle Diameter	17.3
Power Handling (RMS)	1600 Watts
Power Handling (MAX)	3200 Watts
Impedance	8Ω
Frequency Response	35 to 1,000Hz
Sensitivity	96dB 2.83V/1m
Voice Coil Diameter	4"

Thiele-Small Parameters
Resonant Frequency (Fs)	33Hz
DC Resistance (Re)	5.8Ω
Voice Coil Inductance (Le)	1.9mH
Mechanical Q (Qms)	11.4
Electromagnetic Q (Qes)	0.45
Total Q (Qts)	0.43
Compliance Equivalent Volume (Vas)	8.16ft³
Mechanical Compliance of Suspension (Cms)	104mm/N
BL Product (BL)	24.5T·m
Diaphragm Mass Inc. Airload (Mms)	0.229g
Maximum Linear Excursion (Xmax)	14.5mm
Surface Area of Cone (Sd)	0.1255cm²

Materials of Construction
Cone Material	Paper-Treated Paper
Voice Coil Wire Material	Copper
Magnet Material	Neodymium

Mounting Information
Overall Outside Diameter	18.2"
Baffle Cutout Diameter	16.3"
Depth	9.2"
# Mounting Holes	8

Parts Express Staff Recommended Enclosure Volume
Sealed Volume	2.57ft³
Sealed F3	65.3Hz
Vented Volume	8.139ft³
Vented F3	33.19Hz
