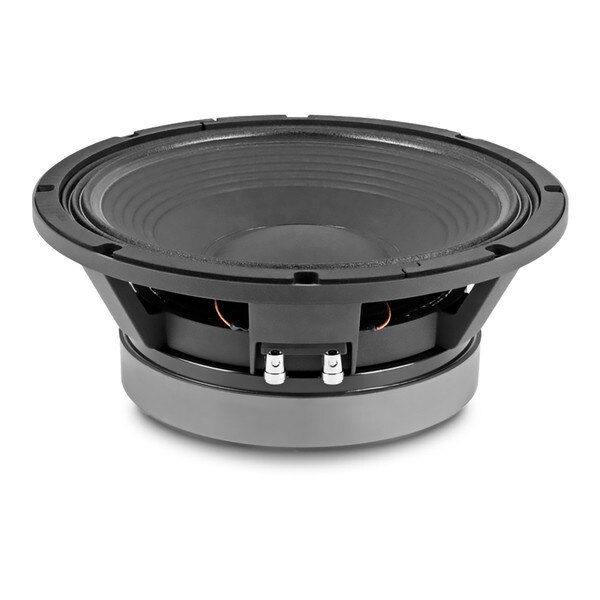

NEW Beyma 12P80Fe/V2 P80 Series 12" Subwoofer 8 Ohm

Beyma
Part #253-006

NEW Beyma 12P80Fe/V2 P80 Series 12" Subwoofer 8 Ohm

Beyma
Part #253-006
Model: 12P80Fe/V2

The Beyma 12P80FeV2 is a 12" woofer engineered for demanding professional audio systems requiring deep, clean low-frequency performance. Featuring a rugged weatherproof cone and extended excursion design, it’s built to deliver powerful bass with clarity and control.

Key Features
  • 4" DUO double-layer in/out aluminum voice coil for enhanced thermal stability
  • Dual-side treated weatherproof cone for outdoor durability
  • ±7.5 mm Xmax for extended linear excursion
  • 52 mm peak-to-peak excursion before damage for mechanical reliability
  • Wide frequency range for flexible low-end application
  • Low harmonic distortion for clean and accurate reproduction
Similar items that may interest you:
See all items in Subwoofer Drivers
NEW $309.75
+ FREE SHIPPING
MSRP: $413.00
Save $103.25 (25%)
Bulk Pricing
Order in the next 0 hr 27 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Beyma 12P80Fe/V2 P80 Series 12" Subwoofer 8 Ohm

12P80Fe/V2 P80 Series 12" Subwoofer 8 Ohm

The 12P80FeV2 delivers powerful low-frequency output with the precision and strength required in high-performance audio setups. Its 4" DUO aluminum voice coil uses a double-layer in/out winding design that enhances heat dissipation while maintaining consistent performance under high load. The weatherproof cone is treated on both sides, making it well-suited for use in outdoor or challenging environments without sacrificing sound quality. With ±7.5 mm Xmax and a peak-to-peak excursion of 52 mm before damage, the driver offers a wide margin for clean bass reproduction and mechanical protection at high volume. A low resonant frequency of 48 Hz adds weight to the bottom end, and its low harmonic distortion keeps the output tight and transparent, making the 12P80FeV2 a solid choice for portable systems, stage monitors, and compact bass cabinets.

Product Details

BrandBeyma
Model12P80Fe/V2
Part Number253-006
UPC8435469043213
Unit of MeasureEach
Weight26.9

Product Specifications

Nominal Diameter12"
Bolt Circle Diameter11.7
Power Handling (RMS)700 Watts
Power Handling (MAX)1400 Watts
Impedance8Ω
Frequency Response50 to 4,000Hz
Sensitivity99dB 2.83V/1m
Voice Coil Diameter4"

Thiele-Small Parameters

Resonant Frequency (Fs)48Hz
DC Resistance (Re)5Ω
Voice Coil Inductance (Le)1.1mH
Mechanical Q (Qms)6.5
Electromagnetic Q (Qes)0.22
Total Q (Qts)0.21
Compliance Equivalent Volume (Vas)2.15ft³
Mechanical Compliance of Suspension (Cms)143mm/N
BL Product (BL)23T·m
Diaphragm Mass Inc. Airload (Mms)0.076g
Maximum Linear Excursion (Xmax)7.5mm
Surface Area of Cone (Sd)0.055cm²

Materials of Construction

Cone MaterialPaper-Treated Paper
Voice Coil Wire MaterialAluminum

Mounting Information

Overall Outside Diameter12.3"
Baffle Cutout Diameter11.1"
Depth5.3"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.132ft³
Sealed F3191.8Hz
Vented Volume0.282ft³
Vented F3122.1Hz
