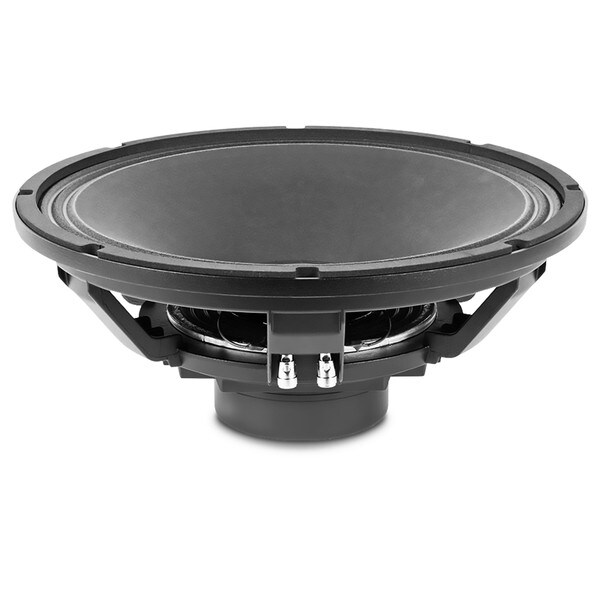

NEW Beyma 15P80Nd P80 Series 15" Neo Subwoofer 8 Ohm

Beyma
Part #253-009

NEW Beyma 15P80Nd P80 Series 15" Neo Subwoofer 8 Ohm

Beyma
Part #253-009
Model: 15P80Nd

The Beyma 15P80Nd is a lightweight 15" woofer built for professional systems that demand deep bass and effortless portability. With a neodymium magnet structure and long-excursion suspension, it’s ideal for high-output enclosures used in mobile and touring rigs.

Key Features
  • 4" DUO aluminum voice coil with in/out windings improves heat dissipation
  • Dual-side weatherproof cone treatment guards against moisture and wear
  • ±7.5 mm Xmax supports clean, extended cone travel
  • 15 mm mechanical excursion limit offers protection against overdrive
  • FEA-optimized neodymium motor for high efficiency and reduced weight
  • Forced convection cooling system helps prevent power compression
  • Conex spider improves mechanical control and long-term consistency
NEW $510.75
+ FREE SHIPPING
MSRP: $681.00
Save $170.25 (25%)
Bulk Pricing
Order in the next 0 hr 26 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Beyma 15P80Nd P80 Series 15" Neo Subwoofer 8 Ohm

15P80Nd P80 Series 15" Neo Subwoofer 8 Ohm

The 15P80Nd is built to deliver serious low-frequency energy without weighing down the cabinet. Its neodymium motor system reduces overall driver mass while maintaining a powerful magnetic field, making it an excellent choice for portable PA systems or touring subwoofers. A 4" DUO aluminum coil, wound on both inner and outer layers, boosts thermal handling while maintaining precise cone control even at high volumes. The driver is also designed for reliability, with a Conex spider for consistent compliance and a forced-air convection circuit that helps reduce power compression during long sets. Finished with weatherproof cone treatment on both sides, the 15P80Nd stands up to the rigors of live environments while delivering extended, articulate bass with minimal distortion.

Solid Line: On Axis
Dotted Line: Off Axis

Product Details

BrandBeyma
Model15P80Nd
Part Number253-009
UPC8435469043824
Unit of MeasureEach
Weight15.4

Product Specifications

Nominal Diameter15"
Bolt Circle Diameter14.6
Power Handling (RMS)800 Watts
Power Handling (MAX)1600 Watts
Impedance8Ω
Frequency Response40 to 4,000Hz
Sensitivity101dB 2.83V/1m
Voice Coil Diameter4"

Thiele-Small Parameters

Resonant Frequency (Fs)39Hz
DC Resistance (Re)5.1Ω
Voice Coil Inductance (Le)0.8mH
Mechanical Q (Qms)5.1
Electromagnetic Q (Qes)0.22
Total Q (Qts)0.21
Compliance Equivalent Volume (Vas)6.5ft³
Mechanical Compliance of Suspension (Cms)168mm/N
BL Product (BL)23.8T·m
Diaphragm Mass Inc. Airload (Mms)0.098g
Maximum Linear Excursion (Xmax)7.5mm
Surface Area of Cone (Sd)0.088cm²

Materials of Construction

Cone MaterialPaper-Treated Paper
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter15.3"
Baffle Cutout Diameter13.9"
Depth6.3"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.391ft³
Sealed F3157.3Hz
Vented Volume0.833ft³
Vented F3100.3Hz
