Model: 12P80Nd/V2

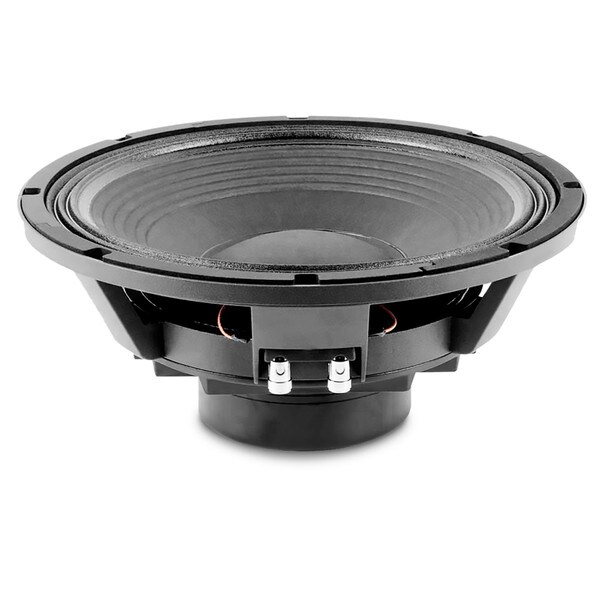

The Beyma 12P80NdV2 is a 12" woofer built for professional systems where powerful bass, lightweight design, and reliability are critical. With its neodymium motor, weather-sealed cone, and long-excursion suspension, it's ideal for high-output applications in portable or touring setups.

Key Features
  • 4" DUO aluminum voice coil with in/out winding for thermal efficiency
  • Double-sided weatherproof cone treatment for added environmental resistance
  • ±7.5 mm linear excursion for deep, distortion-free bass
  • 52 mm peak excursion before damage for high mechanical tolerance
  • Minimal harmonic distortion for clean, articulate sound
  • Conex spider enhances suspension control and durability
Similar items that may interest you:
See all items in Subwoofer Drivers
NEW $474.75
+ FREE SHIPPING
MSRP: $633.00
Save $158.25 (25%)
Bulk Pricing
Order in the next 0 hr 27 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Beyma 12P80Nd/V2 P80 Series 12" Neo Subwoofer 8 Ohm

12P80Nd/V2 P80 Series 12" Neo Subwoofer 8 Ohm

The 12P80NdV2's 700 W AES power handling capacity enables it to manage substantial input levels, making it suitable for demanding environments. Its high sensitivity of 100 dB (1W/1m) allows for efficient and clear dynamic sound. The 4" DUO double-layer in/out aluminum voice coil enhances thermal stability and durability, contributing to consistent performance over time. The weatherproof cone, treated on both sides, offers increased resilience against environmental factors, ensuring longevity and reliability. The transducer's extended controlled displacement, with an Xmax of ±7.5 mm, allows for greater cone movement, enabling the driver to produce deeper bass frequencies without distortion. With a peak-to-peak excursion before damage of 52 mm, the 12P80NdV2 can handle significant mechanical stress, ensuring longevity even under high-demand conditions. Its wide usable frequency range and low harmonic distortion make it suitable for various applications, delivering clear and accurate sound reproduction. Additionally, the inclusion of a Conex spider provides enhanced mechanical compliance, further improving the driver's performance and reliability.​

Solid Line: On Axis
Dotted Line: 45° Off Axis

Product Details

BrandBeyma
Model12P80Nd/V2
Part Number253-007
UPC8435469043244
Unit of MeasureEach
Weight13.9

Product Specifications

Nominal Diameter12"
Bolt Circle Diameter11.7
Power Handling (RMS)700 Watts
Power Handling (MAX)1400 Watts
Impedance8Ω
Frequency Response50 to 4,000Hz
Sensitivity100dB 2.83V/1m
Voice Coil Diameter4"

Thiele-Small Parameters

Resonant Frequency (Fs)47Hz
DC Resistance (Re)5Ω
Voice Coil Inductance (Le)0.9mH
Mechanical Q (Qms)5.2
Electromagnetic Q (Qes)0.2
Total Q (Qts)0.19
Compliance Equivalent Volume (Vas)2.3ft³
Mechanical Compliance of Suspension (Cms)152mm/N
BL Product (BL)23.7T·m
Diaphragm Mass Inc. Airload (Mms)0.074g
Maximum Linear Excursion (Xmax)7.5mm
Surface Area of Cone (Sd)0.055cm²

Materials of Construction

Cone MaterialPaper-Treated Paper
Voice Coil Wire MaterialAluminum

Mounting Information

Overall Outside Diameter12.3"
Baffle Cutout Diameter11.1"
Depth5.2"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.114ft³
Sealed F3207.5Hz
Vented Volume0.236ft³
Vented F3134.1Hz
