  • Beyma 15P80Fe/N P80 Series 15" Subwoofer 8 Ohm

NEW Beyma 15P80Fe/N P80 Series 15" Subwoofer 8 Ohm

Beyma
Part #253-008

NEW Beyma 15P80Fe/N P80 Series 15" Subwoofer 8 Ohm

Beyma
Part #253-008
Model: 15P80Fe/N

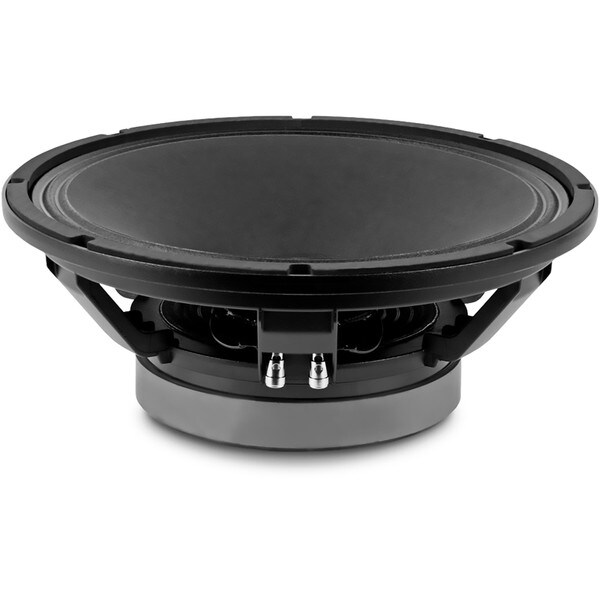

The Beyma 15P80Fe/N is a 15" low-frequency transducer designed for high-efficiency and horn-loaded systems, delivering powerful bass performance with precision. Its robust construction and advanced features make it ideal for demanding professional applications.

Key Features
  • 4" DUO double-layer in/out voice coil enhances thermal stability​
  • Weatherproof treatment on both sides of the cone increases durability​
  • Extended controlled displacement with ±7.5 mm Xmax allows for greater cone movement​
  • 52 mm peak-to-peak excursion before damage ensures reliability under high-demand conditions​
  • FEA-optimized magnetic circuit improves performance​
  • Forced air convection circuit reduces power compression​
  • CONEX spider provides higher resistance and consistency​
Similar items that may interest you:
See all items in Subwoofer Drivers
NEW $378.00
+ FREE SHIPPING
MSRP: $504.00
Save $126.00 (25%)
Bulk Pricing
Order in the next 1 hr 18 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Beyma 15P80Fe/N P80 Series 15" Subwoofer 8 Ohm

15P80Fe/N P80 Series 15" Subwoofer 8 Ohm

The 15P80Fe/N's 800 W AES power handling capacity enables it to manage substantial input levels, promising a significant output. Its high sensitivity of 101 dB allows for efficient conversion of electrical signals into clear and dynamic sound output. The 4" DUO double-layer in/out voice coil enhances thermal stability and durability, contributing to consistent performance over time. The weatherproof treatment applied to both sides of the cone offers increased resilience against environmental factors, ensuring longevity and reliability. The transducer's extended controlled displacement, with an Xmax of ±7.5 mm, allows for greater cone movement, enabling the driver to produce deeper bass frequencies without distortion. With a peak-to-peak excursion before damage of 52 mm, the 15P80Fe/N can handle significant mechanical stress, ensuring longevity even under high-demand conditions. The FEA-optimized magnetic circuit improves performance by providing a more efficient and focused magnetic field. The forced air convection circuit reduces power compression, maintaining consistent performance during extended use. Additionally, the CONEX spider provides higher resistance and consistency, further enhancing the driver's durability and reliability.​

Product Details

BrandBeyma
Model15P80Fe/N
Part Number253-008
UPC8435469043817
Unit of MeasureEach
Weight29.7

Product Specifications

Nominal Diameter15"
Bolt Circle Diameter14.6
Power Handling (RMS)800 Watts
Power Handling (MAX)1600 Watts
Impedance8Ω
Frequency Response30 to 4,000Hz
Sensitivity101dB 2.83V/1m
Voice Coil Diameter4"

Thiele-Small Parameters

Resonant Frequency (Fs)32Hz
DC Resistance (Re)5.3Ω
Voice Coil Inductance (Le)1.2mH
Mechanical Q (Qms)5.5
Electromagnetic Q (Qes)0.19
Total Q (Qts)0.18
Compliance Equivalent Volume (Vas)10.77ft³
Mechanical Compliance of Suspension (Cms)279mm/N
BL Product (BL)22.1T·m
Diaphragm Mass Inc. Airload (Mms)0.088g
Maximum Linear Excursion (Xmax)7.5mm
Surface Area of Cone (Sd)0.088cm²

Materials of Construction

Cone MaterialPaper-Treated Paper

Mounting Information

Overall Outside Diameter15.3"
Baffle Cutout Diameter13.8"
Depth6.5"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.484ft³
Sealed F3148.2Hz
Vented Volume0.986ft³
Vented F396.43Hz
