B&C 12PS100 12" Woofer

B&C SpeakersPart # 294-665
Model: 12PS100
The B&C Speakers 12PS100 12" woofer is designed and built to provide reliable, high impact bass when deployed in demanding professional applications.

Key Features

  • 1,400 watt continuous program power
  • 4" copper voice coil
  • 93 dB 1w/1m sensitivity
  • Ribbed cone and linear triple-roll suspension
  • High Xmax for more bass output
Similar items that may interest you:
Eminence Kappa Pro-12A 12" Cast Frame Driver
Price: $174.99Part # 290-424
See all items in Pro Woofers, Subwoofers & Midrange Speakers
Your Price: $288.86
+ FREE SHIPPING
MSRP: $481.44
Save $192.58 (40%)
Bulk Pricing
Only 1 In Stock More due any day
Get Notified When Available

We'll send you an email when B&C 12PS100 12" Woofer is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

B&C 12PS100 12" Woofer

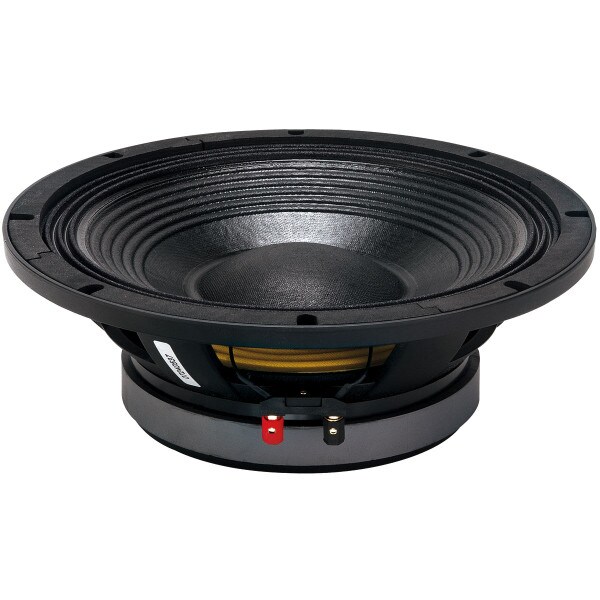

The B&C 12PS100 12" pro woofer's 4" copper voice coil is wound inside-outside on a fiberglass former and features a generous 21 mm winding length for extended Xmax. A ribbed cone and triple-roll suspension function with total linearity and mechanical integrity, making the 12PS100 especially well suited to woofer duty in high output 2-way professional PA speakers and floor monitors.

Product Details

BrandB&C Speakers
Model12PS100
Part Number294-665
UPC844632002120
Unit of MeasureEach
Weight20.7

Product Specifications

Nominal Diameter12"
Bolt Circle Diameter11.8
Power Handling (RMS)1400 Watts
Impedance
Frequency Response45 to 1,000Hz
Sensitivity93dB 2.83V/1m
Voice Coil Diameter4"

Thiele-Small Parameters

Resonant Frequency (Fs)44Hz
DC Resistance (Re)5.3Ω
Voice Coil Inductance (Le)2mH
Mechanical Q (Qms)3.9
Electromagnetic Q (Qes)0.29
Total Q (Qts)0.27
Compliance Equivalent Volume (Vas)1.6ft³
BL Product (BL)22.5T·m
Diaphragm Mass Inc. Airload (Mms)106g
Maximum Linear Excursion (Xmax)8mm
Surface Area of Cone (Sd)531cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter12.5"
Baffle Cutout Diameter11.1"
Depth4.6"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.4ft³
Sealed F3133.1Hz
Vented Volume1.5ft³
Vented F348.4Hz
