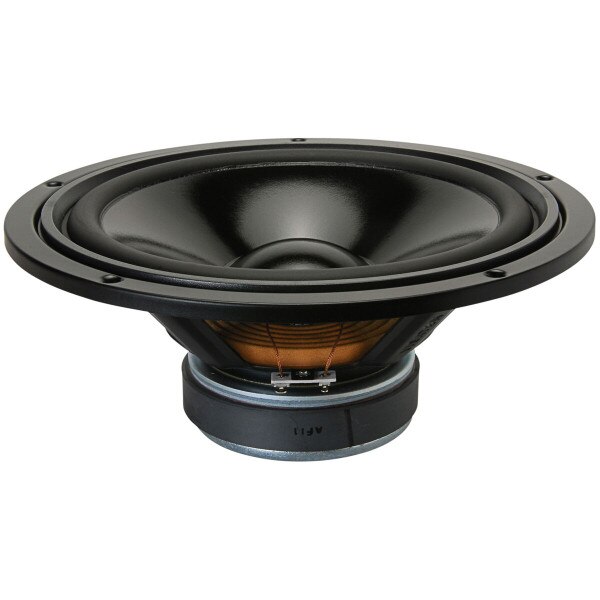

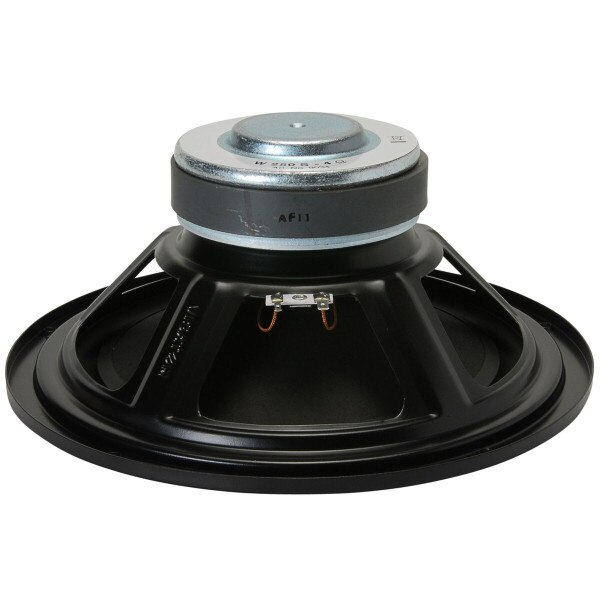

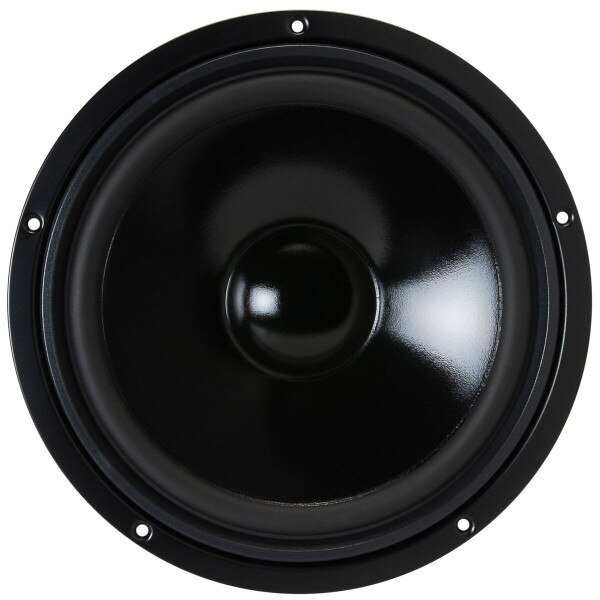

Visaton W250S-4 10" Woofer with Treated Paper Cone 4 Ohm

VisatonPart # 292-574
Model: W250S - 4
The 9034 W250S 10" woofer from Visaton delivers amazing performance not normally found in drivers this size at this price point. A low Qts allows you to get very deep bass in a reasonably sized ported enclosure.

Key Features

  • Very flat frequency response for easy system integration
  • Great for use as a HiFi woofer or as a subwoofer
  • 4-ohm impedance for car audio compatibility
  • Great sensitivity combined with low Fs and Qts for high performance
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Your Price: $110.98
+ FREE SHIPPING
MSRP: $131.99
Save $21.01 (16%)
Bulk Pricing
Quantity:Qty: 1-9 $110.98/ea
Quantity:Qty: 10-24 $107.92/ea
Quantity:Qty: 25+ $103.66/ea
In Stock
Get Notified When Available

We'll send you an email when Visaton W250S-4 10" Woofer with Treated Paper Cone 4 Ohm is back in stock or available for preorder.

Order in the next 14 hr 17 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton W250S-4 10" Woofer with Treated Paper Cone 4 Ohm

Visaton's 9034 W250S 10" woofer features a coated paper cone, durable rubber surround, and a bumped back plate to allow all 5 mm of Xmax to be used with an excursion limit of ±7 mm. A balanced design approach between sensitivity, smooth frequency response (cross it over as high as 2,500 Hz), and extended bass allows this driver to be used as a high-output HiFi woofer in three-way speaker systems or as a subwoofer. The 4-ohm impedance allows this driver to be used in most car audio systems.

Note: For best bass performance, install the W250S into one of the following cabinets:
• A 1.77 cubic foot cabinet tuned to 43 Hz with two 2-1/2" diameter ports that are 5-3/4" long.
• A 2.47 cubic foot cabinet tuned to 39 Hz with two 2-1/2" diameter ports that are 5-3/4" long.
• A 3.53 cubic foot cabinet tuned to 34 Hz with two 2-1/2" diameter ports that are 3-15/16" long.

Product Details

BrandVisaton
ModelW250S - 4
Part Number292-574
Unit of MeasureEach
Weight7.716

Product Specifications

Nominal Diameter10"
Power Handling (RMS)100 Watts
Power Handling (MAX)150 Watts
Impedance4Ω
Frequency Response33 to 5,500Hz
Sensitivity90dB 2.83V/1m
Voice Coil Diameter1.375"

Thiele-Small Parameters

Resonant Frequency (Fs)33Hz
DC Resistance (Re)3.6Ω
Voice Coil Inductance (Le)0.93mH
Mechanical Q (Qms)2.01
Electromagnetic Q (Qes)0.43
Total Q (Qts)0.35
Compliance Equivalent Volume (Vas)4.77ft³
Maximum Linear Excursion (Xmax)5mm

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialRubber

Mounting Information

Overall Outside Diameter11.14"
Baffle Cutout Diameter9.2"
Depth4.41"

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1.25ft³
Sealed F374.7Hz
Vented Volume1.75ft³
Vented F342.4Hz
