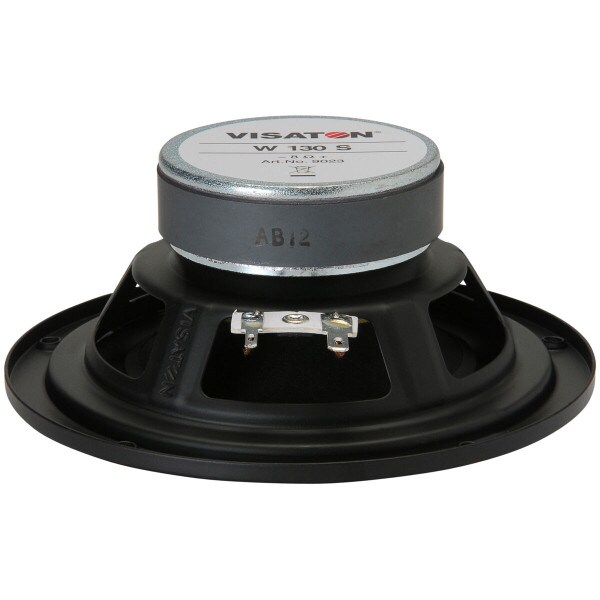

Visaton W130S-8 5" Woofer with Treated Paper Cone 8 Ohm

Visaton
Part #292-564

Visaton W130S-8 5" Woofer with Treated Paper Cone 8 Ohm

Visaton
Part #292-564
Model: W130S - 8
The 9023 W130S 5" woofer from Visaton delivers amazing bass, Xmax, and midrange performance not normally found in 5" drivers at its price point.
Key Features
  • Relatively flat frequency response from 80 to 4,000 Hz
  • Able to play below 40 Hz in a proper vented cabinet
  • Great power handling and Xmax
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Your Price: $38.23
MSRP: $45.99
Save $7.76 (17%)
Bulk Pricing
Quantity:Qty: 1-9 $38.23/ea
Quantity:Qty: 10-24 $37.09/ea
Quantity:Qty: 25+$35.50/ea
Order in the next 3 hr 58 min to ship today. Details

Only 3 In Stock

More due any day
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton W130S-8 5" Woofer with Treated Paper Cone 8 Ohm

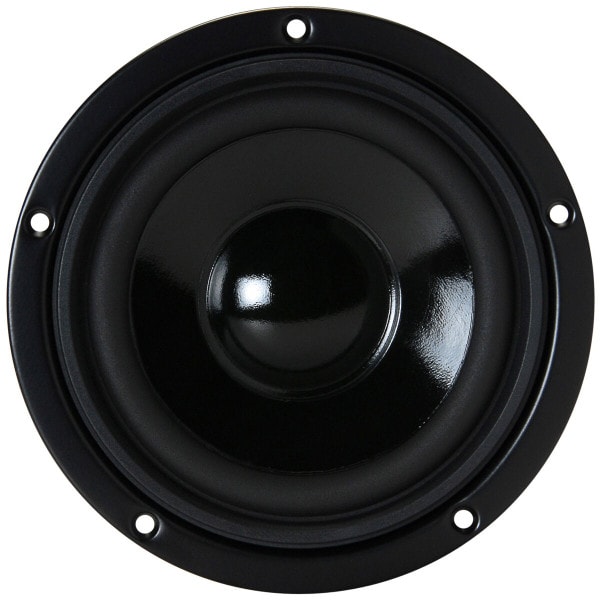

Visaton's 9023 W130S 5" woofer features a coated paper cone and durable rubber surround. A very balanced frequency response allows the W130S to be used as a woofer in small 2-way speakers or a midbass/midrange in 3-way speakers, with a crossover point as high as 4,000 Hz. This allows you to build a surround sound system with large speakers for front and left, while maintaining the same voicing in smaller surround satellite speakers.

Note: For best bass performance, install the W130S into one of the following cabinets:
• A 0.25 cubic foot sealed cabinet (F3 is 86 Hz with a Qtc of 0.75).
• A 0.71 cubic foot cabinet tuned to 44 Hz with a 1-1/4" diameter port that is 1-9/16" long.
• A 1.06 cubic foot cabinet tuned to 39 Hz with a 2-3/8" diameter port that is 4-3/4"" long.

Product Details

BrandVisaton
ModelW130S - 8
Part Number292-564
Unit of MeasureEach
Weight1.499

Product Specifications

Nominal Diameter5"
Power Handling (RMS)50 Watts
Power Handling (MAX)80 Watts
Impedance8Ω
Frequency Response52 to 12,000Hz
Sensitivity87dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)52Hz
DC Resistance (Re)6Ω
Voice Coil Inductance (Le)0.6mH
Mechanical Q (Qms)2.26
Electromagnetic Q (Qes)0.59
Total Q (Qts)0.47
Compliance Equivalent Volume (Vas)0.42ft³
Maximum Linear Excursion (Xmax)2.25mm

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialRubber

Mounting Information

Overall Outside Diameter5.75"
Baffle Cutout Diameter4.21"
Depth2.09"

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.22ft³
Sealed F387.9Hz
Vented Volume0.48ft³
Vented F348.2Hz
