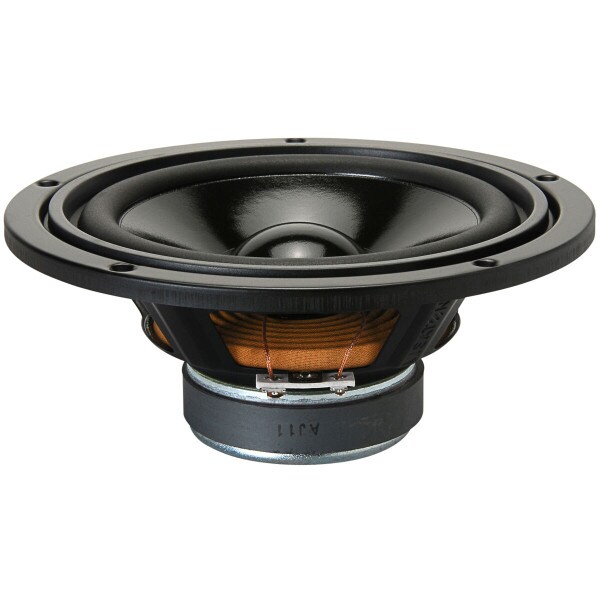

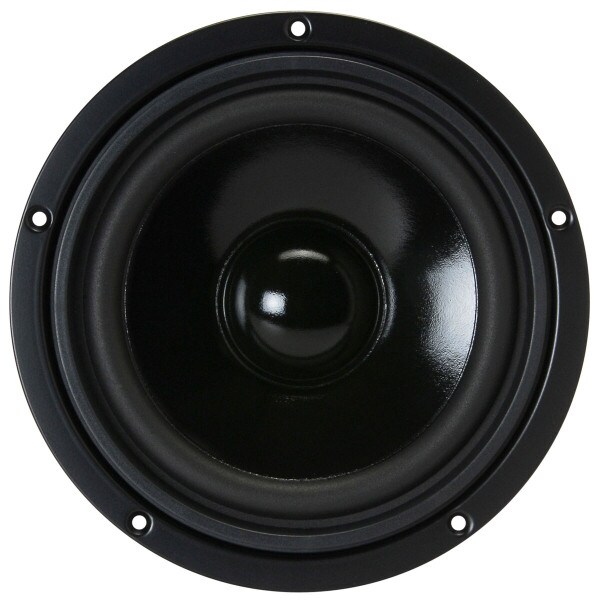

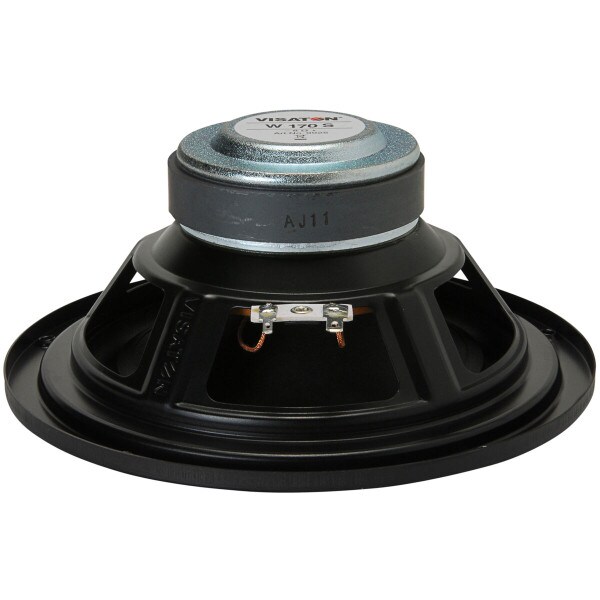

Visaton W170S-8 6.5" Woofer with Treated Paper Cone 8 Ohm

VisatonPart # 292-568
Model: W170S - 8
The 9025 W170S 6.5" woofer from Visaton delivers amazing performance not normally found in drivers this size at this price point. This speaker works equally well as a subwoofer, woofer, midbass... even as a midrange!

Key Features

  • Extremely well balanced woofer
  • 4.25 mm of Xmax and ±10 mm excursion limit for use as a small subwoofer
  • Easy to design into many different speaker systems
  • Amazing bang-for-the-buck performance
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Your Price: $48.49
MSRP: $57.99
Save $9.50 (16%)
Bulk Pricing
Quantity:Qty: 1-9 $48.49/ea
Quantity:Qty: 10-24 $47.04/ea
Quantity:Qty: 25+ $45.02/ea
In Stock
Get Notified When Available

We'll send you an email when Visaton W170S-8 6.5" Woofer with Treated Paper Cone 8 Ohm is back in stock or available for preorder.

Order in the next 0 hr 0 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton W170S-8 6.5" Woofer with Treated Paper Cone 8 Ohm

Visaton's 9025 W170S 6-1/2" woofer features a coated paper cone, durable rubber surround, and a bumped back plate to allow all 4.25 mm of Xmax to be used with an excursion limit of ±10 mm. A very balanced and extended frequency response allows the W170S to be used as a woofer in small two-way speakers or a midbass/midrange in three-way speakers, with a crossover point as high as 6,800 Hz, or even as a small form-factor subwoofer! This allows you to build a surround sound system with large speakers for front and left, while maintaining the same voicing in smaller surround satellite speakers.

Note: For best bass performance, install the W170S into one of the following cabinets:
• A 0.71 cubic foot sealed cabinet (F3 will be 57 Hz with a Qtc of 0.74).
• A 0.71 cubic foot cabinet tuned to 44 Hz with a 2" diameter port that is 5-1/2" long
• A 1.06 cubic foot cabinet tuned to 39 Hz with a 2-1/2" diameter port that is 4-3/4" long.
• A 1.77 cubic foot cabinet tuned to 33 Hz with a 2-1/2" diameter port that is 5-7/8" long.

Product Details

BrandVisaton
ModelW170S - 8
Part Number292-568
Unit of MeasureEach
Weight2.3

Product Specifications

Nominal Diameter6-1/2"
Power Handling (RMS)50 Watts
Power Handling (MAX)80 Watts
Impedance8Ω
Frequency Response36 to 8,000Hz
Sensitivity86dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)36Hz
DC Resistance (Re)5.9Ω
Voice Coil Inductance (Le)1.2mH
Mechanical Q (Qms)2.43
Electromagnetic Q (Qes)0.66
Total Q (Qts)0.52
Compliance Equivalent Volume (Vas)1.34ft³
Maximum Linear Excursion (Xmax)4.25mm

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialRubber

Mounting Information

Overall Outside Diameter7.36"
Baffle Cutout Diameter5.83"
Depth2.91"

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.5ft³
Sealed F358.7Hz
Vented Volume0.8ft³
Vented F342.5Hz
