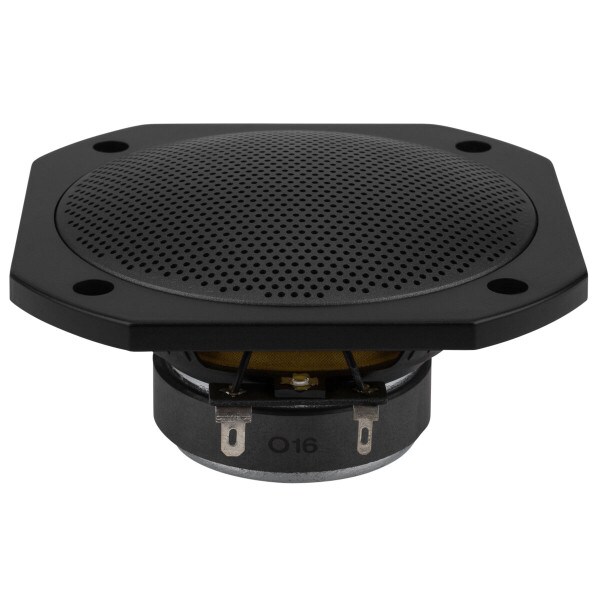

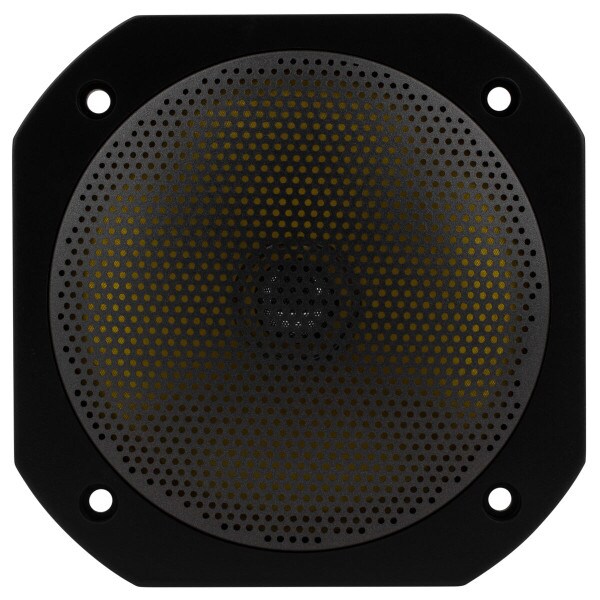

Visaton FRS10WP-8 4" Full Range Saltwater Resistant Driver 8 Ohm Black

VisatonPart # 292-616
Model: FRS10WP-8

The Visaton FRS10WP-8 is a 10 cm (4") full-range driver designed for exceptional durability and performance in challenging environments. Its saltwater-resistant construction, glass fiber cone, and plastic basket make it ideal for outdoor and marine applications. With a balanced frequency response and IP65-rated protection, this speaker is perfect for installations in saunas, swimming pools, boats, and open vehicles.

Key Features

  • IP65 rated for use in saunas, boats, open vehicles, and landscape or outdoor PA speakers
  • Integrated grill protects cone from curious fingers, balls, and other foreign objects
  • Nearly perfect 180° dispersion up to 3,000 Hz for excellent, space filling sound
  • Smooth response from 150 to 13,000 Hz for easy integration in any system
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Similar items that may interest you:
Visaton FR 10-8 4" Full-Range Speaker
Price: $15.97Part # 292-513
See all items in Midrange / Midbass Drivers & Full-Range Speakers
Your Price: $56.44
MSRP: $66.99
Save $10.55 (16%)
Bulk Pricing
Quantity:Qty: 1-9 $56.44/ea
Quantity:Qty: 10-24 $54.76/ea
Quantity:Qty: 25+ $52.40/ea
6 In Stock
Get Notified When Available

We'll send you an email when Visaton FRS10WP-8 4" Full Range Saltwater Resistant Driver 8 Ohm Black is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton FRS10WP-8 4" Full Range Saltwater Resistant Driver 8 Ohm Black

The FRS10WP-8 rugged design ensures reliable performance in demanding outdoor and marine environments, with materials that resist saltwater, high temperatures, and physical impacts. Its balanced frequency response and high efficiency make it suitable for public address systems, vehicle installations, and model boats. Compact and versatile, this full-range driver combines robust construction with exceptional audio quality, ensuring consistent performance even in the harshest conditions.

Technical Data

  • Rated power: 25 W
  • Maximum power: 50 W
  • Nominal impedance Z: 8 Ohm
  • Frequency response: 90–19000 Hz
  • Mean sound pressure level: 90 dB (1 W/1 m)
  • Opening angle (-6 dB): 64°/4000 Hz
  • Excursion limit: +/−3 mm
  • Resonance frequency fs: 190 Hz
  • Magnetic induction: 1.0 T
  • Magnetic flux: 190 µWb
  • Height of front pole-plate: 3 mm
  • Voice coil diameter: 20 mm
  • Height of winding: 5 mm
  • Cutout diameter: 92 mm
  • Net weight: 0.36 kg
  • D.C. resistance Rdc: 6.4 Ohm
  • Mechanical Q factor Qms: 7.6
  • Electrical Q factor Qes: 1.12
  • Total Q factor Qts: 0.98
  • Equivalent volume Vas: 1.9 l
  • Effective piston area Sd: 57 cm²
  • Dynamically moved mass Mms: 3 g
  • Force factor Bxl: 4.3 T m
  • Inductance of the voice coil L: 0.4 mH
  • Connections: 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)
  • Protective System: IP 65*)
  • Temperature range: −40 - 120 °C

Product Details

BrandVisaton
ModelFRS10WP-8
Part Number292-616
Unit of MeasureEach
Weight0.95

Product Specifications

Nominal Diameter4"
Bolt Circle Diameter4.5
Power Handling (RMS)25 Watts
Power Handling (MAX)50 Watts
Impedance
Frequency Response90 to 19,000Hz
Sensitivity90dB 2.83V/1m
Voice Coil Diameter0.75"

Thiele-Small Parameters

Resonant Frequency (Fs)190Hz
DC Resistance (Re)6.4Ω
Voice Coil Inductance (Le)0.4mH
Mechanical Q (Qms)7.6
Electromagnetic Q (Qes)1.21
Total Q (Qts)0.98
Compliance Equivalent Volume (Vas)0.067ft³
Mechanical Compliance of Suspension (Cms)0.234mm/N
BL Product (BL)4.52T·m
Diaphragm Mass Inc. Airload (Mms)3g
Maximum Linear Excursion (Xmax)3mm
Surface Area of Cone (Sd)75.6cm²

Materials of Construction

Cone MaterialFiberglass
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Basket / Frame MaterialPolymer
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter5.25", Across flats: 4.5"
Baffle Cutout Diameter3.5"
Depth1.75"
# Mounting Holes5

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.12ft³
Sealed F3184.2Hz
Vented Volume0.12ft³
Vented F3140.8Hz
