  • Visaton FRS10WP-4 4" Full-Range Saltwater Resistant Driver 4 Ohm White

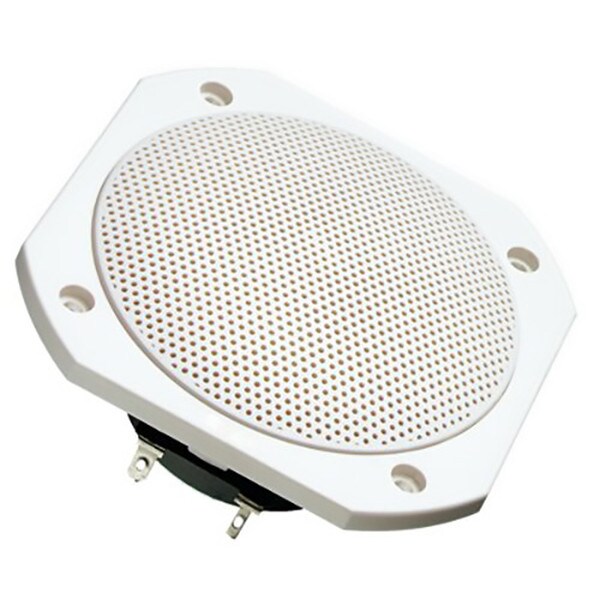

NEW Visaton FRS10WP-4 4" Full-Range Saltwater Resistant Driver 4 Ohm White

VisatonPart # 292-7817
Model: FRS 10 WP

The Visaton FRS10WP-4 is a 10 cm (4") full-range driver designed for exceptional durability and performance in challenging environments. Its saltwater-resistant construction, glass fiber cone, and plastic basket make it ideal for outdoor and marine applications. With a balanced frequency response and IP65-rated protection, this speaker is perfect for installations in saunas, swimming pools, boats, and open vehicles.

Key Features

  • Saltwater-resistant construction for durability in marine and outdoor settings
  • Glass fiber cone and plastic basket for robust environmental resistance
  • Balanced frequency response from 90 Hz to 19,000 Hz for clear and consistent audio
  • High efficiency with 90 dB sound pressure level for powerful output with low power input
  • IP65-rated protection for resistance to dust and water
  • Operating temperature range from −40 to 120 °C for reliable performance in extreme climates
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Similar items that may interest you:
Visaton FR10-4 4" Paper Cone Full-Range Driver 4 Ohm
Price: $19.75Part # 292-700
See all items in Midrange / Midbass Drivers & Full-Range Speakers
NEW $51.90
Bulk Pricing
Quantity:Qty: 1-9 $51.90/ea
Quantity:Qty: 10+ $50.60/ea
In Stock
Get Notified When Available

We'll send you an email when Visaton FRS10WP-4 4" Full-Range Saltwater Resistant Driver 4 Ohm White is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton FRS10WP-4 4" Full-Range Saltwater Resistant Driver 4 Ohm White

The FRS10WP-4 rugged design ensures reliable performance in demanding outdoor and marine environments, with materials that resist saltwater, high temperatures, and physical impacts. Its balanced frequency response and high efficiency make it suitable for public address systems, vehicle installations, and model boats. Compact and versatile, this full-range driver combines robust construction with exceptional audio quality, ensuring consistent performance even in the harshest conditions.

Technical Data

  • Rated power: 25 W
  • Maximum power: 50 W
  • Nominal impedance Z: 4 Ohm
  • Frequency response: 90–19000 Hz
  • Mean sound pressure level: 90 dB (1 W/1 m)
  • Opening angle (-6 dB): 64°/4000 Hz
  • Excursion limit: +/−3 mm
  • Resonance frequency fs: 190 Hz
  • Magnetic induction: 1.0 T
  • Magnetic flux: 190 µWb
  • Height of front pole-plate: 3 mm
  • Voice coil diameter: 20 mm
  • Height of winding: 5 mm
  • Cutout diameter: 92 mm
  • Net weight: 0.36 kg
  • D.C. resistance Rdc: 3.4 Ohm
  • Mechanical Q factor Qms: 8.29
  • Electrical Q factor Qes: 1.02
  • Total Q factor Qts: 0.91
  • Equivalent volume Vas: 2 l
  • Effective piston area Sd: 57 cm²
  • Dynamically moved mass Mms: 2.4 g
  • Force factor Bxl: 3.8 T m
  • Inductance of the voice coil L: 0.2 mH
  • Connections: 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)
  • Protective System: IP 65*)
  • Temperature range: −40 - 120 °C

Product Details

BrandVisaton
ModelFRS 10 WP
Part Number292-7817
Unit of MeasureEach
Weight0.62

Product Specifications

Nominal Diameter4"
Power Handling (RMS)25 Watts
Power Handling (MAX)50 Watts
Impedance
Frequency Response90-19000Hz
Sensitivity90dB 2.83V/1m
Voice Coil Diameter0.79"

Thiele-Small Parameters

Resonant Frequency (Fs)190Hz
DC Resistance (Re)3.4Ω
Voice Coil Inductance (Le)0.2mH
Mechanical Q (Qms)8.29
Electromagnetic Q (Qes)1.02
Total Q (Qts)0.91
Compliance Equivalent Volume (Vas)0.07ft³
BL Product (BL)3.8T·m
Diaphragm Mass Inc. Airload (Mms)2.4g
Maximum Linear Excursion (Xmax)3mm
Surface Area of Cone (Sd)57cm²

Materials of Construction

Cone MaterialFiberglass

Mounting Information

# Mounting Holes4
