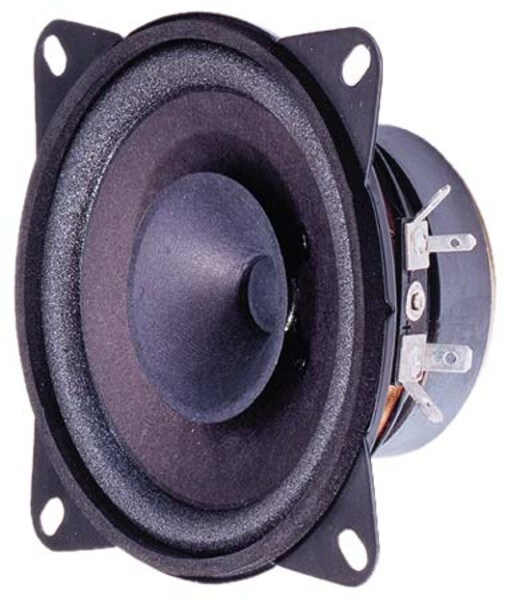

Visaton FR10HM-8 4" Full-Range Driver 8 Ohm

VisatonPart # 292-758
Model: FR10HM-8

The Visaton FR10HM-8 is a 4" full-range speaker, featuring a moisture-resistant membrane, tweeter cone and a European standard basket. Designed for a simple fitting in vehicles with 10 cm cut-outs, this speaker delivers quality sound performance.

Key Features

  • Rated power of 20W and a maximum power of 30W for reliable sound output
  • Broad frequency response of 95–22000 Hz for full-spectrum sound coverage
  • Operates effectively within a temperature range of -25 to 70 °C
  • Simple installation in vehicles and mobile homes with 10 cm speaker cut-outs
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Your Price: $9.88
Bulk Pricing
Quantity:Qty: 1-9 $9.88/ea
Quantity:Qty: 10+ $9.09/ea
25 In Stock
Get Notified When Available

We'll send you an email when Visaton FR10HM-8 4" Full-Range Driver 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton FR10HM-8 4" Full-Range Driver 8 Ohm

Equipped with a moisture-resistant membrane and tweeter cone, this speaker delivers clear, robust sound over a wide frequency range of 95–22000 Hz. The FR10HM-8 has a rated power of 20W and a maximum power of 30W, offering robust audio output to fill your vehicle or mobile home. Crafted with a European standard metal basket, this speaker combines style and durability, making it a reliable choice for any audio system upgrade. Designed for ease of installation, the FR10HM-8 fits simply into vehicles and mobile homes with 10 cm speaker cut-outs. Its efficient design and build ensure it operates effectively within a temperature range of -25 to 70 °C, providing consistent performance in various conditions. With the Visaton FR10HM-8, you get a compact yet powerful speaker that offers remarkable sound quality and durability. Ideal for vehicles and mobile homes, this full-range speaker is designed to elevate your on-the-road audio experience.

Product Details

BrandVisaton
ModelFR10HM-8
Part Number292-758
Unit of MeasureEach
Weight0.7

Product Specifications

Nominal Diameter4"
Power Handling (RMS)20 Watts
Power Handling (MAX)30 Watts
Impedance
Frequency Response95 to 22,000Hz
Sensitivity86dB 2.83V/1m
Voice Coil Diameter0.55"

Thiele-Small Parameters

Resonant Frequency (Fs)120Hz

Mounting Information

Overall Outside Diameter3.94"
Baffle Cutout Diameter3.7"
Depth1.93"
# Mounting Holes4
