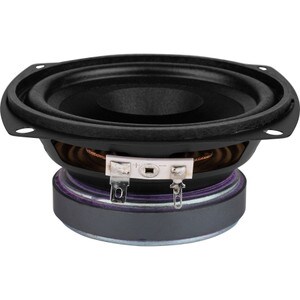

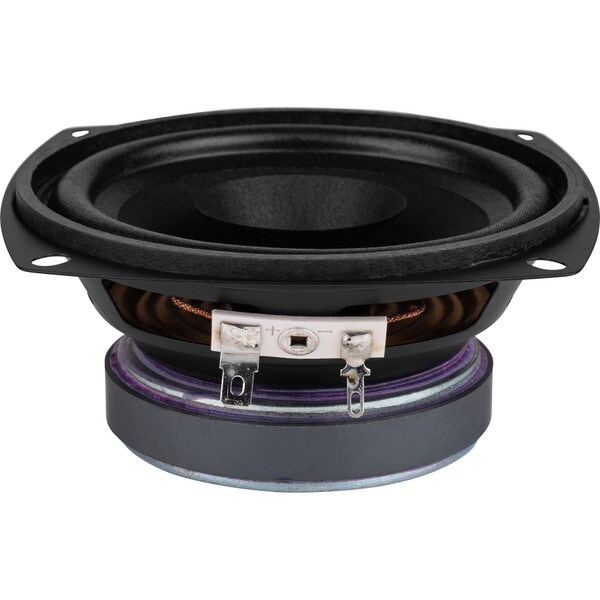

Visaton FR 10-8 4" Full-Range Speaker

VisatonPart # 292-513
Model: FR10-8
Visaton's FR10-8 full-range 4" dual-cone speaker offers great frequency response and sensitivity in a compact package. Great for point-source, single-driver speakers. 8-ohm impedance.

Key Features

  • Smooth response from 80 to 20,000 Hz for true full range performance
  • Perfect for use in open and infinite baffle designs

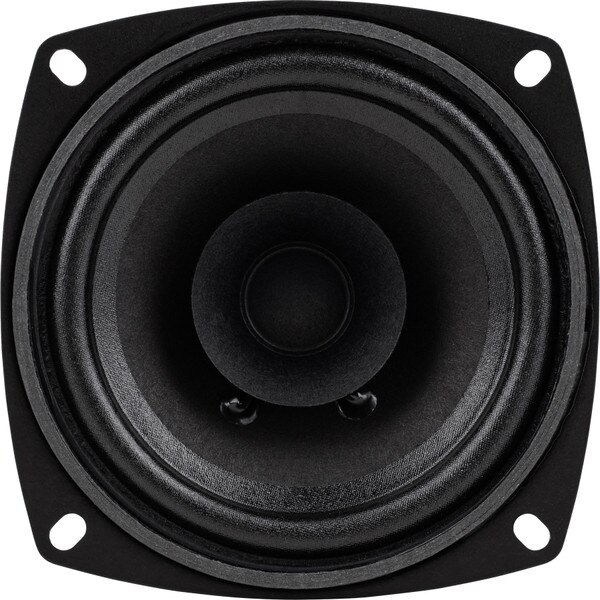

  • Dual cone design delivers perfect time alignment and great off-axis response
  • Common size make this an excellent replacement driver for many applications
Similar items that may interest you:
GRS 4AS-4 4" Dual Cone Speaker 4 Ohm
Price: $7.19Part # 292-454
Dayton Audio PC105-8 4" Full-Range Poly Cone Driver
Price: $17.79Part # 295-160
See all items in Midrange / Midbass Drivers & Full-Range Speakers
Your Price: $15.97
MSRP: $18.99
Save $3.02 (16%)
Bulk Pricing
Quantity:Qty: 1-9 $15.97/ea
Quantity:Qty: 10-24 $15.50/ea
Quantity:Qty: 25+ $14.84/ea
11 In Stock
Get Notified When Available

We'll send you an email when Visaton FR 10-8 4" Full-Range Speaker is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton FR 10-8 4" Full-Range Speaker

The FR10-8 4" dual cone full-range speaker from Visaton provides uniform frequency response and a surprising amount of low-frequency output. The 0.67 Qts motor is designed to offer optimal bass response when used in infinite baffle and open back applications, such as automotive car door speakers, ceiling and wall mounted speakers, and is perfect for use in open baffle designs. The whizzer cone design offers seamless time alignment when compared to multi-way speakers and provides superior off-axis performance.

Product Details

BrandVisaton
ModelFR10-8
Part Number292-513
Unit of MeasureEach
Weight0.9

Product Specifications

Nominal Diameter4"
Bolt Circle Diameter4.5
Power Handling (RMS)30 Watts
Power Handling (MAX)50 Watts
Impedance8Ω
Frequency Response80-20,000Hz
Sensitivity86dB 2.83V/1m
Voice Coil Diameter0.75"

Thiele-Small Parameters

Resonant Frequency (Fs)90Hz
DC Resistance (Re)7.2Ω
Voice Coil Inductance (Le)0.2mH
Mechanical Q (Qms)2.29
Electromagnetic Q (Qes)0.95
Total Q (Qts)0.67
Compliance Equivalent Volume (Vas)0.081ft³
Mechanical Compliance of Suspension (Cms)0.648mm/N
BL Product (BL)4.6T·m
Diaphragm Mass Inc. Airload (Mms)5.7g
Maximum Linear Excursion (Xmax)4mm
Surface Area of Cone (Sd)50cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Basket / Frame MaterialSteel

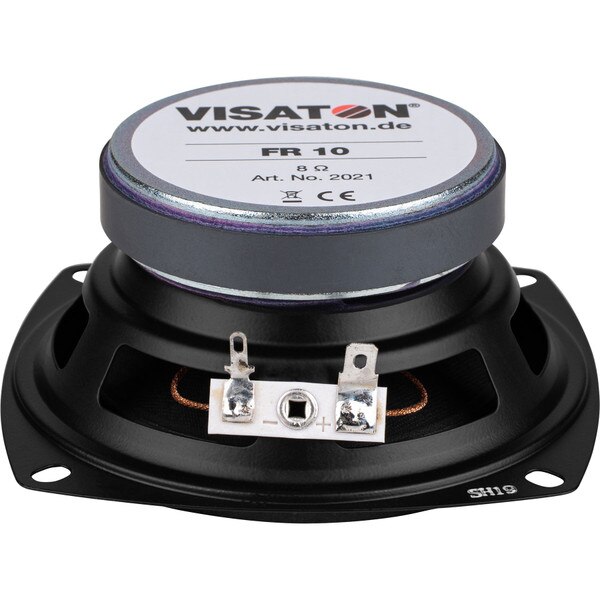

Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter4.13"
Baffle Cutout Diameter3.6"
Depth1.85"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.16ft³
Sealed F3107.2Hz
Vented Volume0.16ft³
Vented F371.8Hz
