Tang Band T1-1942S Speaker Module 5-1/4" x 2-1/8"

Name: Tang Band T1-1942S Speaker Module 5-1/4" x 2-1/8"
Brand: Tang Band
SKU: 264-946
Price: 42.1 USD
Availability: OutOfStock

2 Questions, 8 Answers or

Tang Band

Part #264-946

Tang Band T1-1942S Speaker Module 5-1/4" x 2-1/8"

Tang Band

Part #264-946

Model: T1-1942S

2 Questions, 8 Answers or

2-1/2 in. x 1-1/8 in.2-5/32 in. x 1 in.3-1/2 in. x 1-1/2 in.3-1/2 in. x 1-1/2 in.3-1/2 in. x 1-7/16 in.5-7/16 in. x 2-3/16 in.5-1/4 in. x 2-1/8 in.5-1/4 in. x 2-1/8 in.

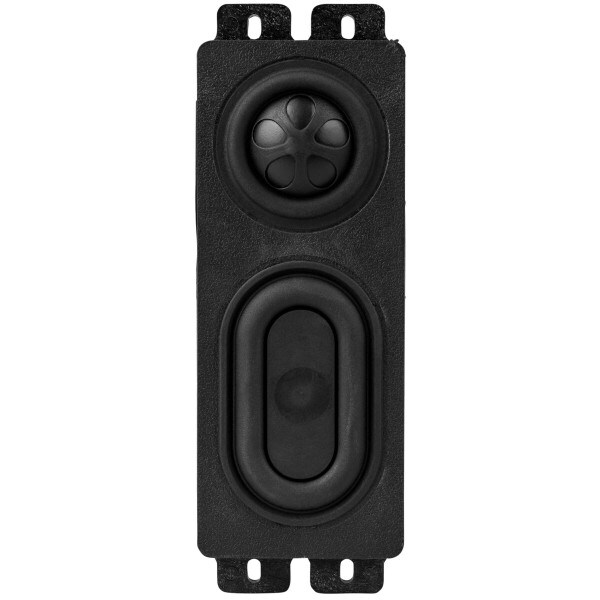

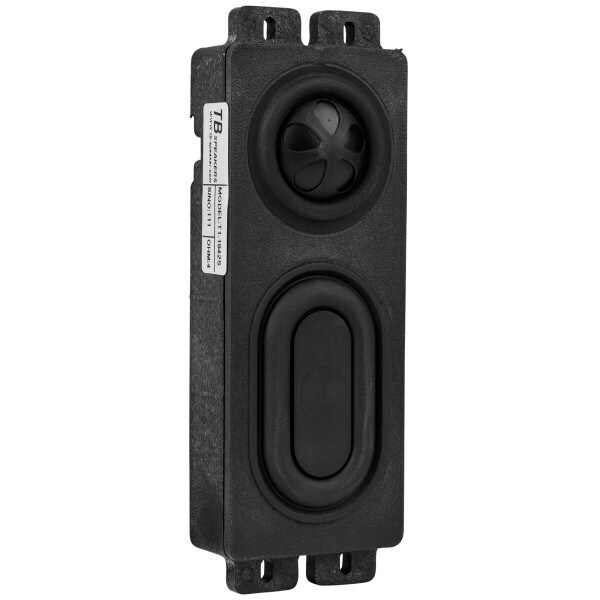

Tang Band's T1-1942S features a passive radiator-assisted, polypropylene 46 mm driver that plays from 105 to 20,000 Hz in an ultra-small package so that you can design modern speakers never before thought possible.

Key Features

46 mm polypropylene-composite inverted dome driver
Plays down to 80 Hz through the use of a passive radiator
Self-contained 6.06" H x 2.13" W x 1.19" D design
The easiest way to add audio capability to almost anything
This item available through special order only. Minimum order quantity is 50 pieces

See all items in Speaker Modules

Your Price: $42.10

+ FREE SHIPPING

MSRP: $63.99

Bulk Pricing

Quantity:Qty: 50+ $42.10/ea

Out of Stock

Get Notified When Available

We'll send you an email when Tang Band T1-1942S Speaker Module 5-1/4" x 2-1/8" is back in stock or available for preorder.

Ships in 90-120 days, minimum order quantity 50 pcs.

Alert Me When Available

Free Shipping available on orders over $99.00 in the US. Details

60 Day No Hassle Return Policy

Frequently Bought Together

2.1 Hi-Fi Class D Audio Amplifier Board 2 x 15W + 30W 10-18 VDC	$15.98
Lead-Free 4% Silver Solder 1.0 mm (0.040") 1/2 lb. Spool	$52.49
Stahl Tools STSSVT Variable Temperature Soldering Iron Station	$19.98

Total Price: $88.45

This Product:Tang Band T1-1942S Speaker Module 5-1/4" x 2-1/8"$42.10

2.1 Hi-Fi Class D Audio Amplifier Board 2 x 15W + 30W 10-18 VDC$15.98

Lead-Free 4% Silver Solder 1.0 mm (0.040") 1/2 lb. Spool$52.49

Stahl Tools STSSVT Variable Temperature Soldering Iron Station$19.98

4 ItemsTotal Price: $88.45

Overview

Tang Band T1-1942S Speaker Module 5-1/4" x 2-1/8"

This item available through special order only. Minimum order quantity is 50 pieces

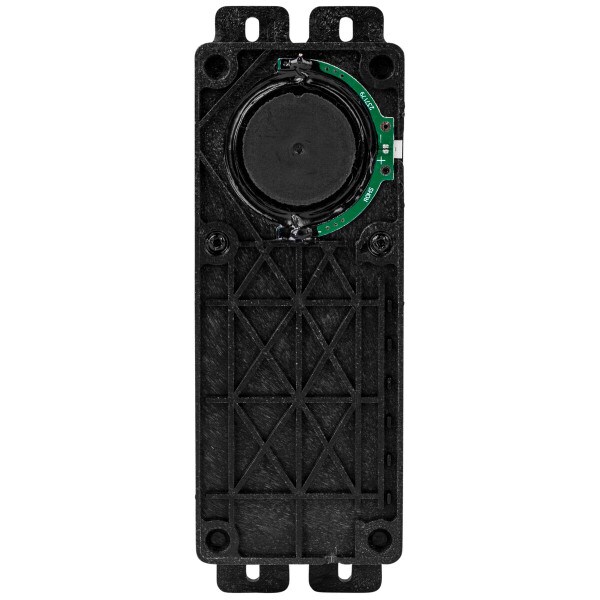

The T1-1942S speaker module from Tang Band and is built around a passive radiator assisted, polypropylene-composite 46 mm dome driver. This allows for a very full frequency response from a single, small driver. Advantages of this type of speaker design include the elimination of crossover components in the critical midrange, superb off-axis response due to the use of a small driver (without hot spots), and perfect time-alignment.

Tang Band's line of patented speaker modules are designed for modern audio applications such as sound bars, desktop multimedia speakers, flat panel tv speakers, and portable audio systems. Don't let Tang Band's diminutive driver modules fool you; each is built with a passive radiator that extends midbass frequency response, allowing these to mate to a subwoofer system quite easily.

Note: Tang Band recommends the use of a 2nd order (-12 dB/octave) 80 Hz high pass filter for the best possible sound. Higher power handling and output is possible through the use of multiple modules.

Product Details
Brand	Tang Band
Model	T1-1942S
Part Number	264-946
UPC	848864043739
Unit of Measure	Each
Weight	0.45

Product Specifications
Power Handling (RMS)	4 Watts
Power Handling (MAX)	8 Watts
Impedance	4Ω
Frequency Response	78 to 20,000Hz
Sensitivity	81dB 2.83V/1m

Materials of Construction
Cone Material	Poly Composite
Surround Material	Rubber
Basket / Frame Material	Polymer
Magnet Material	Neodymium

Mounting Information
Overall Outside Diameter	5.25" (With mounting tabs: 6.06") x 2.125"
Depth	1.19"
# Mounting Holes	4
