Tang Band T1-1925S Speaker Module 2-1/2" x 1-1/8"

Tang BandPart # 264-944
Model: T1-1925S

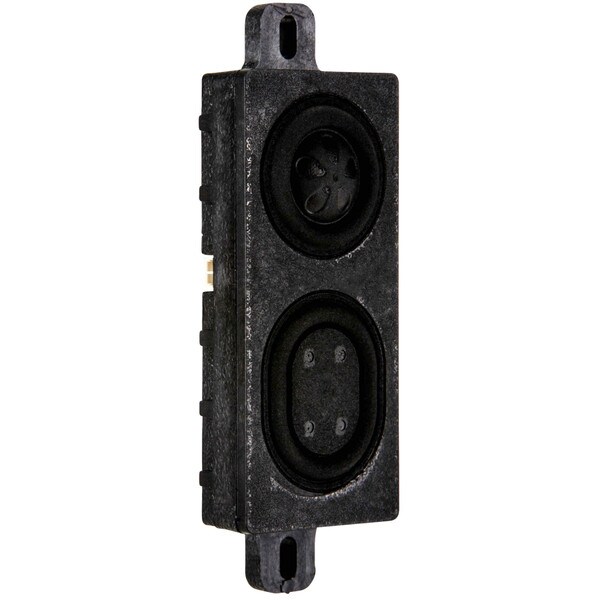

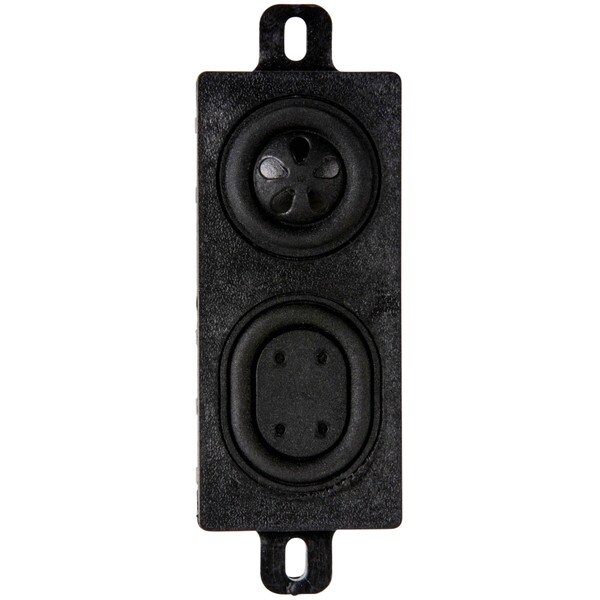

Tang Band's T1-1925S features a passive radiator-assisted 1" driver that plays from 150 to 20,000 Hz in a tiny 2.56" x 1.14" package. Design modern speakers never before thought possible.

Key Features

  • Ideal for adding high quality audio to almost any small project
  • 1" polypropylene-composite inverted dome driver
  • Small, oval passive radiator extends response to 150 Hz
  • Tiny 2.56" H x 1.14" W x 0.56" D self-contained design
Your Price: $29.99
MSRP: $39.99
Save $10.00 (25%)
Bulk Pricing
Quantity:Qty: 1-3 $29.99/ea
Quantity:Qty: 4+ $28.75/ea
In Stock
Get Notified When Available

We'll send you an email when Tang Band T1-1925S Speaker Module 2-1/2" x 1-1/8" is back in stock or available for preorder.

Order in the next 0 hr 18 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Tang Band T1-1925S Speaker Module 2-1/2" x 1-1/8"

Tang Band's T1-1925S features a passive radiator-assisted 1" driver that plays from 150 to 20,000 Hz in a tiny 2.56" by 1.14" package. Design modern speakers never before thought possible.

Tang Band's line of patented speaker modules are designed for modern audio applications such as sound bars, desktop multimedia speakers, flat panel TV speakers, and portable audio systems. Don't let Tang Band's diminutive driver modules fool you; each is built with a passive radiator that extends midbass frequency response, allowing these to mate to a subwoofer system quite easily.

The T1-1925S speaker module is built around a passive radiator assisted, polypropylene composite 1" inverted dome driver. This allows for a very full frequency response from a single, small driver. Advantages of this type of speaker design include the elimination of crossover components in the critical midrange, superb off-axis response due to the use of a small driver (without hot spots), and perfect time-alignment.

Note: Tang Band recommends the use of a 2nd order (-12 dB/octave) 150 Hz high pass filter for the best possible sound. Higher power handling and output is possible by deploying multiple modules together. The T1-1925S is not designed to work with Tang Band's KIT-0041 speaker module mounting kit with amplifier.

Product Details

BrandTang Band
ModelT1-1925S
Part Number264-944
UPC848864043715
Unit of MeasureEach
Weight0.1

Product Specifications

Power Handling (RMS)1 Watts
Power Handling (MAX)2 Watts
Impedance4Ω
Frequency Response150 to 20,000Hz
Sensitivity76dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)150Hz

Materials of Construction

Cone MaterialPoly Composite
Surround MaterialRubber
Basket / Frame MaterialPolymer
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter2.56" x 1.14"; With mounting tabs: 3.34"
Depth0.56"
# Mounting Holes2
