  • Tang Band T0-2008S Speaker Module 2-5/32" x 1"

Tang Band T0-2008S Speaker Module 2-5/32" x 1"

Tang Band
Part #264-943

Tang Band T0-2008S Speaker Module 2-5/32" x 1"

Tang Band
Part #264-943
Model: T0-2008S

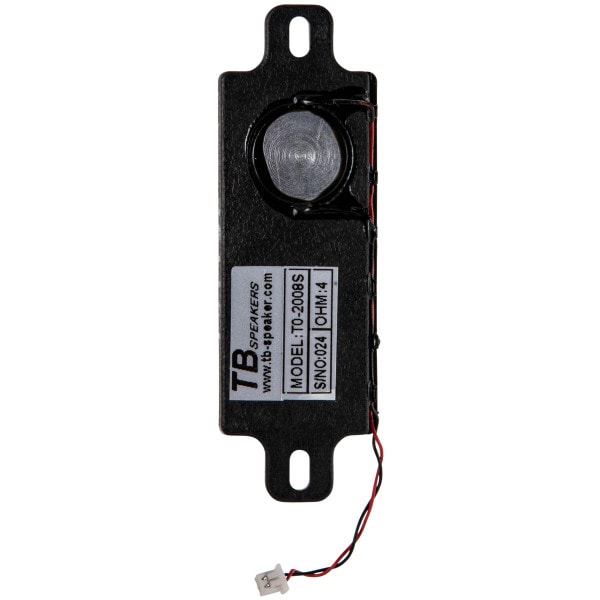

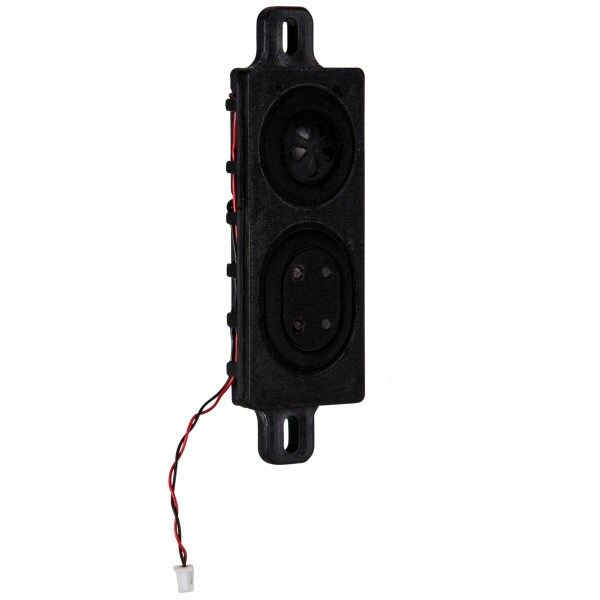

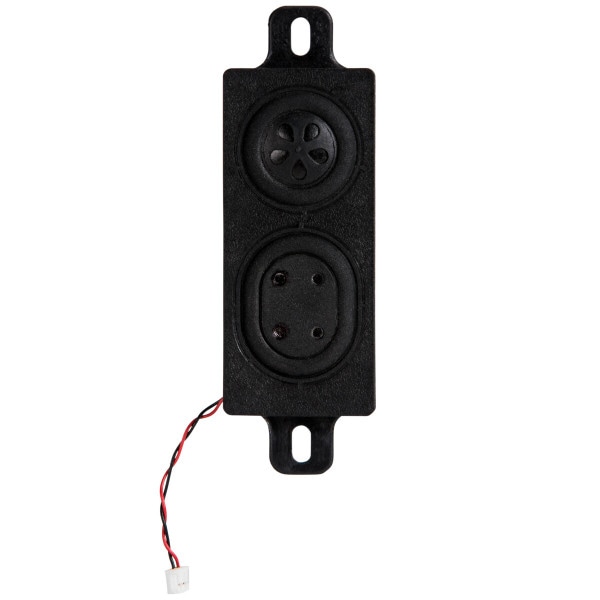

Tang Band's T0-2008S features a passive radiator-assisted 20.1 mm driver that plays from 200 to 20,000 Hz in a tiny 2.17" by 0.94" package. Design modern speakers never before thought possible.
Key Features
  • The easiest way to add high quality audio to small projects
  • Small, oval passive radiator extends response to 200 Hz
  • Tiny 2.17" H x 0.94" W x 0.34" D self-contained design
  • 20.1 mm polypropylene-composite inverted dome driver
Your Price: $18.49
MSRP: $27.99
Save $9.50 (34%)
Bulk Pricing
Quantity:Qty: 1-3 $18.49/ea
Quantity:Qty: 4-9 $17.57/ea
Quantity:Qty: 10+$16.64/ea
Order in the next 0 hr 15 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Tang Band T0-2008S Speaker Module 2-5/32" x 1"

Tang Band's line of patented speaker modules are designed for modern audio applications such as sound bars, desktop multimedia speakers, flat panel tv speakers, and portable audio systems. Don't let Tang Band's diminutive driver modules fool you; each is built with a passive radiator that extends midbass frequency response, allowing these to mate to a subwoofer system quite easily.

The T0-2008S speaker module is the smallest of the three speaker modules from Tang Band and is built around a passive radiator assisted, polypropylene composite 20.1 mm inverted dome driver. This allows for a very full frequency response from a single, small driver. Advantages of this type of speaker design include the elimination of crossover components in the critical midrange, superb off-axis response due to the use of a small driver (without hot spots), and perfect time-alignment.

Note: Tang Band recommends the use of a 2nd order (-12 dB/octave) 180 Hz high pass filter for the best possible sound. Higher power handling and output is possible by deploying multiple modules together. The T0-2008S is not designed to work with Tang Band's KIT-0041 speaker module mounting kit with amplifier.

Product Details

BrandTang Band
ModelT0-2008S
Part Number264-943
UPC848864043708
Unit of MeasureEach
Weight0.05

Product Specifications

Power Handling (RMS)0.5 Watts
Power Handling (MAX)1 Watts
Impedance4Ω
Frequency Response200 to 20,000Hz
Sensitivity73dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)200Hz

Materials of Construction

Cone MaterialPoly Composite
Surround MaterialRubber
Basket / Frame MaterialPolymer
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter2.165" x 0.94"; With mounting tabs: 2.95"
Depth0.34"
# Mounting Holes2
