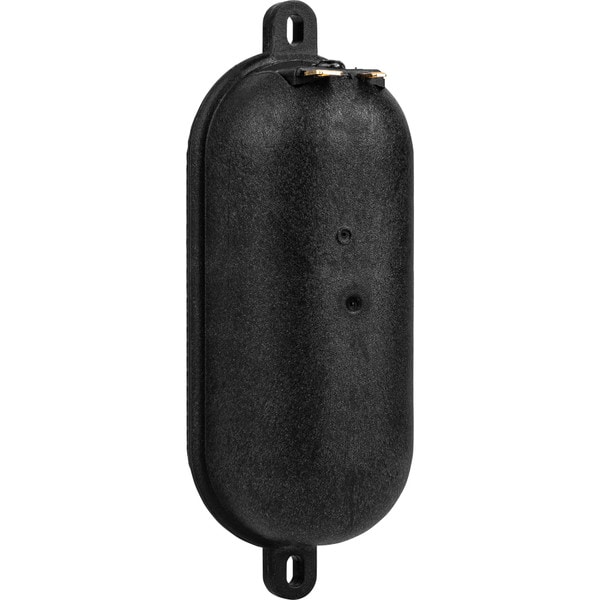

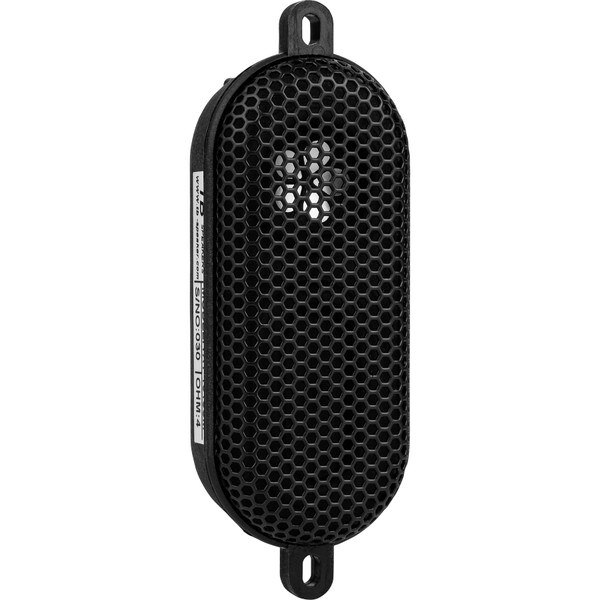

Tang Band TX1-1815SM Oval Full-Range Speaker Module 3-1/2" x 1-1/2

1 Question, 1 Answer or
Tang Band
Part #264-974

Tang Band TX1-1815SM Oval Full-Range Speaker Module 3-1/2" x 1-1/2

Tang Band
Part #264-974
Model: TX1-1815SM
1 Question, 1 Answer or
Tang Band's compact TX1-1815SM speaker module uses a 1" aluminum dome driver and oval shaped passive radiator installed in a sleek oval shaped enclosure to produce detailed full-range response with extended low frequencies. This speaker module makes it easy to add high fidelity audio to almost any small project.
Key Features
  • Integrated grill protects drivers without affecting response
  • Oval shape housing to give your projects a modern look
  • Compact design with extremely wide bandwidth
  • Damped 1" aluminum diaphragm for natural response
Your Price: $38.89
MSRP: $61.99
Save $23.10 (37%)
Bulk Pricing
Quantity:Qty: 1-3 $38.89/ea
Quantity:Qty: 4-9 $37.72/ea
Quantity:Qty: 10+$36.95/ea
Order in the next 6 hr 13 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Tang Band TX1-1815SM Oval Full-Range Speaker Module 3-1/2" x 1-1/2

The TX1-1815SM speaker module from Tang Band is built around a passive radiator assisted, damped aluminum 31 mm inverted dome driver. Capable of accurate and detailed response from 120 to 20,000 Hz, this speaker module is the easiest way to give incredible audio capability almost any small project. Thanks to the modern oval shaped enclosure and integrated grill, the TX1-1815SM can be easily installed into projects and speaker designs without the need for extra protection.

Tang Band's line of patented speaker modules are designed for modern audio applications such as sound bars, desktop multimedia speakers, flat panel tv speakers, and portable audio systems. Don't let Tang Band's diminutive driver modules fool you; each is built with a passive radiator that extends midbass frequency response, allowing these to mate to a subwoofer system quite easily.

Product Details

BrandTang Band
ModelTX1-1815SM
Part Number264-974
UPC848864064031
Unit of MeasureEach
Weight0.2

Product Specifications

Nominal Diameter1"
Power Handling (RMS)2 Watts
Power Handling (MAX)4 Watts
Impedance4Ω
Frequency Response120 to 20,000Hz
Sensitivity77dB 2.83V/1m
Voice Coil Diameter0.76"

Thiele-Small Parameters

Resonant Frequency (Fs)120Hz

Materials of Construction

Cone MaterialAluminum
Surround MaterialRubber
Magnet MaterialNeodymium

Mounting Information

# Mounting Holes2
