  • Russound D1675 D Series 16-Channel Digital Amplifier 2U 75 WPC

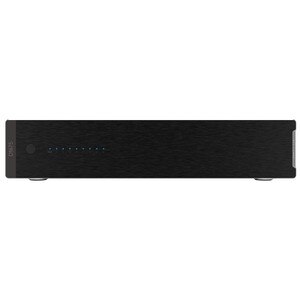

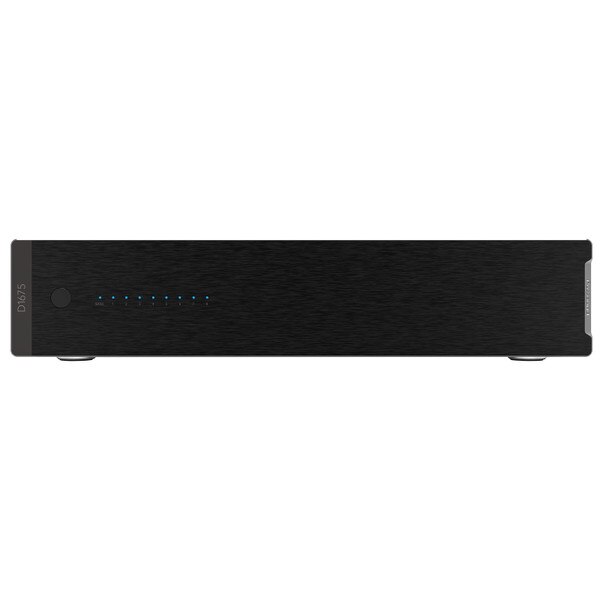

NEW Russound D1675 D Series 16-Channel Digital Amplifier 2U 75 WPC

RussoundPart # 247-1921
Model: D1675

The Russound D1675 is a 16-channel digital amplifier designed for large multiroom audio systems. It provides both flexibility and power, enabling installers to route and tune audio per zone without needing multiple amps.

Key Features

  • Bridgeable design lets each zone deliver higher output when extra power is needed
  • 16 output channels grouped into 8 independent zones
  • Zone-level rear panel slide switches for Full Range, Low Pass, or High Pass filtering
  • Class D design for efficient power use and reduced heat generation
  • Multiple turn-on modes: Always On, Signal Sensing, or 12V trigger
  • Slim 2U rack-mount design to conserve space in equipment racks
  • Thermal fan cooling and built-in protection to ensure reliability under load
Similar items that may interest you:
Dayton Audio MA1260 Multi-Zone 12 Channel Amplifier 60WPC
Price: $794.98Part # 300-8150
See all items in Multi-Zone Amplifiers
NEW $1,949.00
+ FREE SHIPPING
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when Russound D1675 D Series 16-Channel Digital Amplifier 2U 75 WPC is back in stock or available for preorder.

Order in the next 4 hr 33 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Russound D1675 D Series 16-Channel Digital Amplifier 2U 75 WPC

Russound D1675 D Series 16-Channel Digital Amplifier 2U 75 WPC

Russound’s D-Series amplifiers are renowned for their premium performance, reliability, and durability, serving as the foundation of professional audio installations worldwide. The newest generation of these high-performance amplifiers is exemplified by the D1675, a sixteen-channel powerhouse packed with features that elevate any audio system.

Its advanced digital design delivers 75 watts per channel across eight zones. Each zone can draw from either of the two available bus inputs or use its own dedicated zone input. Zones can also be bridged to deliver up to 150 watts, making the D1675 ideal for driving outdoor speakers or filling large spaces with powerful sound.

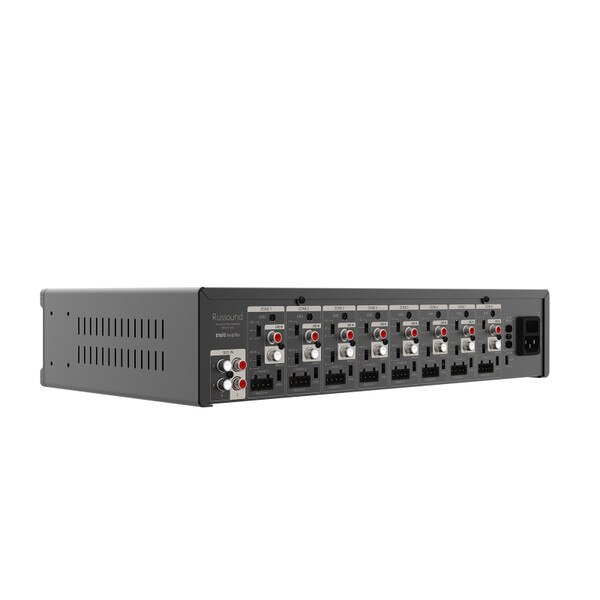

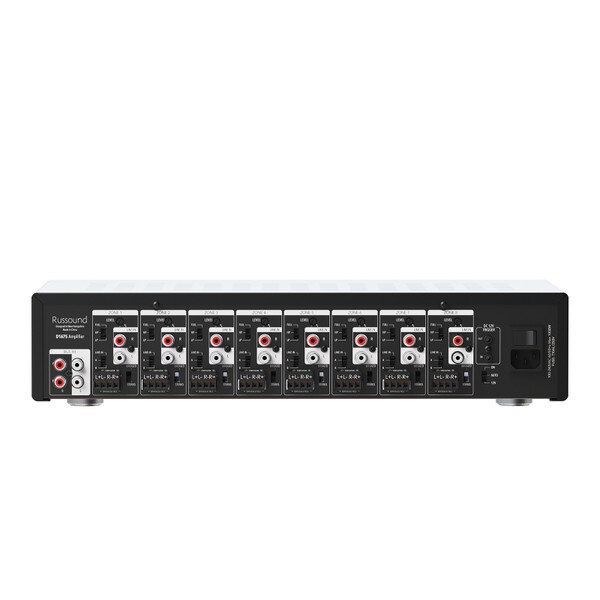

A standout feature of this amplifier is the built-in audio filter for each zone. With a simple slide switch on the rear panel, each zone can be set for full-range playback or configured with a custom low-pass or high-pass filter. This flexibility allows the amplifier to direct its output toward low frequencies for subwoofers or higher frequencies for architectural or compact speakers.

From the moment you unbox it, the D1675 impresses with its sleek design and solid construction. Once connected to your favorite audio sources and speakers, it allows you to fine-tune your entire home system with precision and ease, delivering powerful, customized sound in every zone.

Specifications

  • Amplifier Channels: 16 channels 8 independent zones
  • Bridge: Yes
  • Frequency Response: 20Hz to 20kHz +/-3dB at 1W output into 4 or 8 Ohms
  • Fuse Rating: 10A, 250V FA
  • Input Impedance: >22k ohms Line Input
  • Input Sensitivity:
    -620 mV for 90W @ 1kHz 4 Ohm One Zone
    -690 mV for 45W @ 1kHz 8 Ohm One Zone
  • Power Output:
    -75W /Channel, 1kHz One Zone Driven - 4 Ohm
    -37W /Channel, 1kHz, One Zone Driven - 8 Ohm
    -150W, 1kHz, One Zone Driven - 8 Ohm Bridged

  • Power Requirement(s):
    North American Model: 115-120VAC, 60Hz (1000W Max)
    International Model (D1675i): 220-240VAC, 50Hz (1000W Max)
  • Signal to Noise Ratio: >90dB A-weighted
  • Speaker Connection(s): Detachable Screw-down, up to 12AWG
  • Trigger Input(s): 12V, Global
  • Line Input: Selectable: Bus A, Bus B, Zone

Product Details

BrandRussound
ModelD1675
Part Number247-1921
UPC612934853920
Unit of MeasureEach
Weight17.8

Product Specifications

Power (RMS/Channel 8 ohms)26 - 50 Watts
Weight Range10 to 19 lbs.
Special FeaturesBridgeable
