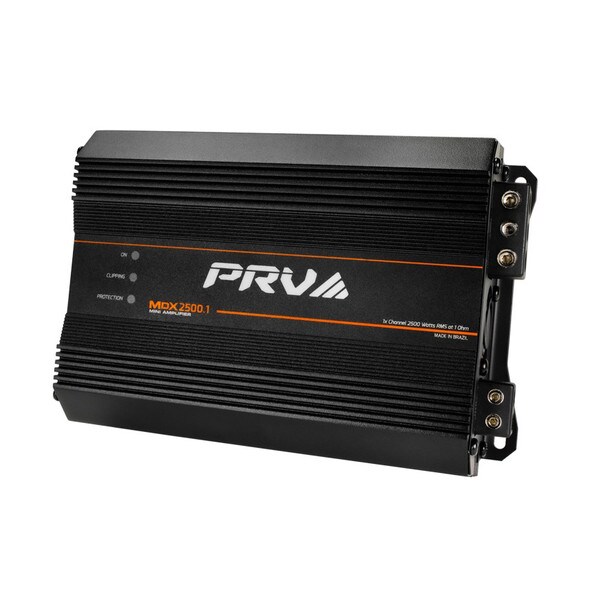

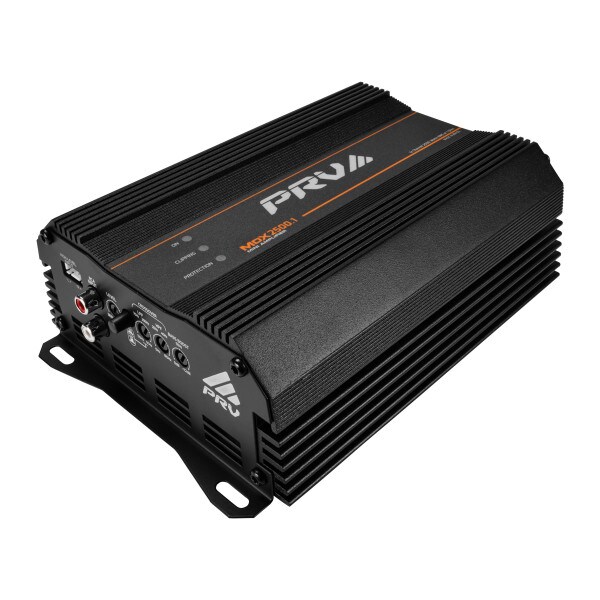

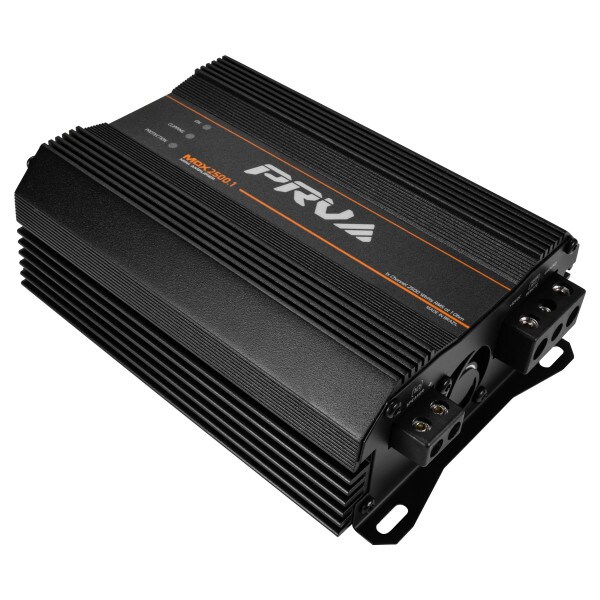

  • PRV Audio MDX2500.1 1 Ohm MDX Series 1-Channel Mini Amplifier 2500W

NEW PRV Audio MDX2500.1 1 Ohm MDX Series 1-Channel Mini Amplifier 2500W

PRV AudioPart # 267-8090
Model: MDX2500.1 1 OHM
1 Question, 1 Answer or

Perfect for high-performance systems with limited space, the MDX Series incorporates exclusive patented technologies to deliver high-definition sound quality in a small yet reliable package. Built with motorsports in mind, this tiny yet powerful amplifier is an excellent choice for your motorcycle, ATV, or slingshot.

Key Features

  • Small but mighty to deliver results without taking up space
  • 84% average efficiency delivers on output without straining your electrical system
  • Built in heatsink and cooling fan to keep the amp cool under the most demanding conditions
  • High level input to make connecting to a factory radio a breeze
  • A frequency response from 10-25,000Hz will let this amp handle any job you can give it
  • Engineered to endure vibration and still deliver a peak performance
  • An excellent choice for motorcycles, ATVs, and slingshots
NEW $179.91
+ FREE SHIPPING
MSRP: $224.89
Save $44.98 (20%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when PRV Audio MDX2500.1 1 Ohm MDX Series 1-Channel Mini Amplifier 2500W is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio MDX2500.1 1 Ohm MDX Series 1-Channel Mini Amplifier 2500W

  • This compact micro amplifier features a durable heavy-duty heatsink and a small footprint, making it easy to install in vehicles, motorcycles, and 4-wheelers. Measuring 8.50″ W x 5.90″ L x 2.60″ H, it fits seamlessly into tight spaces.
  • Engineered for maximum efficiency, it delivers powerful output while reducing strain on your electrical system, ensuring high-performance audio without rapidly draining your battery.
  • The monoblock design provides 2600 watts at 1 Ohm TRUE RMS, utilizing full-range Digital Class D Brazilian Technology for wiring multiple speakers and evenly distributing power per channel.

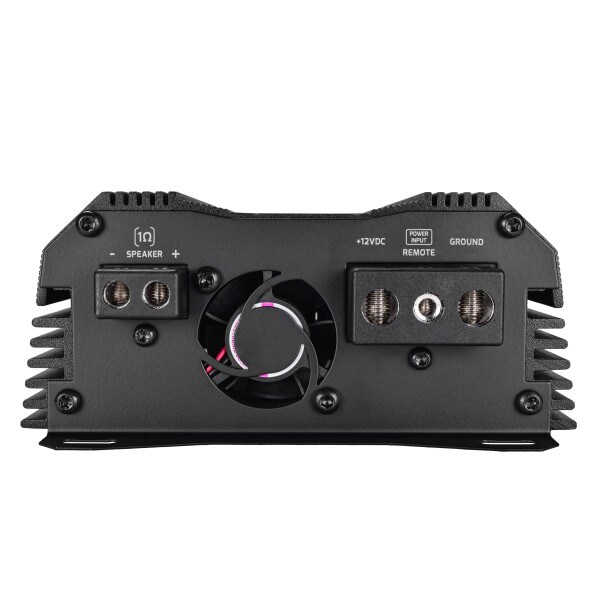

  • Equipped with 4-way protection circuitry, it safeguards against high voltage, low voltage, shortages, and current issues, while built-in Power/Protection/Clip LED indicators on the top panel offer convenient monitoring.

The latest surface-mount component technology ensures exceptional vibration resistance and superior sound quality, making it a top choice for audio enthusiasts and competitors building their dream systems.

With a wide frequency response from 10 Hz to 25,000 Hz, this 2600-watt 1 Ohm monoblock amplifier is versatile, suitable for applications including subwoofers, midbass, midrange, full-range speakers, phenolic drivers, titanium drivers, and super tweeters.

The MDX Series is specifically designed for motorsport applications, making it ideal for custom motorcycles, ATVs, and Slingshots.

High output performance in a compact, space-saving design!

Equipped with a mini heavy-duty heatsink and built-in cooling fan to stay cool during intense playlists.

Weighing just 4.05 pounds, it offers an exceptional performance-to-weight ratio for custom systems.

Before Installing

You must follow the instructions for the product’s installation to guarantee optimal performance. If you have any questions, get in touch with us. Before using the amplifier, always follow these guidelines:

  • Make sure the amplifier is switched off before adding or removing any connections. This prevents possible damage to equipment.
  • Keep all cables as far away as possible from the ignition cables, electronic injection modules and starter switch since they may cause noise interference; Minimum recommended installation distance between amplifier is 1.25”.
  • Always use OFC 4 AWG Copper wire for power and ground and minimum of 12 AWG speaker wire and good quality connectors. Copper-clad aluminum wire (CCAW) must not be used. This guarantees reliability and performance.
  • To avoid damaging the cables, make sure that they do not touch sharp metal edges. Important: For this amp use a 150A fuse 12 inches away from the battery as a safety precaution.

    The power rating data is based on equipment from the PRV Audio Group laboratory. Rated power tested with 60Hz to 1KHz sinusoidal signal and THD <= 1%, with resistant load referring to the indicated measurements. The electronic components and the manufacturing process can present manufacturing variations, thus leading to a variation in the measurements made. This amplifier is designed to perform on music applications ( with speakers ), any load test ( resistant load ) is not recommended.

Specifications

  • Impedance: 1 Ohm
  • Channels: 1 Channel
  • Rated RMS Power at 14.0 V at 1 Ohm: 1x 2600 Watts RMS
  • Rated RMS Power at 14.0 V at 2 Ohm: 1x 1850 Watts RMS
  • Average Efficiency: 84%
  • Operating Voltage: 8 to 16 Volts
  • Musical Current Draw: 149 A
  • Minimal Power Wire Input: (OFC) 4 Gauge wires

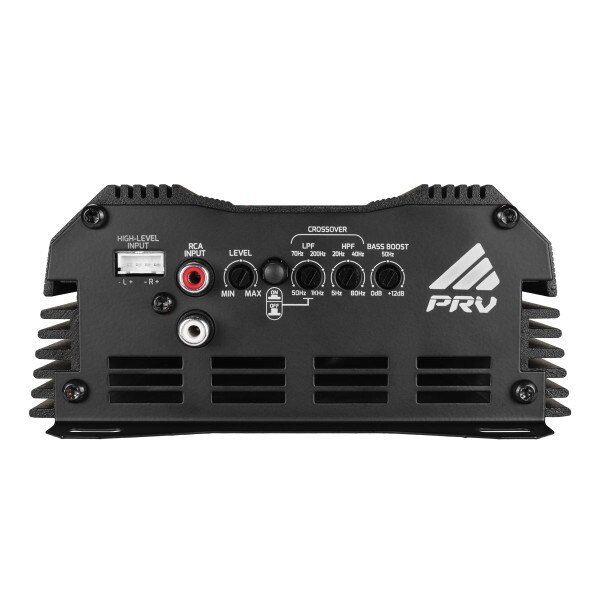

  • Built-in Crossover: Variable HPF 5Hz – 80Hz & LPF 50Hz – 1kHz
  • Variable Gain Bass Boost at 50Hz: 0 to +12dB
  • Minimal Speaker Wire Output: 12 Gauge
  • Frequency Response(-3dB): 10 – 25,000 Hz
  • Min. Input Sensitivity for Max. Output: 0.2 to 2v
  • Signal Input: RCA Cables
  • Signal to Noise: >90 dB
  • Protection System: Low & High Supply Voltage / Shortage on Output / Low Impedance on Output
  • Heat Sink Type: Mini Heavy Duty Cast Aluminum
  • Dimensions ( Width x Depth x Height ): 8.50" x 5.90" x 2.60"
  • Weight 4.05 lbs.

Product Details

BrandPRV Audio
ModelMDX2500.1 1 OHM
Part Number267-8090
UPC810075524284
Unit of MeasureEach
Weight4.5

Product Specifications

Input TypeRCA Line Level-Speaker Level
Output Channels1
Special Features1 ohm Stable-2 ohm Stable
