  • Jantzen Audio 7.0mH 18 AWG Air Core Inductor Crossover Coil

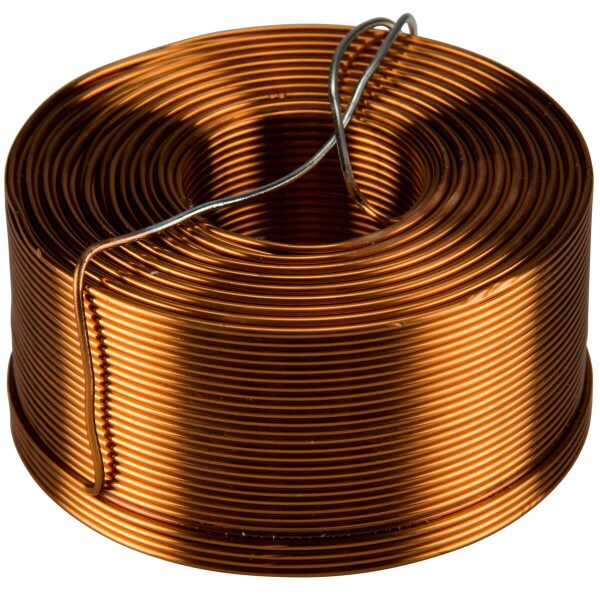

Jantzen Audio 7.0mH 18 AWG Air Core Inductor Crossover Coil

Jantzen AudioPart # 255-288
Model: 000-1959
The Jantzen Audio 18 gauge air core inductors are perfect layer wound with high-purity copper wire and baked to eliminate FM distortion.
Similar items that may interest you:
Jantzen Audio 7.0mH 15 AWG Air Core Inductor Crossover Coil
Price: $61.75Part # 255-446
See all items in Air Core Inductor Crossover Coils
Your Price: $29.64
MSRP: $38.99
Save $9.35 (24%)
Bulk Pricing
Quantity:Qty: 1-9 $29.64/ea
Quantity:Qty: 10+ $27.17/ea
Back-Ordered
Get Notified When Available

We'll send you an email when Jantzen Audio 7.0mH 18 AWG Air Core Inductor Crossover Coil is back in stock or available for preorder.

Expected back in stock any day
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Jantzen Audio 7.0mH 18 AWG Air Core Inductor Crossover Coil

The Jantzen Audio 18 gauge air core inductors are precision wound with high-purity copper wire to a ± 3% tolerance. A special Jantzen high-temperature baking process bonds the wires throughout the inductor, eliminating the possibility of FM distortion. The perfect layer air core construction improves heat dissipation while eliminating hysteresis and any type of saturation distortion. Jantzen Audio p/n 000-1959.

Specifications: • Tolerance: ± 3.0% • Inductance: 7.00 mH • Wire gauge: 18 AWG • DC resistance: 1.60 Ohms • Dimensions: 2.48" x 1.18" • Power handling: 300 watts RMS.

Product Details

BrandJantzen Audio
Model000-1959
Part Number255-288
UPC844632024405
Unit of MeasureEach
Weight1.2

Product Specifications

DCR1.6Ω
Inductance7mH
Inductor TypeAir Core
Wire Gauge18
