  • Jantzen Audio 0.33mH 18 AWG Air Core Inductor Crossover Coil

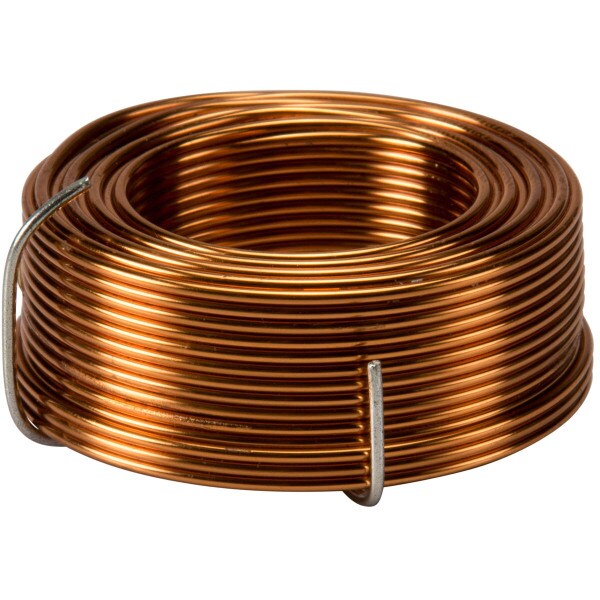

Jantzen Audio 0.33mH 18 AWG Air Core Inductor Crossover Coil

Jantzen AudioPart # 255-220
Model: 000-1022
The Jantzen Audio 18 gauge air core inductors are perfect layer wound with high-purity copper wire and baked to eliminate FM distortion.
Your Price: $8.80
MSRP: $11.99
Save $3.19 (27%)
Bulk Pricing
Quantity:Qty: 1-9 $8.80/ea
Quantity:Qty: 10+ $8.07/ea
15 In Stock
Get Notified When Available

We'll send you an email when Jantzen Audio 0.33mH 18 AWG Air Core Inductor Crossover Coil is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Jantzen Audio 0.33mH 18 AWG Air Core Inductor Crossover Coil

The Jantzen Audio 18 gauge air core inductors are precision wound with high-purity copper wire to a ± 3% tolerance. A special Jantzen high-temperature baking process bonds the wires throughout the inductor, eliminating the possibility of FM distortion. The perfect layer air core construction improves heat dissipation while eliminating hysteresis and any type of saturation distortion. Jantzen Audio p/n 000-1022.

Specifications: • Tolerance: ± 3.0% • Inductance: 0.33 mH • Wire gauge: 18 AWG • DC resistance: 0.26 Ohms • Dimensions: 1.65" x 0.60" • Power handling: 300 watts RMS.

Product Details

BrandJantzen Audio
Model000-1022
Part Number255-220
UPC844632024061
Unit of MeasureEach
Weight0.18

Product Specifications

DCR0.26Ω
Inductance0.33mH
Inductor TypeAir Core
Wire Gauge18
