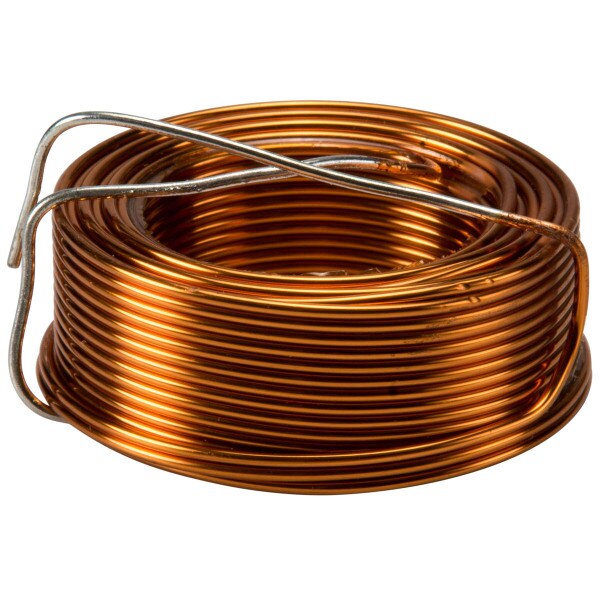

The Jantzen Audio 18 gauge air core inductors are precision wound with high-purity copper wire to a ± 3% tolerance. A special Jantzen high-temperature baking process bonds the wires throughout the inductor, eliminating the possibility of FM distortion. The perfect layer air core construction improves heat dissipation while eliminating hysteresis and any type of saturation distortion. Jantzen Audio p/n 000-1076..
Specifications: • Tolerance: ± 3.0% • Inductance: 0.25 mH • Wire gauge: 18 AWG • DC resistance: 0.22 Ohms • Dimensions: 1.55" x 0.60" • Power handling: 300 watts RMS.
Product Details | |
|---|---|
| Brand | Jantzen Audio |
| Model | 000-1076 |
| Part Number | 255-214 |
| UPC | 844632024030 |
| Unit of Measure | Each |
| Weight | 0.15 |
Product Specifications | |
|---|---|
| DCR | 0.22Ω |
| Inductance | 0.25mH |
| Inductor Type | Air Core |
| Wire Gauge | 18 |
