  • Jantzen Audio 7.0mH 15 AWG Air Core Inductor Crossover Coil

Jantzen Audio 7.0mH 15 AWG Air Core Inductor Crossover Coil

Jantzen AudioPart # 255-446
Model: 000-1506
1 Question, 2 Answers or
The Jantzen Audio 15 gauge air core inductors offer low DCR and top-quality construction. High purity copper wire and a special baking process ensure optimum performance.

Key Features

  • Inductance: 7.00 mH
  • Wire gauge: 15 AWG
  • DCR: .98 ohms
  • Power handling: 500 watts RMS
  • Dimensions: 2.91" Dia x 2.4" H
Your Price: $61.75
MSRP: $80.99
Save $19.24 (24%)
Bulk Pricing
Quantity:Qty: 1-9 $61.75/ea
Quantity:Qty: 10+ $56.60/ea
9 In Stock
Get Notified When Available

We'll send you an email when Jantzen Audio 7.0mH 15 AWG Air Core Inductor Crossover Coil is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

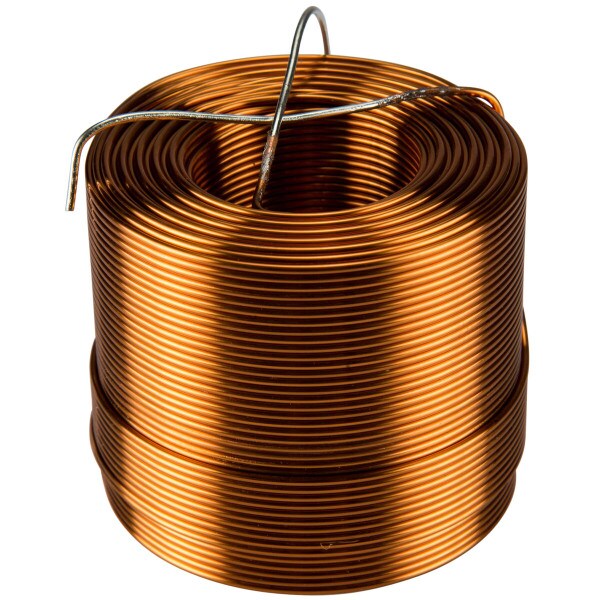

Jantzen Audio 7.0mH 15 AWG Air Core Inductor Crossover Coil

The Jantzen Audio 15 gauge air core inductors offer a lower DCR alternative to the other Jantzen lines. They feature the same quality construction including high-purity copper wire wound to a ± 3% tolerance, and the special Jantzen high-temperature baking process that eliminates the possibility of FM distortion. The perfect layer air core construction improves heat dissipation while eliminating hysteresis and any type of saturation distortion. Jantzen Audio p/n 000-1506.

Specifications: • Tolerance: ± 3.0% • Inductance: 7.00 mH • Wire gauge: 15 AWG • DC resistance: 0.98 Ohms • Dimensions: 2.91" x 2.40" • Power handling: 500 watts RMS.

Product Details

BrandJantzen Audio
Model000-1506
Part Number255-446
UPC844632025242
Unit of MeasureEach
Weight2.62

Product Specifications

DCR0.98Ω
Inductance7mH
Inductor TypeAir Core
Wire Gauge15
