  • GRS 5PF-8 5-1/4" Paper Cone Foam Surround Woofer

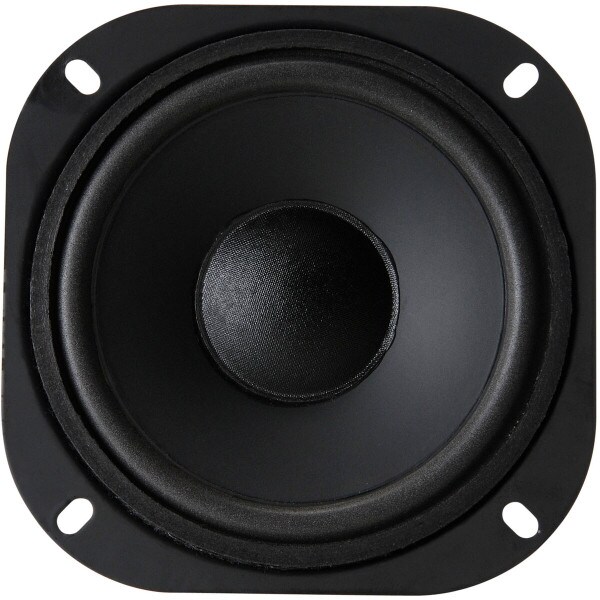

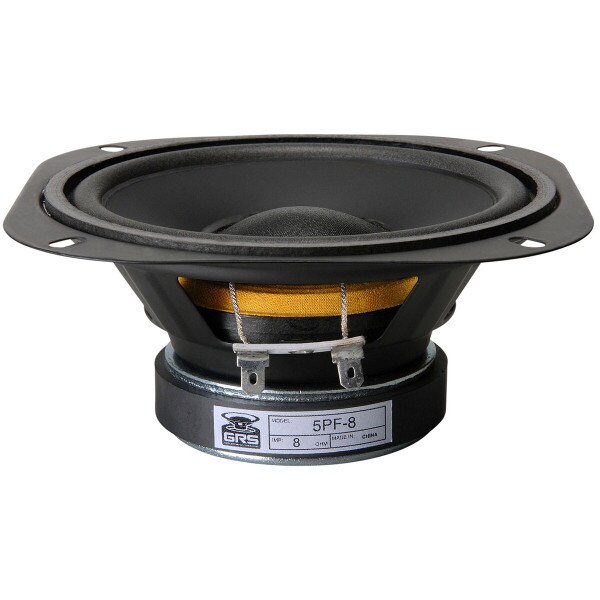

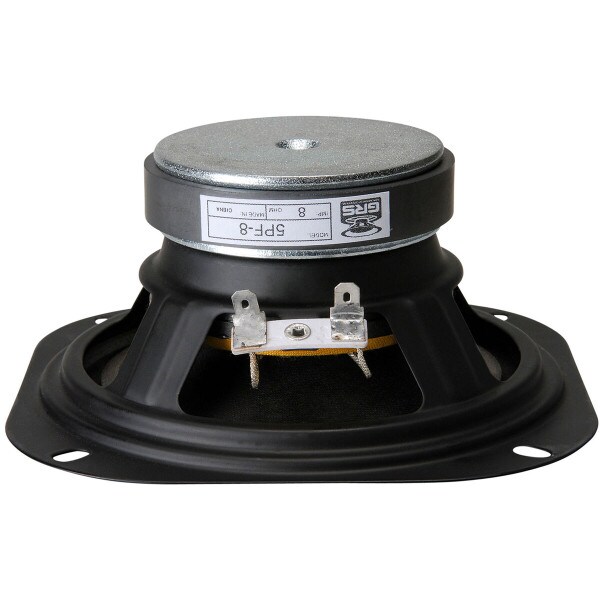

GRS 5PF-8 5-1/4" Paper Cone Foam Surround Woofer

GRSPart # 292-405
Model: 5PF-8
The GRS 5PF-8 5-1/4" woofers feature a poly-laminate coated cone and a foam surround. They are ideally suited for all sealed-box speaker applications.

Key Features

  • Perfect for use in sealed-box home theater and music systems
  • Poly-laminated paper cone, treated foam surround, and polymer dust cap
  • Smooth frequency response with minimal cone breakup
Your Price: $9.59
MSRP: $12.99
Save $3.40 (26%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when GRS 5PF-8 5-1/4" Paper Cone Foam Surround Woofer is back in stock or available for preorder.

Order in the next 12 hr 57 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

GRS 5PF-8 5-1/4" Paper Cone Foam Surround Woofer

The GRS 5PF-8 5-1/4" woofers feature a poly-laminate coated cone and a foam surround. They are ideally suited for all sealed-box speaker applications. Thanks to their carefully optimized parameters, GRS 5PF-8 5-1/4" poly-laminated paper cone woofers offer a high degree of compatibility when used as replacement speakers—they also provide excellent performance in new projects, too.

Product Details

BrandGRS
Model5PF-8
Part Number292-405
UPC844632088452
Unit of MeasureEach
Weight1.15

Product Specifications

Nominal Diameter5-1/4"
Power Handling (RMS)90 Watts
Power Handling (MAX)180 Watts
Impedance8Ω
Frequency Response90 to 8,000Hz
Sensitivity85dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)162Hz
DC Resistance (Re)7.3Ω
Voice Coil Inductance (Le)0.5mH
Mechanical Q (Qms)5.96
Electromagnetic Q (Qes)3.09
Total Q (Qts)2.04
Compliance Equivalent Volume (Vas)0.05ft³
Mechanical Compliance of Suspension (Cms)0.16mm/N
BL Product (BL)3.8T·m
Diaphragm Mass Inc. Airload (Mms)6.1g
Maximum Linear Excursion (Xmax)2.5mm
Surface Area of Cone (Sd)75.2cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialFoam
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter5.0625"
Baffle Cutout Diameter4.75"
Depth2.3125"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.18ft³
Sealed F390Hz
