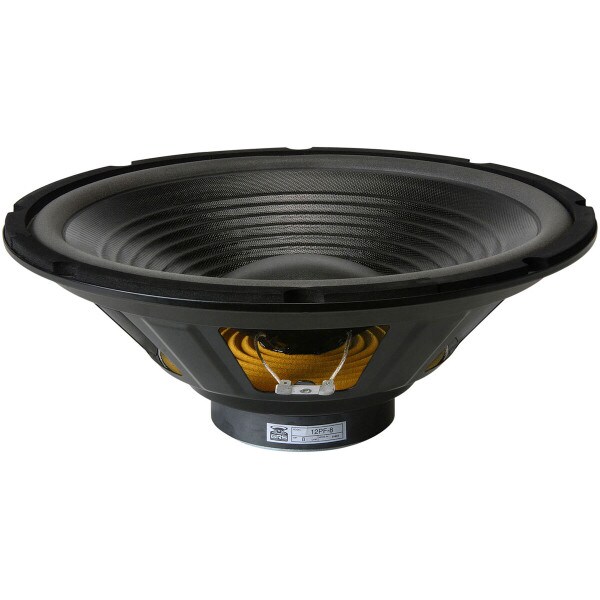

GRS 12PF-8 12" Paper Cone Foam Surround Woofer

Name: GRS 12PF-8 12" Paper Cone Foam Surround Woofer
Brand: GRS
SKU: 292-412
Price: 21.98 USD
Availability: InStock
Rating: 4.6 (116 reviews)

GRSPart # 292-412

Model: 12PF-8

Read 116 Reviews | 184 Questions, 541 Answers or

Save Even More

A Restocked, Refurbished or Open Box unit is available!

View Now

4 in.5-1/4 in.6-1/2 in.8 in.10 in.12 in.15 in.

GRS 12PF-8 12" poly-laminated paper cone woofers are perfect for use in sealed-box home theater and music systems.

Key Features

Perfect for use in sealed-box home theater and music systems
Poly-laminated paper cone, treated foam surround, and polymer dust cap
Smooth frequency response with minimal cone breakup

See all items in Woofers

Your Price: $21.98

MSRP: $27.99

Bulk Pricing

Quantity:Qty: 1-3 $21.98/ea

Quantity:Qty: 4+ $19.98/ea

In Stock

Get Notified When Available

We'll send you an email when GRS 12PF-8 12" Paper Cone Foam Surround Woofer is back in stock or available for preorder.

Ships next business day. Details

QtyQuantity:

Free Shipping available on orders over $99.00 in the US. Details

60 Day No Hassle Return Policy

Product Details

Brand

GRS

Model

12PF-8

Part Number

292-412

UPC

844632088490

Unit of Measure

Each

Weight

3.85

Product Specifications

Nominal Diameter

12"

Power Handling (RMS)

120 Watts

Power Handling (MAX)

240 Watts

Impedance

8Ω

Frequency Response

35 to 5,000Hz

Sensitivity

86dB 2.83V/1m

Voice Coil Diameter

1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)

38Hz

DC Resistance (Re)

7.4Ω

Voice Coil Inductance (Le)

1.2mH

Mechanical Q (Qms)

6.49

Electromagnetic Q (Qes)

2.76

Total Q (Qts)

1.93

Compliance Equivalent Volume (Vas)

3.97ft³

Mechanical Compliance of Suspension (Cms)

0.29mm/N

BL Product (BL)

6.3T·m

Diaphragm Mass Inc. Airload (Mms)

61.8g

Maximum Linear Excursion (Xmax)

3.5mm

Surface Area of Cone (Sd)

524.3cm²

Materials of Construction

Cone Material

Treated Paper

Magnet Material

Ferrite

Mounting Information

Overall Outside Diameter

12"

Baffle Cutout Diameter

11.0625"

Depth

4.69"

# Mounting Holes

Parts Express Staff Recommended Enclosure Volume

Sealed Volume

2ft³

Sealed F3

45Hz
