NEW Dayton Audio SS8-22 8" Signature Series DVC Subwoofer 2 Ohm per Coil

Dayton AudioPart # 295-728
Model: SS8-22
The Dayton Audio SS8-22 Signature Series 8" Subwoofer packs serious performance into a compact format, making it an ideal choice for small subwoofer systems where space is limited but output and accuracy are essential. Featuring a rigid anodized aluminum cone, dual-spider suspension, and a powerful triple-stacked motor assembly, the SS8-22 maintains precise pistonic motion and low distortion at high excursion. A 2.5" 4-layer copper voice coil on a vented aluminum former provides reliable cooling and allows the driver to handle up to 500 watts RMS with ease. Optimized for DSP-assisted sealed enclosures or compact vented/passive radiator systems, the SS8-22 is equally at home in home theater, hi-fi music systems, or car audio installs where clean, impactful bass from a small footprint is required.

Key Features

  • Massive triple-stacked magnet assembly provides motor strength and symmetry at high excursion
  • Aluminum shorting sleeve, ring, and pole cap linearize inductance and reduce distortion
  • Dual spider suspension with stitched tinsel leads ensures stability, durability, and precise motion
  • 2.5" 4-layer copper voice coil on a vented aluminum former for excellent power handling and cooling
  • Rigid anodized aluminum cone with indexed edge for pistonic accuracy and reduced resonance
  • Extensive venting through cone, pole piece, spider, and gap minimizes compression during long sessions
Similar items that may interest you:
Dayton Audio UMII8-22 Ultimax II 8" DVC Subwoofer 2 Ohm Per Coil
Price: $114.98Part # 295-708
Dayton Audio RSS210HO-4 8" Reference Series HO Subwoofer 4 Ohm
Price: $145.98Part # 295-458
See all items in Subwoofer Drivers
NEW $149.98
+ FREE SHIPPING
MSRP: $194.99
Save $45.01 (23%)
Bulk Pricing
Quantity:Qty: 1-3 $149.98/ea
Quantity:Qty: 4+ $142.48/ea
In Stock
Get Notified When Available

We'll send you an email when Dayton Audio SS8-22 8" Signature Series DVC Subwoofer 2 Ohm per Coil is back in stock or available for preorder.

Order in the next 2 hr 38 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio SS8-22 8" Signature Series DVC Subwoofer 2 Ohm per Coil

Dayton Audio SS8-22 8" Signature Series DVC Subwoofer

The Dayton Audio SS8-22 Signature Series 8" Subwoofer delivers powerful, controlled bass from compact enclosures, making it a versatile choice for small-space systems. Rated for 500 watts RMS, the SS8-22 combines robust output with engineering refinements that keep distortion low and reliability high. Whether used in DSP-assisted sealed enclosures for tight, accurate performance, in compact vented/passive radiator designs for extended low end, or integrated into a car audio system where space efficiency is critical, the SS8-22 delivers bass that feels much larger than its size.

Key Specs:

  • Nominal Diameter: 8"
  • Power Handling (RMS): 500W
  • Power Handling (MAX): 1,000W
  • Impedance: 2Ω + 2Ω (Dual voice coils)
  • Frequency Response: 20- 500Hz
  • Sensitivity: 84.9 dB 2.83V/1m
  • Voice Coil Diameter: 2.5"
  • Maximum Linear Excursion: ±17 mm

Rigid Cone, Maximum Control

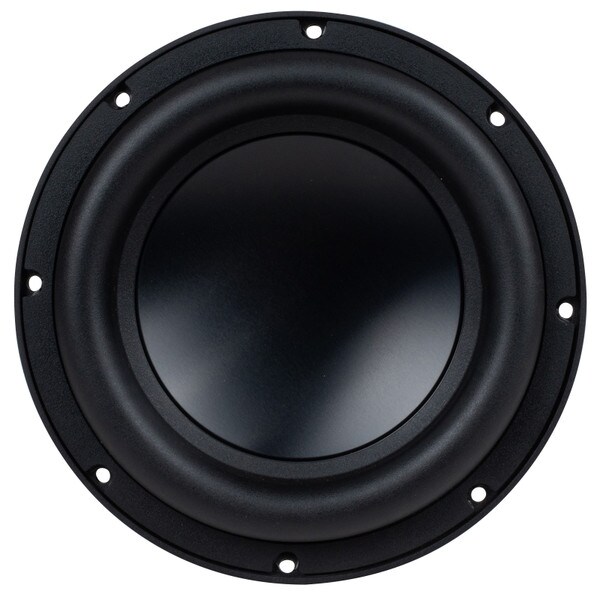

A thick anodized aluminum cone gives the SS8-22 the rigidity needed to maintain pistonic accuracy even under extreme excursion. Its indexed edge reinforces the transition between cone and surround, reducing unwanted resonances, while the high-roll butyl rubber surround supports deep excursion without sacrificing cone area. This combination ensures controlled, accurate bass reproduction that remains distortion-free at high output levels.

2.5" Voice Coil with Advanced Cooling

The SS8-22’s 2.5" diameter, 4-layer copper voice coil is wound on a vented aluminum former for excellent thermal performance. The multi-layer coil increases motor force and control, while the aluminum former acts as a heat sink to pull heat away from the windings. Extensive venting through the spider, pole piece, subcone, and coil gap promotes airflow and keeps the driver cool, minimizing compression even during demanding playback.

Optimized Motor for Low Distortion

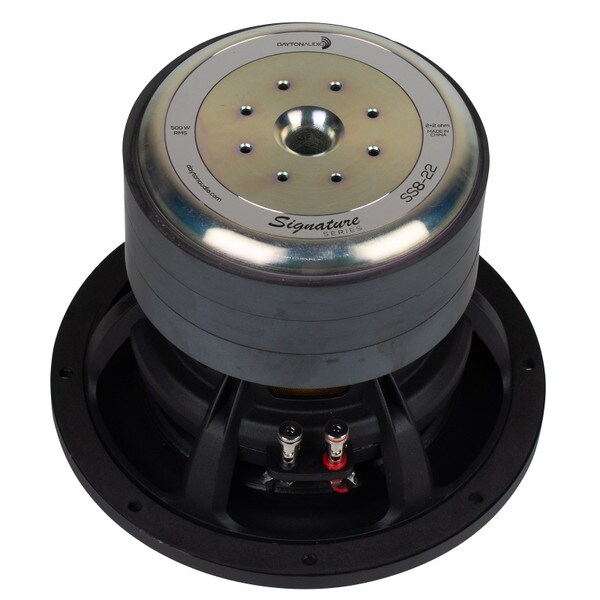

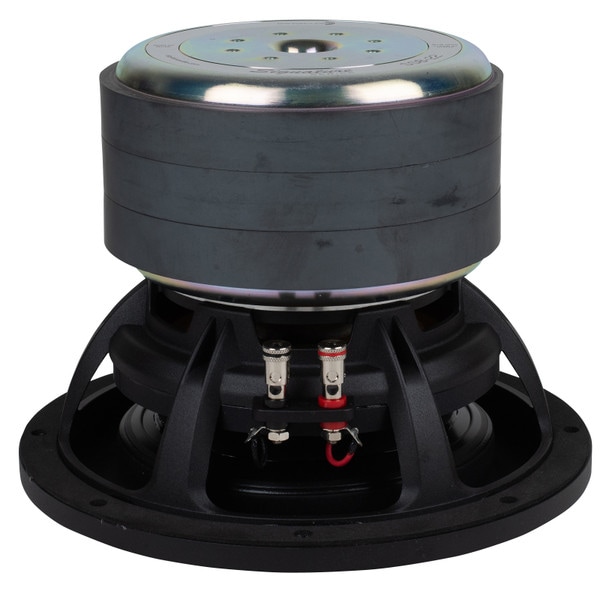

A triple-stacked, FEA-optimized magnet assembly drives the SS8-22, creating a strong and symmetrical magnetic field that ensures identical forward and backward cone travel. This symmetry minimizes distortion, while precision-machined plates with sculpted edges maximize magnetic transfer through the gap. An aluminum shorting sleeve, pole cap, and top plate ring keep inductance linear throughout the stroke, reducing non-linearities and enhancing clean response into the midbass region.

Consistent Performance at High Excursion

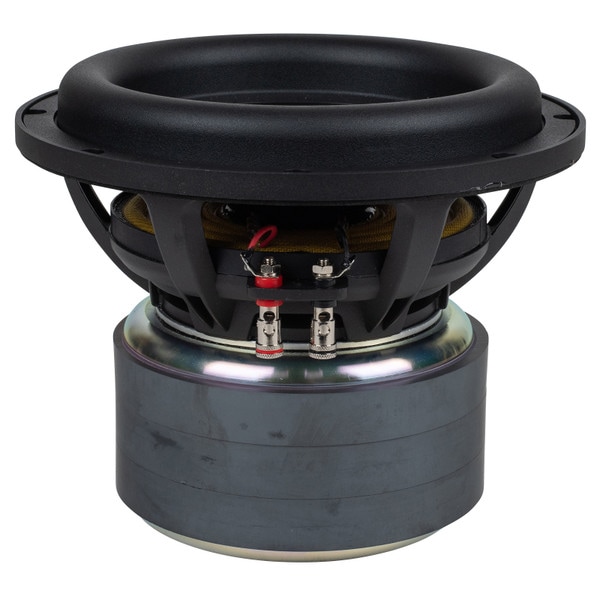

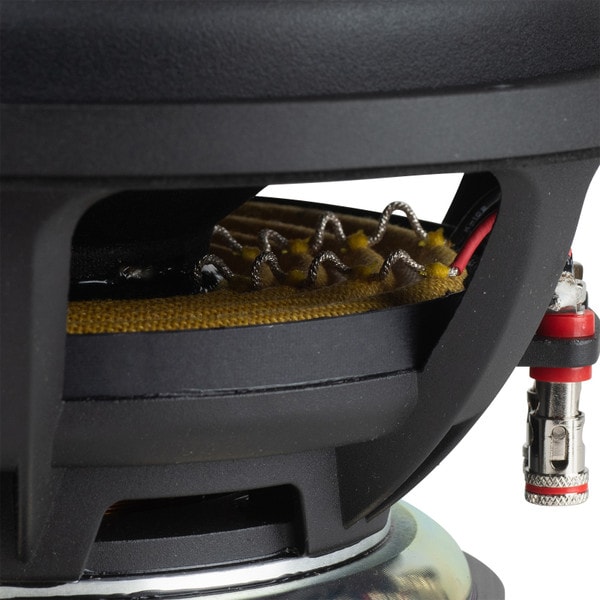

To maintain stability and eliminate rocking during high excursion, the SS8-22 uses a dual-spider suspension system. The wide spacing between spiders ensures accurate coil alignment, while stitched tinsel leads integrated into the top spider prevent fatigue and noise. This robust suspension design ensures long-term durability and consistent pistonic motion under heavy loads.

Small in size, huge in performance — bass that defies expectations

Compact yet powerful, the Dayton Audio SS8-22 Signature Series 8" Subwoofer is designed for systems where space is limited but high-performance bass is required. From shoebox-sized home theater subs to custom car audio installs, the SS8-22 delivers tight, controlled low end with authority well beyond its size class. As part of Dayton Audio’s Signature Series, it blends durability, precision, and output in a compact driver built for serious performance.

Explore All of the Signature Series Subwoofers


SS10-22

Nominal Diameter: 10"

Shop 10"

SS12-22

Nominal Diameter: 12"

Shop 12"

SS15-22

Nominal Diameter: 15"

Shop 15"

SS18-22

Nominal Diameter: 18"

Shop 18"

Note: The SS8-22 subwoofer is a dual voice coil driver with a 2-ohm impedance per coil. All parameters are measured with the voice coil wires in series, resulting in a single 4-ohm load.

Product Details

BrandDayton Audio
ModelSS8-22
Part Number295-728
UPC848791011108
Unit of MeasureEach
Weight20

Product Specifications

Nominal Diameter8"
Bolt Circle Diameter7.875
Power Handling (RMS)500 Watts
Power Handling (MAX)1000 Watts
Impedance4Ω
Frequency Response20 - 500Hz
Sensitivity84.9dB 2.83V/1m
Voice Coil Diameter2.5"

Thiele-Small Parameters

Resonant Frequency (Fs)38Hz
DC Resistance (Re)4.4Ω
Voice Coil Inductance (Le)1.6mH
Mechanical Q (Qms)4.37
Electromagnetic Q (Qes)0.5
Total Q (Qts)0.45
Compliance Equivalent Volume (Vas)0.343ft³
Mechanical Compliance of Suspension (Cms)0.17mm/N
BL Product (BL)14.6T·m
Diaphragm Mass Inc. Airload (Mms)101g
Maximum Linear Excursion (Xmax)17mm
Surface Area of Cone (Sd)200cm²

Materials of Construction

Cone MaterialAluminum
Surround MaterialRubber
Voice Coil Wire MaterialCCA
Voice Coil FormerAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter8.43"
Baffle Cutout Diameter7.25"
Depth6.2"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.5ft³
Sealed F366Hz
Vented Volume0.6ft³
Vented F329Hz
