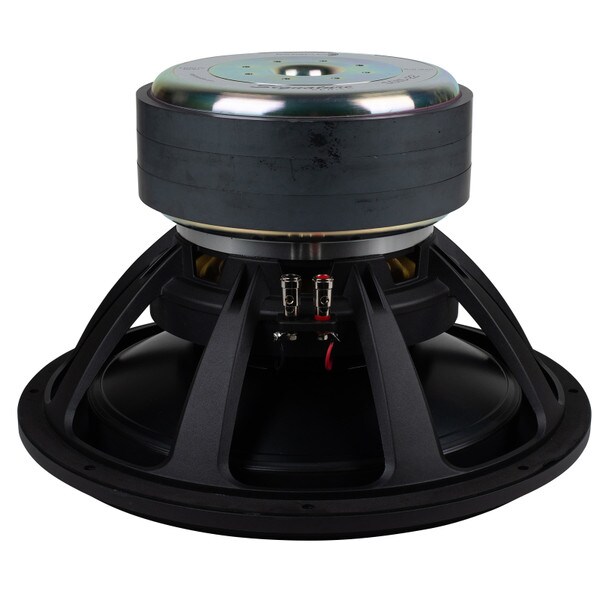

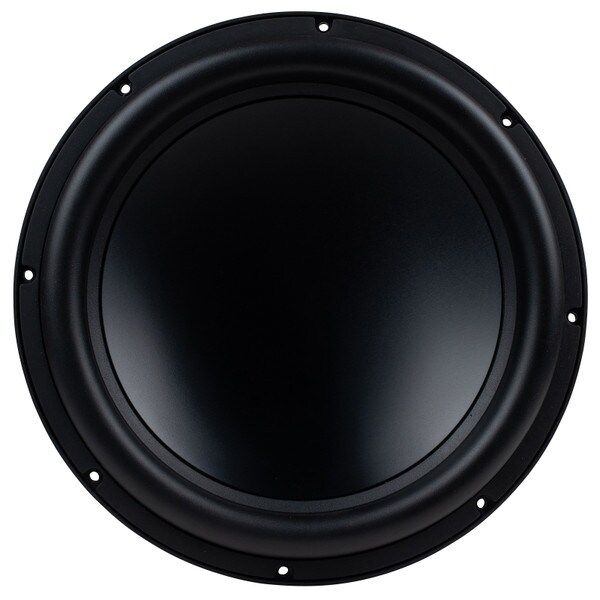

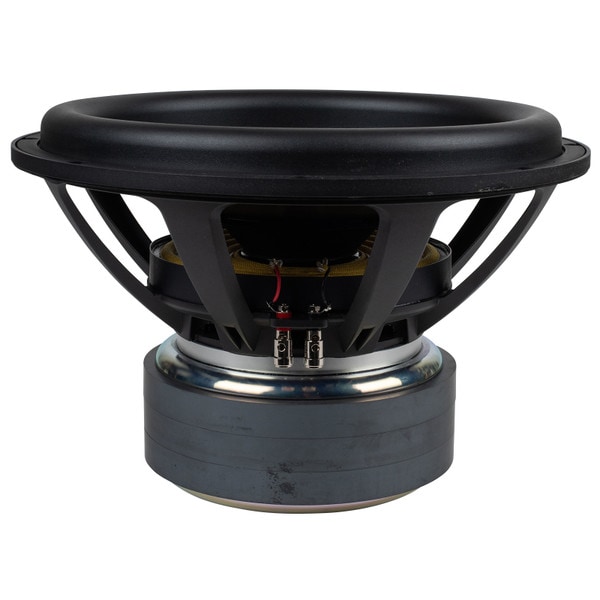

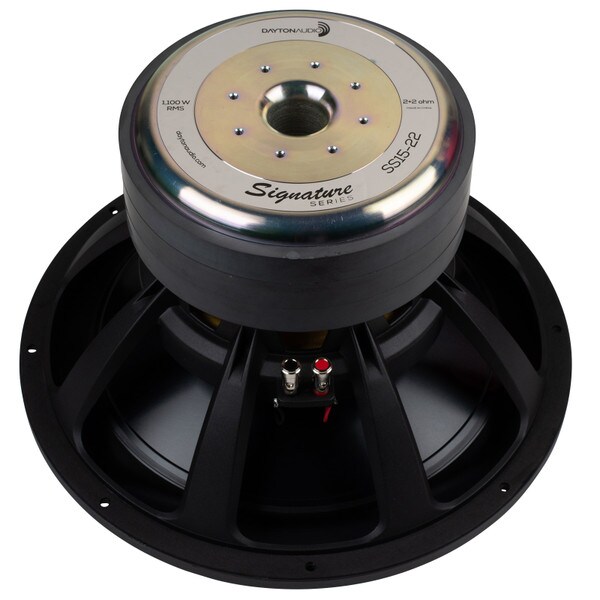

NEW Dayton Audio SS15-22 15" Signature Series DVC Subwoofer 2 Ohm per Coil

Dayton AudioPart # 295-734
Model: SS15-22
The Dayton Audio SS15-22 Signature Series 15" Subwoofer strikes the perfect balance between extreme low-frequency extension and versatile enclosure performance. Designed for high-output systems, the SS15-22 combines a rigid anodized aluminum cone, dual-spider suspension, and a massive FEA-optimized motor structure to deliver clean, controlled bass even at maximum excursion. With its 3" 4-layer copper voice coil on a vented aluminum former, the SS15-22 can handle up to 1,100 watts RMS while maintaining thermal stability and resisting power compression. Whether used in DSP assisted sealed or high output bass reflex enclosures, this driver provides the output and precision needed for any subwoofer system where power, control, and durability are essential.

Key Features

  • Rigid anodized aluminum cone with indexed edge for pistonic accuracy and reduced resonance
  • Aluminum shorting sleeve, ring, and pole cap ensure linear inductance and ultra-low distortion
  • FEA-optimized motor with triple-stacked magnets delivers exceptional strength and symmetry at high excursion
  • 3" 4-layer copper voice coil on a vented aluminum former for superior power handling and cooling
  • Dual spider suspension with stitched tinsel leads for precise pistonic motion and extreme durability
  • Extensive venting through cone, pole piece, spider, and gap minimizes compression during long sessions
Similar items that may interest you:
Dayton Audio UMII15-22 Ultimax II 15" DVC Subwoofer 2 Ohm Per Coil
Price: $289.98Part # 295-714
Dayton Audio RSS390HO-4 15" Reference Series HO Subwoofer 4 Ohm
Price: $264.98Part # 295-469
See all items in Subwoofer Drivers
NEW $319.98
+ FREE SHIPPING
MSRP: $415.99
Save $96.01 (23%)
Bulk Pricing
Quantity:Qty: 1-3 $319.98/ea
Quantity:Qty: 4+ $303.98/ea
In Stock
Get Notified When Available

We'll send you an email when Dayton Audio SS15-22 15" Signature Series DVC Subwoofer 2 Ohm per Coil is back in stock or available for preorder.

Order in the next 2 hr 34 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio SS15-22 15" Signature Series DVC Subwoofer 2 Ohm per Coil

Dayton Audio SS15-22 15" Signature Series DVC Subwoofer

The Dayton Audio SS15-22 Signature Series 15" Subwoofer is built to deliver serious low-frequency authority in compact high-power systems. Capable of handling 1,100 watts RMS with long, controlled excursion, the SS15-22 combines output capability with engineering refinements that ensure accuracy and reliability. Designed for both home theater systems demanding impactful LFE and music systems requiring tight, controlled bass, this 15" driver offers the perfect mix of output and fidelity.

Key Specs:

  • Nominal Diameter: 15"
  • Power Handling (RMS): 1,100W
  • Power Handling (MAX): 2,200W
  • Impedance: 2Ω + 2Ω (Dual voice coils)
  • Frequency Response: 20- 400Hz
  • Sensitivity: 90.6 dB 2.83V/1m
  • Voice Coil Diameter: 3"
  • Maximum Linear Excursion: ±22 mm
    • SS15-22 Spec Sheet

Rigid Cone, Maximum Control

At the front of the SS15-22 is a thick anodized aluminum cone that provides an exceptional strength-to-weight ratio. This rigid yet lightweight diaphragm resists deformation under heavy excursion, ensuring accurate pistonic motion at all output levels. The cone’s indexed edge enhances stiffness where it meets the surround, minimizing unwanted resonances. A high-roll butyl rubber surround complements the cone, allowing for extreme excursion without sacrificing usable cone area.

3" Voice Coil with Advanced Cooling

Driving the SS15-22 is a 3" diameter, 4-layer copper voice coil wound on a vented aluminum former. The multi-layer winding increases motor strength and control by maximizing coil presence in the gap, while the aluminum former acts as a heat sink to pull heat away from the coil during demanding playback. Extensive venting throughout the motor structure—including the former, pole piece, spider, and voice coil gap—ensures efficient airflow and cooling, minimizing compression even at sustained high power.

Optimized Motor for Low Distortion

The SS15-22 employs a massive, FEA-optimized, triple-stacked magnet assembly that generates a powerful and symmetrical magnetic field. This ensures the cone moves identically forward and backward, greatly reducing distortion at high excursion. Precision-machined plates with sculpted edges maximize magnetic transfer through the gap. In addition, the inclusion of an aluminum shorting sleeve, top plate ring, and pole cap keeps inductance linear throughout the entire stroke, reducing non-linearities and distortion while extending clean output into the midbass range.

Consistent Performance at High Excursion

To maintain rock-solid stability during high excursion, the SS15-22 uses a dual spider suspension spaced far apart for maximum cone and coil alignment. This design eliminates rocking and ensures reliable pistonic movement even under extreme loads. Stitched tinsel leads are integrated into the top spider to prevent fatigue and eliminate noise from lead slap, ensuring durability and consistent performance for years of demanding use.

Power, Control, Flexibility, and Reliability

With its combination of power, precision, and durability, the Dayton Audio SS15-22 Signature Series 15" Subwoofer is an outstanding choice for serious low-frequency applications. Whether used in a small DSP assisted sealed design for tight, accurate bass or a vented/passive radiator system for maximum SPL, this 15" driver delivers the output, control, low frequency extension that demanding listeners expect. As part of Dayton Audio’s Signature Series, the SS15-22 represents the perfect blend of engineering innovation and raw performance.

Matching Passive Radiator Available

To maximize the performance of the SS15-22, Dayton Audio offers the SS15-PR, 15" Signature Series passive radiator – visually identical to the SS15-22 driver. This allows you to achieve massive low-frequency extension from compact enclosures without requiring the impractically long ports that a driver of this size demands or power robbing boost from DSP assisted designs. By using a passive radiator system, you’ll enjoy the same powerful bass output as a vented design but with smaller enclosures, no port noise, and improved group delay—perfect for clean, room-shaking bass with authority.

SHOP SS15-PR SIGNATURE SERIES 15" PASSIVE RADIATOR

Explore All of the Signature Series Subwoofers


SS8-22

Nominal Diameter: 8"

Shop 8"

SS10-22

Nominal Diameter: 10"

Shop 10"

SS12-22

Nominal Diameter: 12"

Shop 12"

SS18-22

Nominal Diameter: 18"

Shop 18"

Note: The SS15-22 subwoofer is a dual voice coil driver with a 2-ohm impedance per coil. All parameters are measured with the voice coil wires in series, resulting in a single 4-ohm load.

Product Details

BrandDayton Audio
ModelSS15-22
Part Number295-734
UPC848791011160
Unit of MeasureEach
Weight36

Product Specifications

Nominal Diameter15"
Bolt Circle Diameter14.6
Power Handling (RMS)1100 Watts
Power Handling (MAX)2200 Watts
Impedance4Ω
Frequency Response20 - 400Hz
Sensitivity90.6dB 2.83V/1m
Voice Coil Diameter3"

Thiele-Small Parameters

Resonant Frequency (Fs)27Hz
DC Resistance (Re)5Ω
Voice Coil Inductance (Le)1.9mH
Mechanical Q (Qms)3.27
Electromagnetic Q (Qes)0.44
Total Q (Qts)0.38
Compliance Equivalent Volume (Vas)3.46ft³
Mechanical Compliance of Suspension (Cms)0.11mm/N
BL Product (BL)24.9T·m
Diaphragm Mass Inc. Airload (Mms)317g
Maximum Linear Excursion (Xmax)22mm
Surface Area of Cone (Sd)800cm²

Materials of Construction

Cone MaterialAluminum
Surround MaterialRubber
Voice Coil Wire MaterialCCA
Voice Coil FormerAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter15.3"
Baffle Cutout Diameter13.9"
Depth9.2"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume2ft³
Sealed F357Hz
Vented Volume3ft³
Vented F329Hz
