  • Dayton Audio SS18-22 18" Signature Series DVC Subwoofer 2 Ohm per Coil

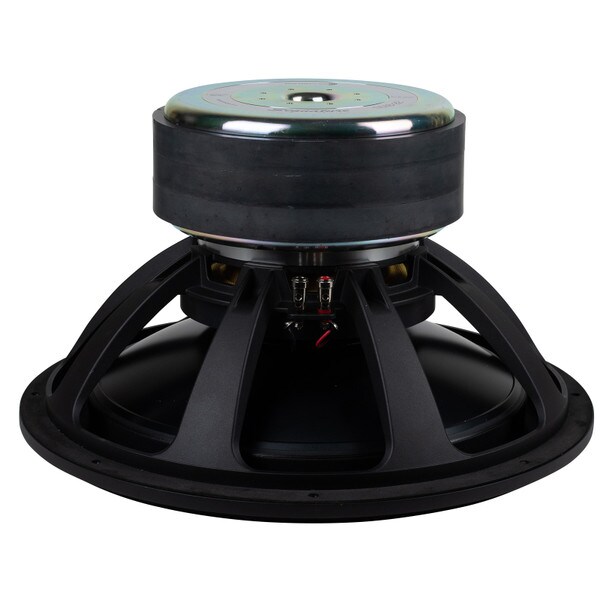

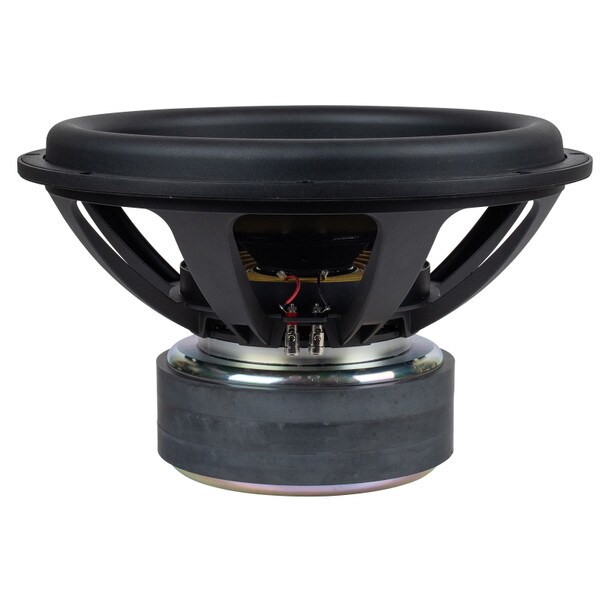

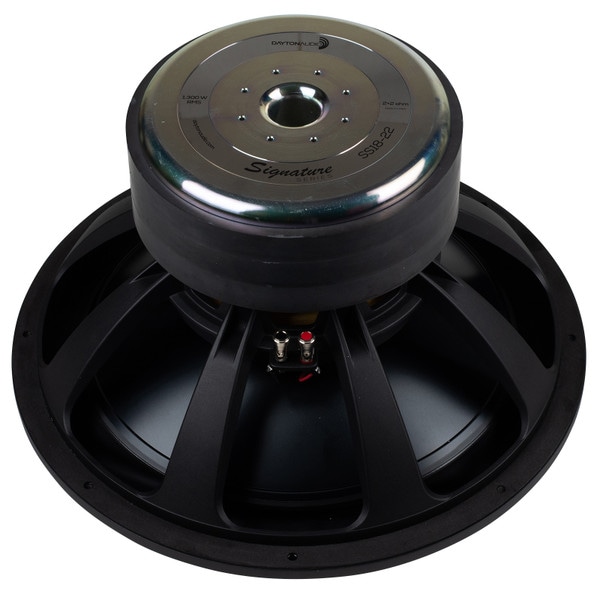

NEW Dayton Audio SS18-22 18" Signature Series DVC Subwoofer 2 Ohm per Coil

Dayton AudioPart # 295-736
Model: SS18-22

The Dayton Audio SS18-22 Signature Series 18" Subwoofer is built for incredible low-frequency performance and extension in high-output systems. Engineered to deliver deep, accurate bass at extreme sound pressure levels, this driver combines a rigid anodized aluminum cone, dual spider suspension, and a massive triple-stacked motor system for uncompromising precision and control. Its 3" 4-layer copper voice coil on a vented aluminum former provides exceptional thermal stability, allowing it to reliably handle up to 1,300 watts RMS without compression. With advanced motor linearization and extensive venting, the SS18-22 is a powerhouse subwoofer ideal for high-performance home theater or music subwoofer systems where maximum output, low distortion, and durability are essential.

Key Features

  • Rigid anodized aluminum cone with indexed edge for pistonic accuracy and reduced resonance
  • Aluminum shorting sleeve, ring, and pole cap ensure linear inductance and ultra-low distortion
  • FEA-optimized motor with triple-stacked magnets delivers exceptional strength and symmetry at high excursion
  • 3" 4-layer copper voice coil on a vented aluminum former for superior power handling and cooling
  • Extensive venting through cone, pole piece, spider, and gap minimizes compression during long sessions
  • Dual spider suspension with stitched tinsel leads for precise pistonic motion and extreme durability
Similar items that may interest you:
Dayton Audio UMII18-22 Ultimax II 18" DVC Subwoofer 2 Ohm Per Coil
Price: $349.98Part # 295-718
Dayton Audio RSS460HO-4 18" Reference Series HO Subwoofer 4 ohm
Price: $419.98Part # 295-472
See all items in Subwoofer Drivers
NEW $399.98
+ FREE SHIPPING
MSRP: $519.99
Save $120.01 (23%)
Bulk Pricing
Quantity:Qty: 1-3 $399.98/ea
Quantity:Qty: 4+ $379.98/ea
In Stock
Get Notified When Available

We'll send you an email when Dayton Audio SS18-22 18" Signature Series DVC Subwoofer 2 Ohm per Coil is back in stock or available for preorder.

Order in the next 2 hr 50 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio SS18-22 18" Signature Series DVC Subwoofer 2 Ohm per Coil

Dayton Audio SS18-22 18" Signature Series DVC Subwoofer

Designed for massive low-frequency output, the Dayton Audio SS18-22 Signature Series 18" Subwoofer is the ideal driver for high-power low distortion subwoofer systems. Capable of handling 1,300 watts RMS and delivering deep, controlled bass at extreme excursion, the SS18-22 is built for audiophiles that demand both high SPL and precision. Its combination of brute force and refined engineering ensures it delivers not only thunderous bass, but also the control and accuracy needed for music and cinematic applications.

Key Specs:

  • Nominal Diameter: 18"
  • Power Handling (RMS): 1,300W
  • Power Handling (MAX): 2,600W
  • Impedance: 2Ω + 2Ω (Dual voice coils)
  • Frequency Response: 20- 400Hz
  • Sensitivity: 90.8 dB 2.83V/1m
  • Voice Coil Diameter: 3"
  • Maximum Linear Excursion: ±26 mm
    • SS18-22 Spec Sheet

Rigid Cone, Maximum Control

The SS18-22 sets the standard for strength and precision with its thick anodized aluminum cone. This lightweight yet incredibly rigid diaphragm resists deformation under extreme displacement, ensuring clean pistonic movement even at maximum excursion. An indexed transition between cone and surround provides additional edge stiffness to resist deformation and minimize unwanted resonances. A high-roll butyl rubber surround complements the cone, optimized to allow extreme travel while maintaining more consistent effective cone area.

3" Voice Coil with Advanced Cooling

Powering the SS18-22 is a 3" diameter, 4-layer copper voice coil wound on a vented aluminum former. This design maximizes windings within the magnetic gap for stronger motor force while keeping the gap tight for precision. The heavy-duty aluminum former acts as a heat sink, drawing heat away from the coil to maintain thermal stability. Combined with extensive venting through the sub-cone, spider, pole piece, and voice coil gap, the SS18-22 resists power compression and handles an impressive 1,300 watts RMS with ease.

Optimized Motor for Low Distortion

At the heart of the driver is a massive, FEA-optimized, triple-stacked magnet assembly that generates a powerful and symmetrical magnetic field. This ensures identical forward and backward cone travel, minimizing distortion even at the limits of excursion. Precision-machined plates with sculpted edges maximize magnetic transfer, while an aluminum shorting ring, huge pole cap, and shorting sleeve work to linearize inductance across the entire stroke. The result is reduced distortion, tighter control, and extended output into the mid-bass and upper bass ranges.

Consistent Performance at High Excursion

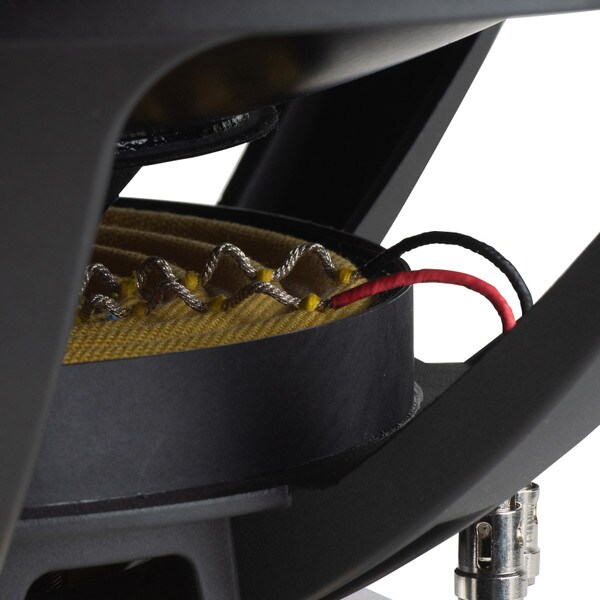

To guarantee linear cone movement and eliminate rocking, the SS18-22 employs a dual spider suspension spaced widely apart for maximum stability. Stitched tinsel leads integrated into the top spider enhance long-term durability and eliminate the risk of slapping against the cone or suspension during high-excursion operation. The combination of dual spiders and precision motor control ensures linear pistonic motion even when pushed to its limits.

Power, Control, Flexibility, and Reliability

With its uncompromising design, robust construction, and cutting-edge engineering, the Dayton Audio SS18-22 is a subwoofer built for enthusiasts and professionals who demand the very best in low-frequency performance. Whether used in a high output vented design or compact DSP assisted sealed system, it provides the power, accuracy, and durability needed to anchor any system with authoritative, room-shaking bass. The SS18-22 proudly represents the next level in Dayton Audio’s Signature Series—bringing together innovation and performance in one formidable driver.

Matching Passive Radiator Available

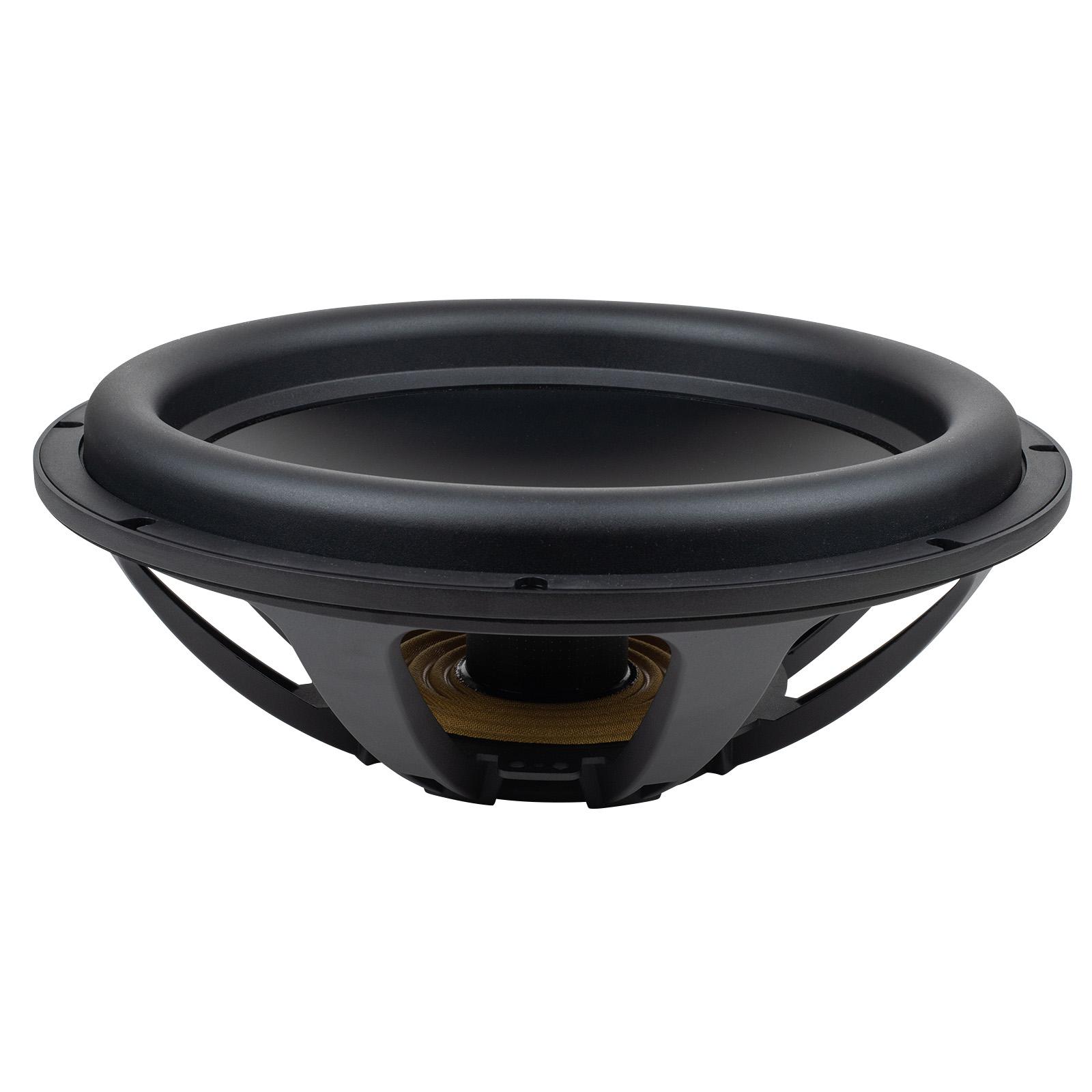

Matching passive radiators are available for all of the Signature Series subwoofers. For the flagship SS18-22, Dayton Audio offers the matching SS18-PR 18" high-displacement passive radiator, making it possible to achieve ground-shaking extension without resorting to giant ports that are difficult to implement in real-world cabinets. By using a passive radiator system, you will unlock the full potential of this 18" driver, delivering room-shaking bass with greater efficiency, zero turbulence, and uncompromising clarity.

SHOP SS18-PR SIGNATURE SERIES 18" PASSIVE RADIATOR

Explore All of the Signature Series Subwoofers


SS8-22

Nominal Diameter: 8"

Shop 8"

SS10-22

Nominal Diameter: 10"

Shop 10"

SS12-22

Nominal Diameter: 12"

Shop 12"

SS15-22

Nominal Diameter: 15"

Shop 15"

Note: The SS18-22 subwoofer is a dual voice coil driver with a 2-ohm impedance per coil. All parameters are measured with the voice coil wires in series, resulting in a single 4-ohm load.

Product Details

BrandDayton Audio
ModelSS18-22
Part Number295-736
UPC848791011184
Unit of MeasureEach
Weight45

Product Specifications

Nominal Diameter18"
Bolt Circle Diameter17.6
Power Handling (RMS)1300 Watts
Power Handling (MAX)2600 Watts
Impedance4Ω
Frequency Response20 - 400Hz
Sensitivity90.8dB 2.83V/1m
Voice Coil Diameter3"

Thiele-Small Parameters

Resonant Frequency (Fs)21Hz
DC Resistance (Re)5.3Ω
Voice Coil Inductance (Le)2.1mH
Mechanical Q (Qms)3.4
Electromagnetic Q (Qes)0.42
Total Q (Qts)0.37
Compliance Equivalent Volume (Vas)7.9ft³
Mechanical Compliance of Suspension (Cms)0.112mm/N
BL Product (BL)29.2T·m
Diaphragm Mass Inc. Airload (Mms)497g
Maximum Linear Excursion (Xmax)26mm
Surface Area of Cone (Sd)1188cm²

Materials of Construction

Cone MaterialAluminum
Surround MaterialRubber
Voice Coil Wire MaterialCCA
Voice Coil FormerAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter18.5"
Baffle Cutout Diameter16.8"
Depth10.25"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume2ft³
Sealed F346Hz
Vented Volume5ft³
Vented F326Hz
