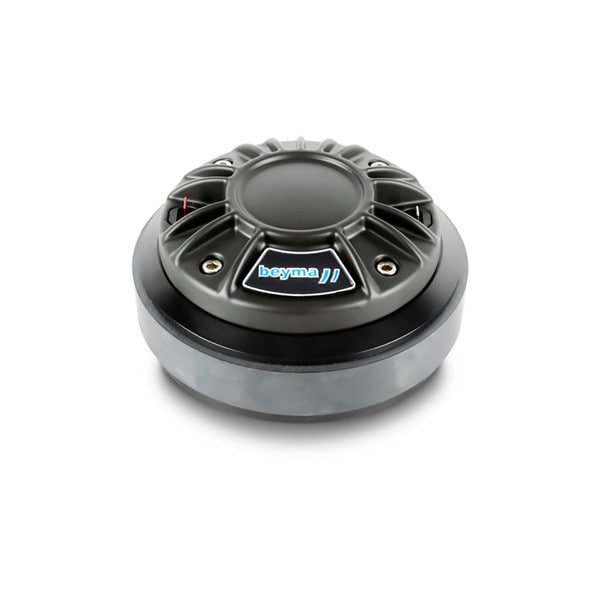

NEW Beyma CD-171Fe/PK 1" Neo Compression Driver 8 Ohm 2/3-Bolt

Beyma
Part #253-127

NEW Beyma CD-171Fe/PK 1" Neo Compression Driver 8 Ohm 2/3-Bolt

Beyma
Part #253-127
Model: CD-171Fe/PK

The Beyma CD-171Fe/PK is a next-generation 1" compression driver designed for professional audio systems requiring high power handling, extended frequency response, and low distortion. Its advanced design and proprietary technologies make it suitable for high-quality sound reinforcement systems, line arrays, and other demanding audio applications.

Key Features
  • Incorporates Deplocex technology for improved thermal dissipation and reduced power compression​
  • 1.75" copper-clad aluminum voice coil with Kapton former enhances durability​
  • High-temp polymer diaphragm and surround F.E.M. optimized for smooth, extended response with low resonances
  • Copper shorting cap reduces distortion, linearizes inductance, and increases output​
  • F.E.M.-optimized ceramic magnetic circuit enhances performance​
  • Aluminum cover provides structural integrity​
Similar items that may interest you:
See all items in Horn Drivers
NEW $114.75
+ FREE SHIPPING
MSRP: $153.00
Save $38.25 (25%)
Bulk Pricing

Back-Ordered

Expected back in stock any day
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Beyma CD-171Fe/PK 1" Neo Compression Driver 8 Ohm 2/3-Bolt

CD-171Fe/PK 1" Neo Compression Driver 8 Ohm 2/3-Bolt

The CD-171Fe/PK's substantial power handling and high sensitivity enable it to deliver clear and dynamic high-frequency output, making it ideal for demanding audio applications. The integration of Deplocex technology enhances thermal dissipation, reducing power compression and allowing for consistent performance during extended use. The 1.75" copper-clad aluminum voice coil with Kapton former provides durability and reliability under high-power conditions. The high-temperature polymer dome and surround design, optimized using finite element modeling (F.E.M.), offer a linear and extended frequency response with minimized resonances, resulting in a smooth and natural sound. The inclusion of a copper shorting cap reduces distortion, linearizes inductance, and increases output, further improving sound quality. The F.E.M.-optimized ceramic magnetic circuit enhances overall efficiency and performance, while the aluminum cover provides structural integrity. Designed for high-quality sound reinforcement systems and line arrays, this compression driver delivers exceptional performance for professional audio systems.

In high-performance audio applications, achieving the required magnetic force (Bl) and sound pressure levels (SPL) often involves using single-layer edgewound wire or double-layer round wire coils. However, the double-layer configuration has a drawback: one of the coil layers cannot dissipate heat as effectively as the other. Additionally, flat wire designs typically feature shorter magnetic gaps, which limit power handling and lead to power compression at lower voltages.

Beyma's DEPLOCEX technology addresses these challenges by maximizing the surface area of the coil and magnetic gap, enhancing heat dissipation through radiation while maintaining the same Bl and final SPL. This design improves thermal transmission along the entire coil length in contact with the iron.

As a result, coil temperature is reduced by 30%, minimizing the effects of power compression. This advancement enables high-frequency drivers to achieve over 15% more power.

Product Details

BrandBeyma
ModelCD-171Fe/PK
Part Number253-127
UPC8435469051577
Unit of MeasureEach
Weight5.3

Product Specifications

Diaphragm MaterialPolyester
Exit Diameter1"
Mounting Type2/3-Bolt
Power Handling (RMS)80 Watts
Impedance8Ω
