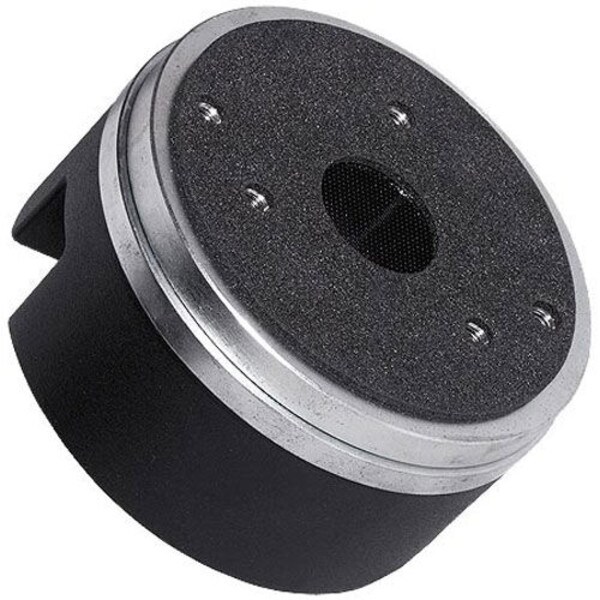

FaitalPRO HF10AK 1" Neodymium Compression Horn Driver 8 Ohm 2/3-Bolt

FaitalPROPart # 294-1011
Model: HF10AK
Choose the HF10AK 1" compression driver from FaitalPRO for upgrading your professional audio speaker cabinet. A 2/3-bolt pattern makes for easy attachment to most all 1" horns and waveguides, and a ketone polymer diaphragm creates smooth sound.

Key Features

  • Ketone polymer dome diaphragm for smooth output from 1 kHz to 20 kHz
  • 2/3-bolt mounting pattern with M6 threads
  • Lightweight neodymium ring motor and 110 dB average sensitivity
  • Large voice coil diameter for increased power handling
  • Annular phase plug
  • Made in Italy
Similar items that may interest you:
Beyma CD-171Fe/PK 1" Compression Driver 8 Ohm 2/3-Bolt
Price: $114.75Part # 253-127
See all items in Horn Drivers
Your Price: $307.00
+ FREE SHIPPING
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when FaitalPRO HF10AK 1" Neodymium Compression Horn Driver 8 Ohm 2/3-Bolt is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

FaitalPRO HF10AK 1" Neodymium Compression Horn Driver 8 Ohm 2/3-Bolt

FaitalPRO's HF10AK 1" horn compression driver features a ketone polymer dome diaphragm for smooth sound that extends from 1,000 Hz up to 20,000 Hz. Built with an annular phase plug.

A high energy, lightweight neodymium motor helps the HF10AK to produce output up to 112 dB (1W/1m), with an overall average sensitivity of 110 dB. The 8 ohm impedance makes FaitalPRO's HF10AK a great choice for line arrays, where multiples are use together. For higher power handling, a larger 1.73" voice coil is used. Made in Italy.

Specifications: • Power handling: 60 watts RMS with recommended crossover of 1,300 Hz, 12 dB/octave slope • VCdia: 1.73" • Impedance: 8 ohms • Frequency response: 1,000-20,000 Hz • SPL: 110 dB 1W/1m • Dimensions: 4.02" diameter x 2.13" depth • Bolt pattern: 2/3 x M6 • Weight: 3.09 lbs.

Product Details

BrandFaitalPRO
ModelHF10AK
Part Number294-1011
UPC848864011301
Unit of MeasureEach
Weight3.5

Product Specifications

Diaphragm MaterialPoly / Mylar
Exit Diameter1"
Mounting Type2-Bolt/3-Bolt
Power Handling (RMS)60 Watts
Impedance8Ω
