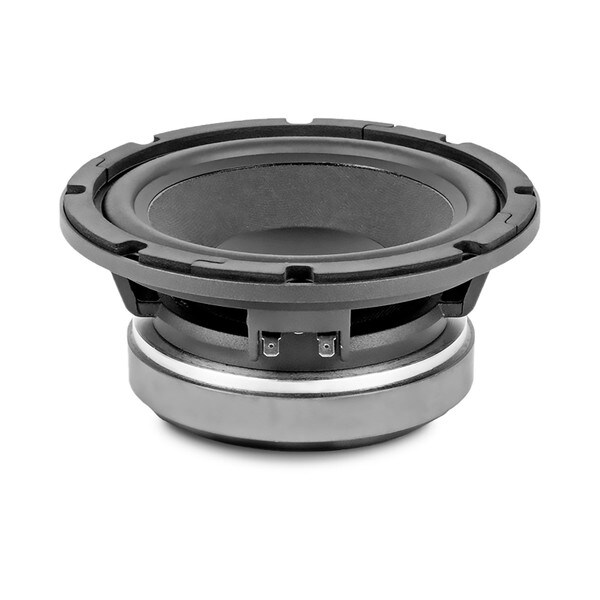

NEW Beyma 8P300Fe/N P200 Series 8" Midbass Woofer 8 Ohm

Beyma
Part #253-036

NEW Beyma 8P300Fe/N P200 Series 8" Midbass Woofer 8 Ohm

Beyma
Part #253-036
Model: 8P300Fe/N

The Beyma 8P300Fe/N is an 8" low-frequency transducer designed for professional audio applications requiring robust performance and durability. Its advanced design features make it suitable for bass and mid-bass applications in compact enclosures.

Key Features
  • Copper shorting cap reduces harmonic distortion​
  • ±6 mm Xmax allows for extended linear excursion​
  • 24 mm peak-to-peak excursion before damage ensures mechanical reliability​
  • Weatherproof carbon fiber loaded paper cone with Santoprene surround for increased durability​
  • CONEX spider enhances mechanical stability​
  • 2.5" copper voice coil enhances thermal stability​
  • Designed for bass and mid-bass applications in compact enclosures​
NEW $129.75
+ FREE SHIPPING
MSRP: $173.00
Save $43.25 (25%)
Bulk Pricing

Back-Ordered

Expected back in stock any day
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Beyma 8P300Fe/N P200 Series 8" Midbass Woofer 8 Ohm

8P300Fe/N P200 Series 8" Midbass Woofer 8 Ohm

The 8P300Fe/N's 300 W AES power handling and 94 dB sensitivity enable it to deliver clear and dynamic sound output, making it suitable for demanding audio applications. Its 2.5" copper voice coil enhances thermal stability, contributing to consistent performance over time. The inclusion of a copper shorting cap reduces harmonic distortion, resulting in cleaner sound reproduction. The driver features an Xmax of ±6 mm, allowing for extended linear cone movement and deeper bass response without distortion. With a peak-to-peak excursion before damage of 24 mm, the 8P300Fe/N can withstand significant mechanical stress, ensuring longevity even under high-demand conditions. The weatherproof carbon fiber loaded paper cone, combined with a Santoprene surround, enhances durability and resistance to environmental factors, making it suitable for both indoor and outdoor applications. The CONEX spider further enhances mechanical stability, maintaining consistent performance. Designed for bass and mid-bass applications in compact enclosures, this transducer offers versatility and high performance for professional audio setups.​

Product Details

BrandBeyma
Model8P300Fe/N
Part Number253-036
UPC8435469042131
Unit of MeasureEach
Weight9.4

Product Specifications

Nominal Diameter8"
Bolt Circle Diameter7.8
Power Handling (RMS)300 Watts
Power Handling (MAX)600 Watts
Impedance8Ω
Frequency Response60 to 7,000Hz
Sensitivity94dB 2.83V/1m
Voice Coil Diameter2.5"

Thiele-Small Parameters

Resonant Frequency (Fs)53Hz
DC Resistance (Re)5.2Ω
Voice Coil Inductance (Le)0.4mH
Mechanical Q (Qms)14.3
Electromagnetic Q (Qes)0.32
Total Q (Qts)0.31
Compliance Equivalent Volume (Vas)0.88ft³
Mechanical Compliance of Suspension (Cms)362mm/N
BL Product (BL)11.6T·m
Diaphragm Mass Inc. Airload (Mms)0.025g
Maximum Linear Excursion (Xmax)6mm
Surface Area of Cone (Sd)0.022cm²

Materials of Construction

Cone MaterialCarbon Fiber
Surround MaterialSantoprene®
Voice Coil Wire MaterialCopper

Mounting Information

Overall Outside Diameter8.3"
Baffle Cutout Diameter7.1"
Depth3.8"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.126ft³
Sealed F3144Hz
Vented Volume0.293ft³
Vented F386.92Hz
